CUBICON Style Plus-A15 Series User Manual
Inspection
It is a function to show the abnormalities to a user through the self-test of various
sensors/heater/filter/operating parts that are attached on the device.
The self-test starts when the Start button is pressed.

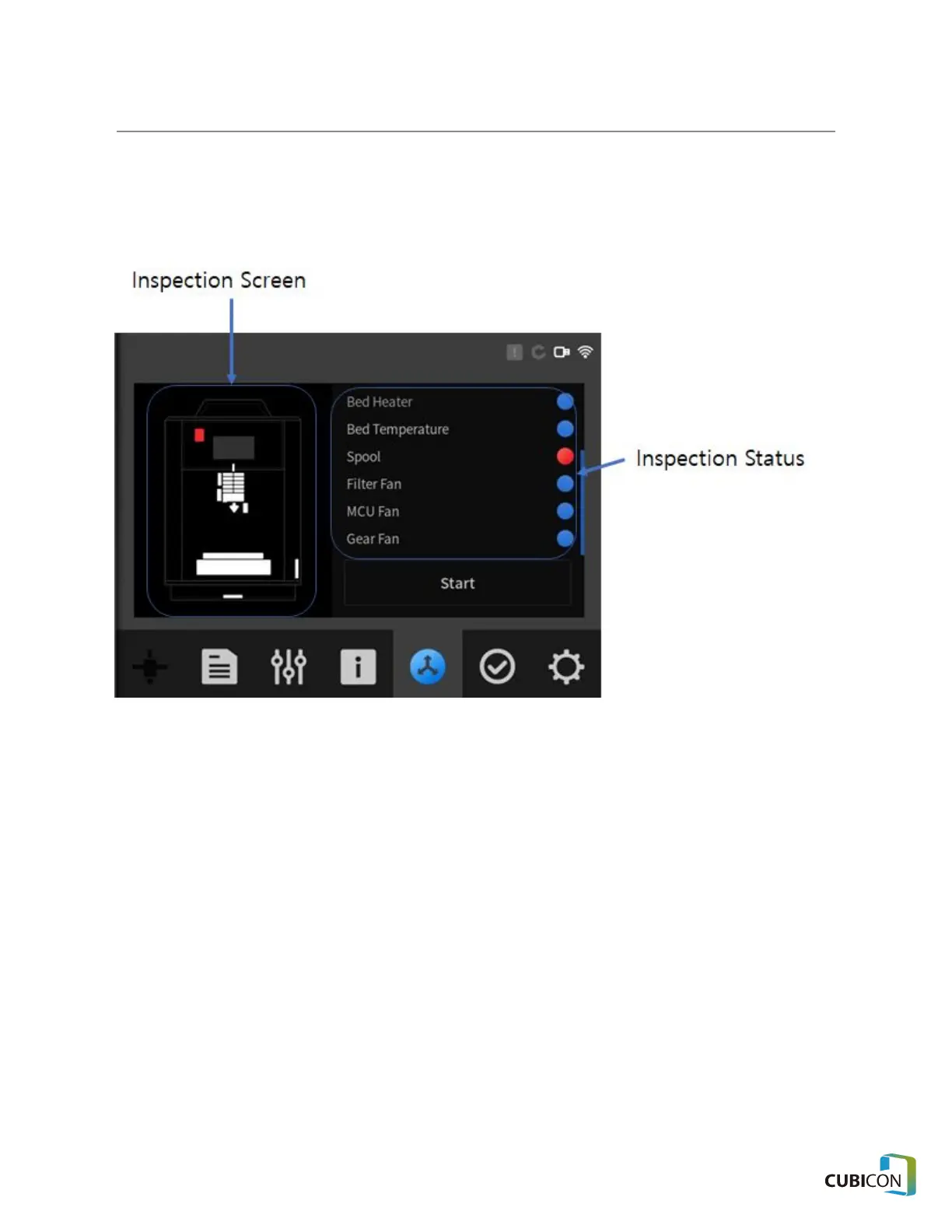

● Inspection Screen: The device inspection status and the result are shown through UI.
If there is abnormality, the abnormal part would be displayed in red as shown in the picture.
● Inspection Status: The detail of the inspection screen on the left is displayed in detail with the
names of the related part.
Ones without a problem from the inspection are marked ‘PASS’ in blue color, and ones with a
problem from the inspection are marked ‘FAIL’ in red color.
38
