CUDA 2412 - Detail Brush and Flow Regulator; Automatic Oil Skimmer System

Cuda 2412 • 8.914-384.0 • Rev. 5/12
OPERATOR’S MANUAL
AUTOMATIC PARTS WASHER
12
Using the Power Brush
WARNING: Particles dislodged by the power brush
could cause serious injury to your eyes. Always
wear approved eye protection when using the
power brush.
With stiff stainless steel bristles turning at 1800 RPM,
the power brush easily removes carbon deposits, old
gasket material, or other tightly-adhered materials from
parts before washing.
To turn on the power brush, position the air flow select
valve appropriately, then push the power brush lever
lock forward with your thumb and squeeze the throttle
lever to control the speed of the brush.

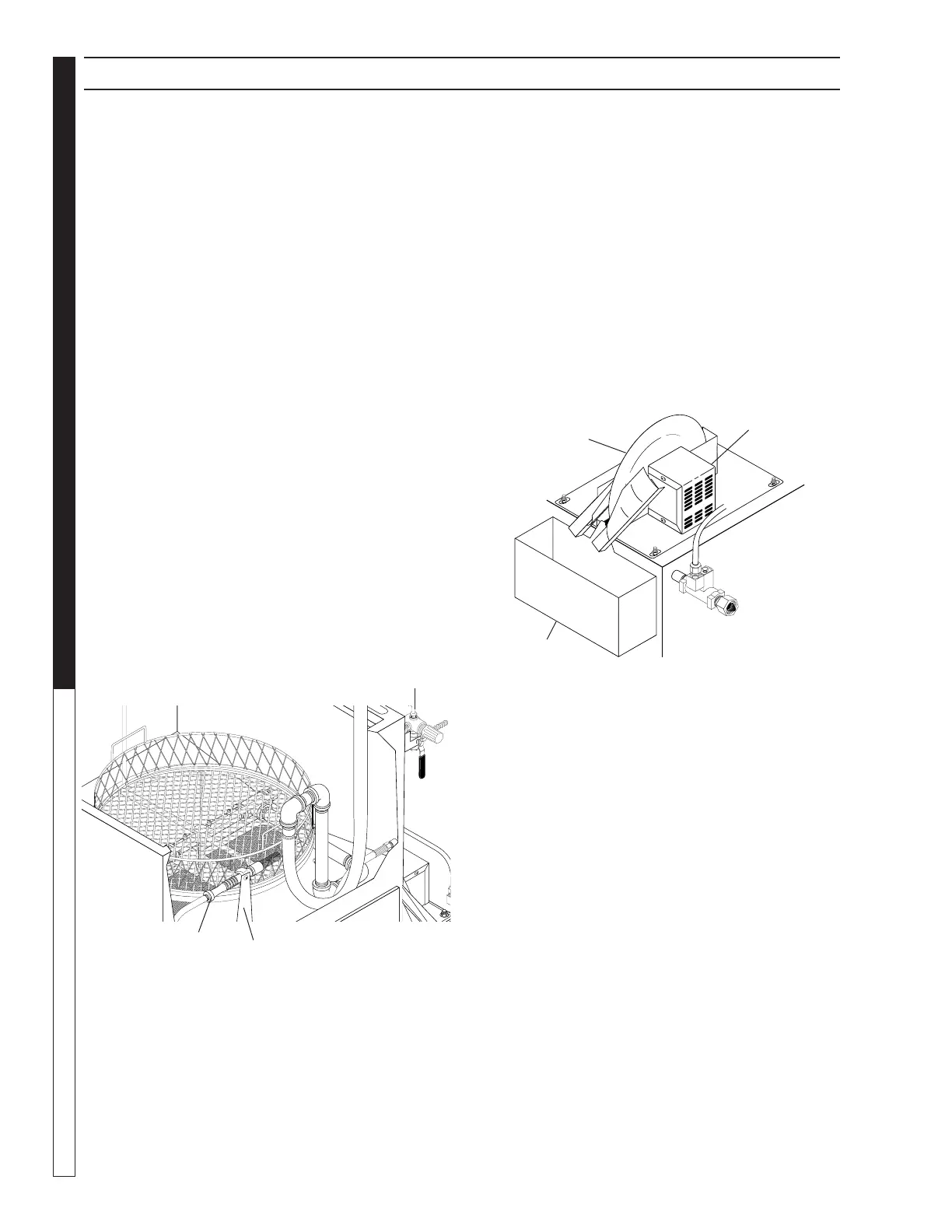

Detail Brush and Flow Regulator
(Optional)
The detail brush is located on the front inside wall of the
wash chamber. The flow regulator is located on the right
rear corner of the machine (See Following Figure). The
detail brush uses a continuous flow of hot cleaning solu-
tion through its nylon bristles to help you clean delicate
or lightly soiled parts. The flow regulator controls the
flow of cleaning solution through the detail brush.
WARNING: Hot, high-pressured cleaning solution
could cause serious injury. Always wear rubber
gloves and approved eye protection when handling
hot cleaning solution.
Adjusting the Flow of Cleaning Solution
The flow of cleaning solution through the detail brush is
pre-set at the factory. If you need to adjust the flow, pull
out the flow regulator knob, then rotate it clockwise to
decrease the flow or counter-clockwise to increase the
flow. After adjusting, push the knob back in to lock it.
SECTION 3: OPERATION
NOTE: The detail brush is available as an option on
this machine. For ordering information, contact your
distributor or call customer service.
Automatic Oil Skimmer System
The automatic oil skimmer system consists of a
skimmer assembly that includes an electric motor
that rotates a disk in the sump water. The oil
adheres to the disk and is wiped off by wiper blades
and deposited in a container. The gear motor is
controlled by a timer switch on the control panel. See
information in Section 5 for detailed operation.
Skimmer
Disc
Skimmer
Motor
Skimmer
Collection
Container
Tank Wall
Flow
Regulator
Detail
Brush
