CUDA 2412 - Oil Skimmer Exploded View

Cuda 2412 • 8.914-384.0 • Rev. 5/12
35
AUTOMATIC PARTS WASHER
OPERATOR’S MANUAL

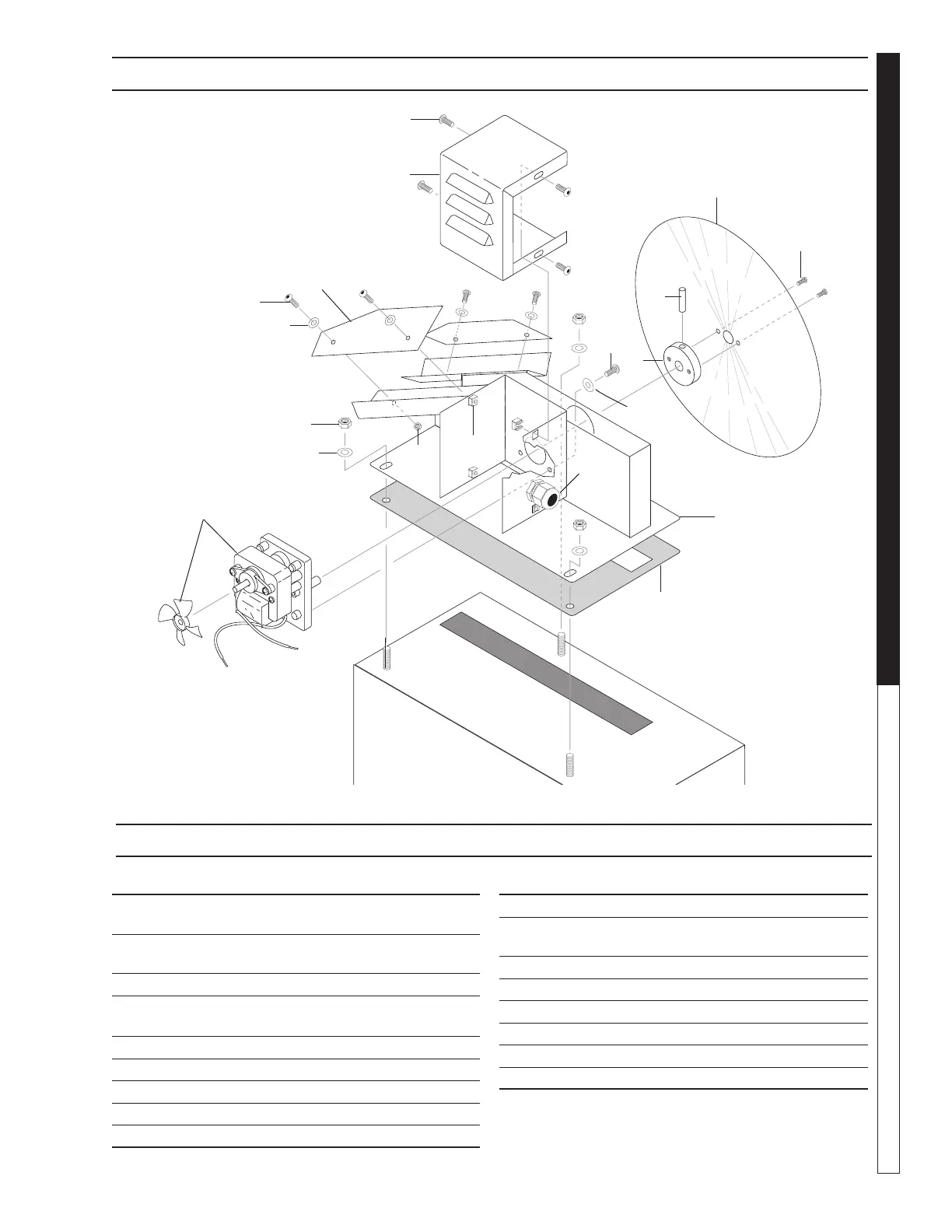

OIL SKIMMER - EXPLODED VIEW
ITEM PART NO. DESCRIPTION QTY
 1 8.718-813.0 Screw,10/32"x1/2" 
BH, SOC, SS 11
2 8.913-733.0 Cover, Motor, Disc
Skimmer SS 1
 3 8.718-968.0 Washer#10FlatZincPLT 4
4 9.804-102.0 Blade, Wiper, Disc Skimmer
SS 2
5 9.802-773.0 Nut, 5/16 ESNA 3
6 8.918-672.0 Disc, Skimmer SS 1
 7 9.802-791.0 Nut,Cage,10/32"x16Ga. 4
8 9.802-514.0 Strain Relief, STRT, LQ Tite 1
9 9.804-564.0 Screw, 6-22 x 12 2
ITEM PART NO. DESCRIPTION QTY
10 8.904-676.0 Motor, Disc Skimmer 1
11 8.719.987.0 Hub, Disc Mount, Disc
Skimmer 1
 12 8.719-068.0 Pin,Roll1/8"x1"Steel 1
13 9.804-137.0 Gasket, Skimmer Base 1
14 9.802-802.0 Washer, 1/4 Flat 3
15 8.913-732.0 Oil Skimmer, Small 1
 16 8.718-568.0 Washer,1/4"Sealing 3
17 9.804-567.0 Nut, 10/32 ESNA 4
OIL SKIMMER PARTS LIST
10
5
1
4
2
1
7
8
11
12
9
6
15
17
1
16
14
13
3
