CUDA 2412 - Filter Option Exploded View

Cuda 2412 • 8.914-384.0 • Rev. 5/12
OPERATOR’S MANUAL
AUTOMATIC PARTS WASHER
34

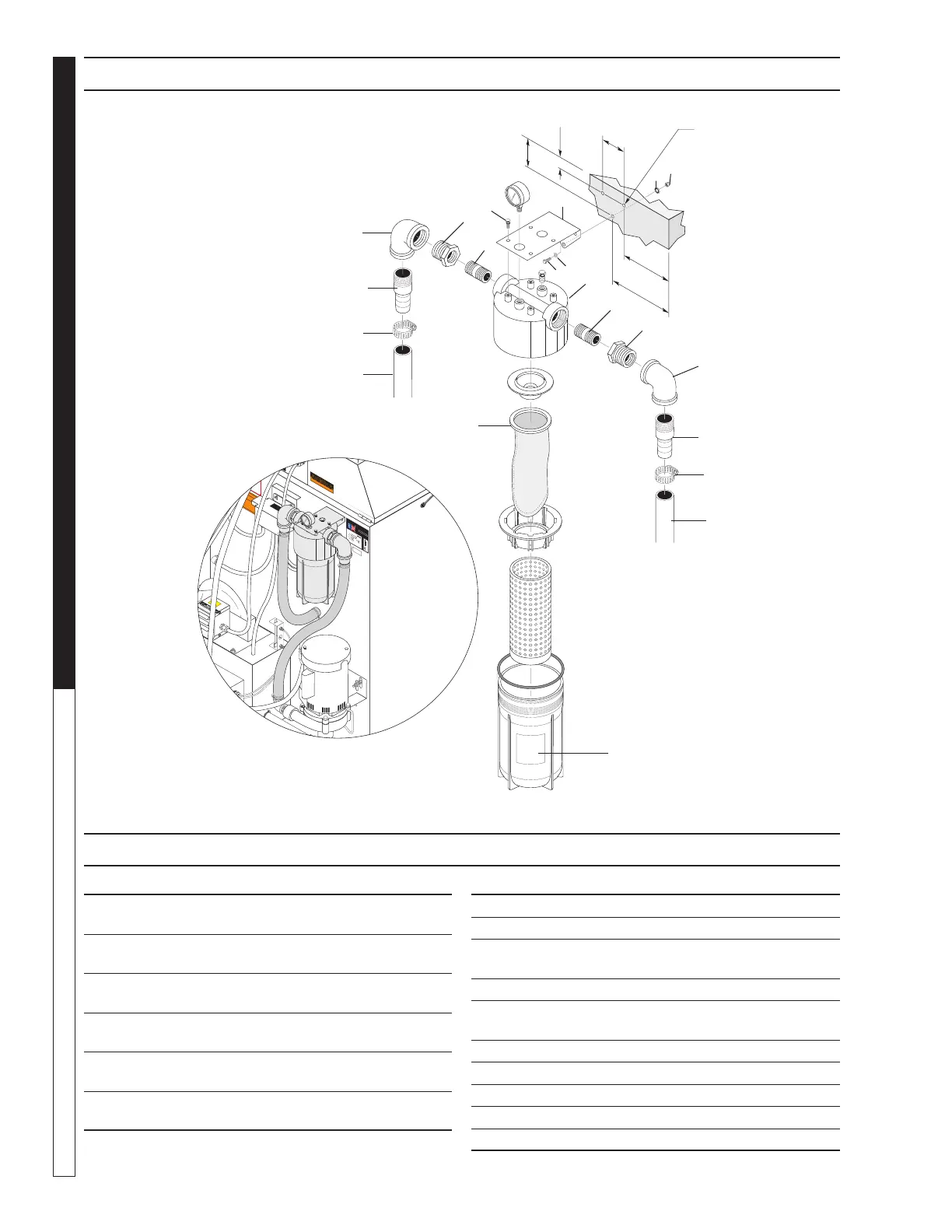

FILTER OPTION 8.725-269.0 - EXPLODED VIEW
FILTER OPTION - EXPLODED VIEW PARTS LIST
DANGER
HIGH VOLTAGE
WARNING
Assembled in USA
Contains components from one or more of
the following countries: United States,
Austria, Brazil, Canada, China, England,
France, Honduras, Italy , Japan, Mexico,
Romania, Taiwan, Thailand, Vietnam.
INTENDED FOR INDOOR USE
HOUR METER
KEEP
DRY
89143840-19
ITEM PART NO. DESCRIPTION QTY
 1 8.724-071.0 FilterHousing4"x10"W/PSI
Gauge 1
 2 8.724-073.0 Bag,Filter,4"x10",Polyester
Mesh, 200 MIC 1
 3 8.724-081.0 Nipple,1"x2-1/2"
Sch40 Galv 2
 4 8.706-048.0 Bushing,Pipe1-1/4"x1"NPT
Galv 2
 5 8.706-198.0 Elbow,1-1/4"Female,90°
Galv 2
 6 8.706-341.0 Pipe,BarbedMaleNPT1-1/4"
Galv 2
ITEM PART NO. DESCRIPTION QTY
 7 8.724-082.0 Hose,1-14"x25"200PSI 1
8 8.709-081.0 Clamp, Screw #28 4
 9 9.804-244.0 Hose,1-1/4"x14-1/2"
200 PSI 1
10 8.930-052.0 Bracket, Filter 2412 1
 11 8.724-083.0 Bolt,Tri-Round,HexZinc,
5/16-18 x 3/4 4
 12 9.802-700.0 Bolt,1/4"x3/4",NC 3
 13 9.802-802.0 Washer,1/4",Flat 3
 14 8.718-568.0 Washer,1/4",Sealing 3
 15 9.802-773.0 Nut,1/4"ESNA 3
16 8.904-658.0 Decal, Caution Filter Pressure 1
15
14
10
13
12
1
3
4
5
6
2
9
11
8
7
2.625"
.625"
3.0"
0.313"
Dia
(3 Places)
5.75"
7.25"
16
8
6
5
4
3
