40 Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual
Chapter 3 • Installing the Drivers and Setting Up the Device
To connect the INLINE™ 7 to your PC using Mini Access Point Mode:
1 Connect the DB26 female end of the appropriate adapter cable to the con-
nector on the top of the INLINE™ 7.
2 Attach the other end of the adapter cable (i.e., the Deutsch connector end) to
the
vehicle’s diagnostic connector.
NOTE:
i The vehicle’s diagnostic connector is typically located under the dash-
board on the driver’s side, or beside the driver’s seat. It can also be
located in the engine compartment, near the electronic control unit (ECU).
At this point, the Power LED (green) on the INLINE™ 7 should be illumi-
nated (On).
If the Power LED is not
illuminated, turn the vehicle’s key to the ON posi-
tion, leaving the engine Off.
3 Press and hold the Re
set Button for about ten (10) seconds to switch from
Bluetooth Mode (the factory default) to Mini Access Point Mode.
All of the LEDs on the device will flash momentarily to
indicate that the
device has been reconfigured. Once the connection is complete, the
Wireless LED will display white to indicate Wi-Fi Mini Access Point Mode.
NOTE:
i See Device Features in Chapter 2 of this manual for a detailed discussion
of the Reset Button.
4 Navigate to the System Tray on your PC.

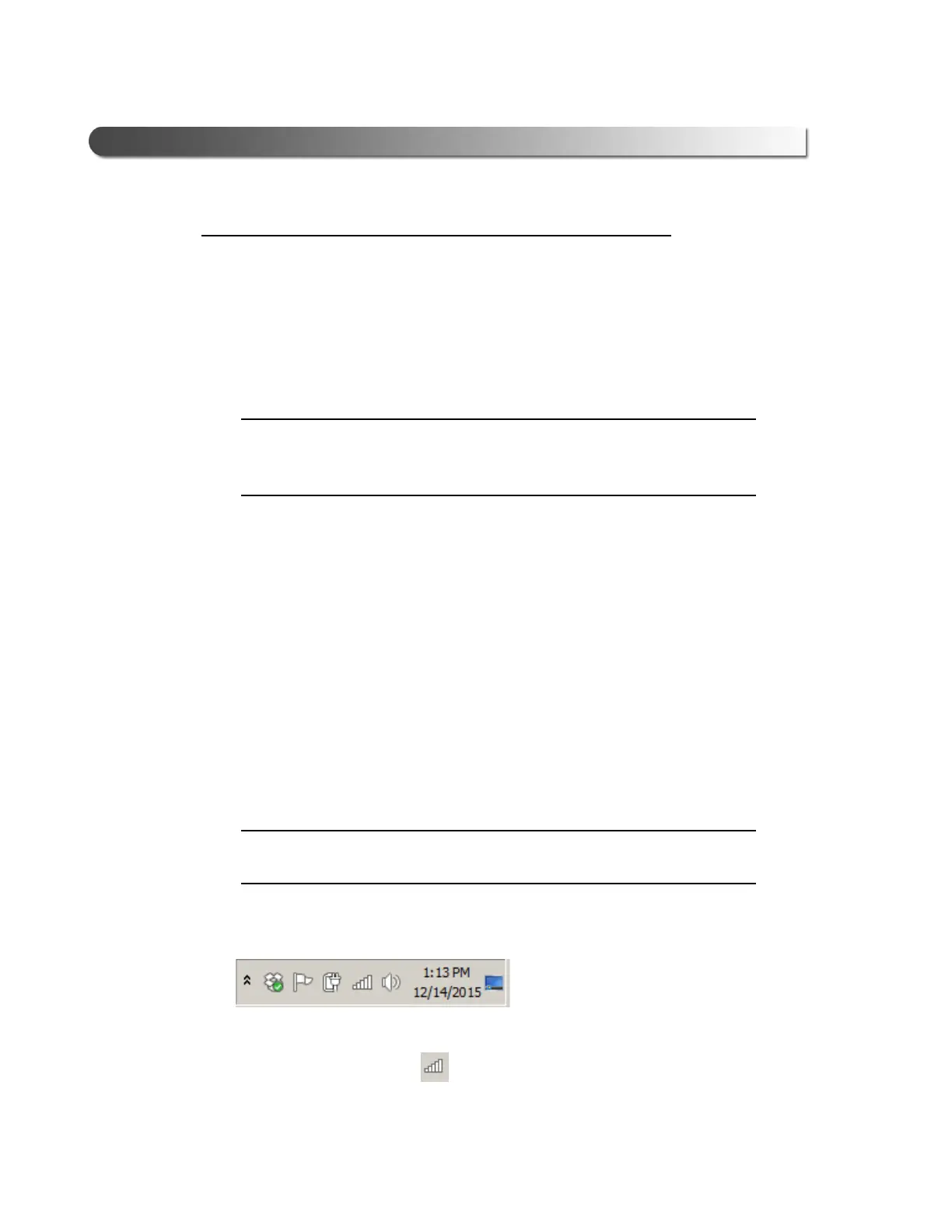

Figure 3.16 Windows
®
System Tray
5 Click on the Network icon in the System Tray.
