- Step 2: Connect the INLINE™ 7 to a Vehicle
Cummins INLINE™ 7 Data Link Adapter Installation and Setup Manual 43
Infrastructure Mode
In Infrastructure mode, your PC communicates with your company’s computer
network through a Wireless Access Point (not included), which acts as a bridge
between the wireless network and the wired network. In this mode, the INLINE™
7 is conf
igured to communicate with the same access point. All communication
between
the PC and the INLINE™ 7 passes through the access point.

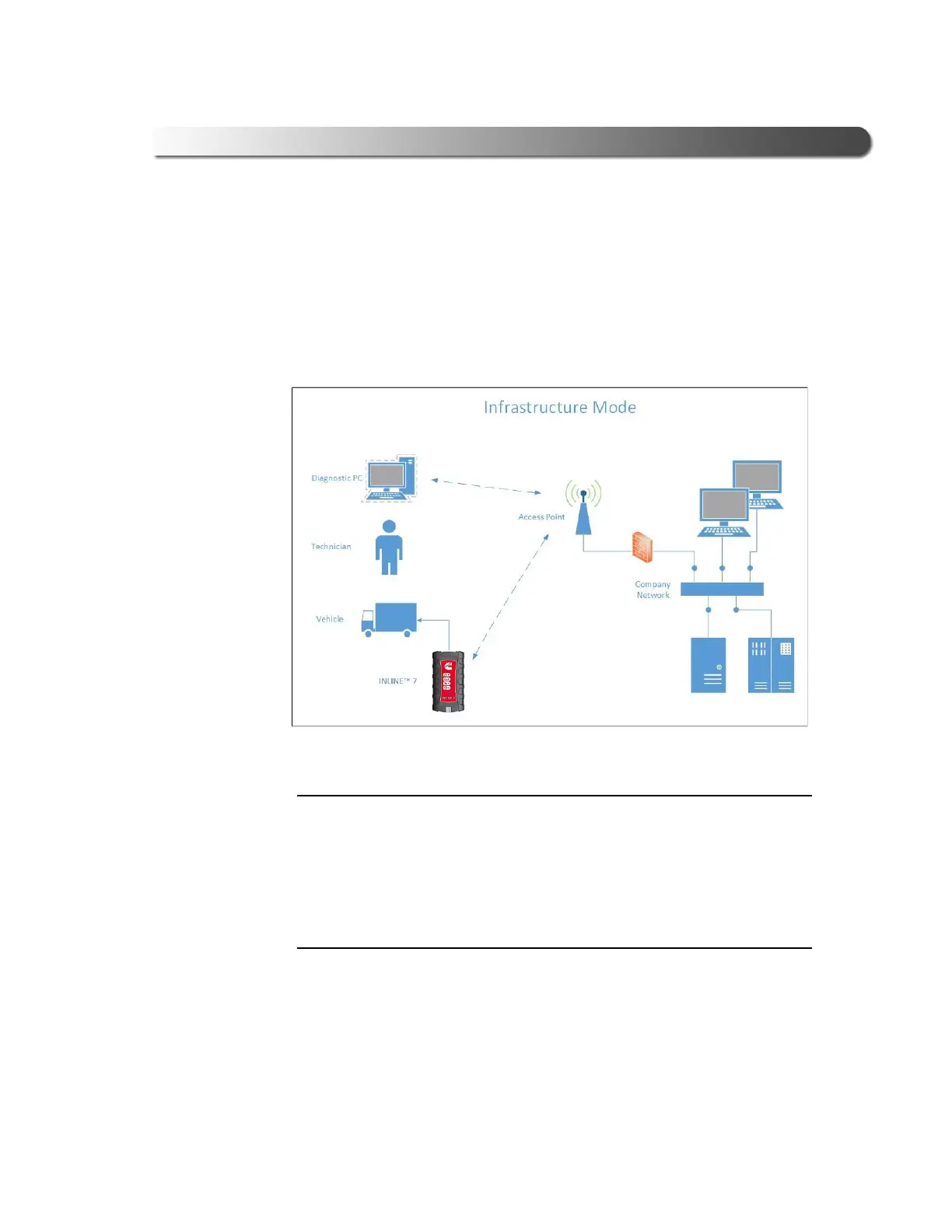

Figure 3.20 Infrastructure Mode
i The settings for connecting to your company network may differ from one
installation to another. To ensure network security
, your Information Tech-
nology (IT) administrator will need to overse
e the installation and specify
the appropriate configuration parameters. Your IT administrator should be
able to
properly configure the INLINE™ 7 for infrastructure mode, using
the Cummins INLINE™ 7 Explorer utility (see Switching Modes: Mini
Access Point and Infrastructure on page 51 of this manual).
