Step 3: Test the Connection
You use the Cummins Communication Validation Tool to test the connection
between the INLINE™ 7 and the vehicle. At startup, the Communication Valida-
tion Tool checks for any INLINE™ 7 drivers
installed on the PC.
To test the connection between the INLINE™ 7 and the vehicle:
1 Click Start and then select All Programs

Cummins

INLINE 7

CumminsValidationTool.
The application is started and the Communi
cation Validation Tool screen
is displayed.

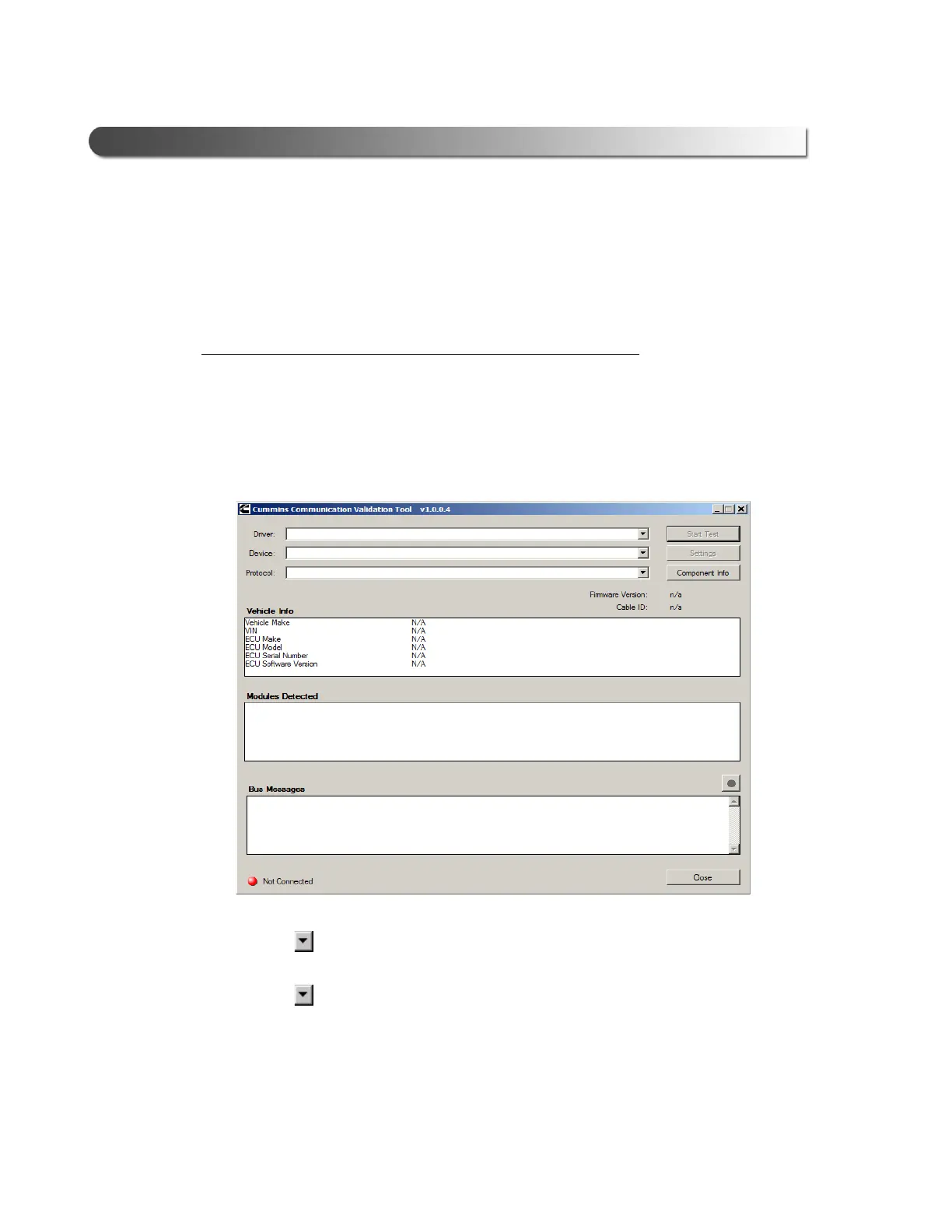

Figure 3.21 Communication Validation Tool: Status Not Connected
2 Use the
button in the Driver box to select the appropriate driver (i.e.,
INLINE7 - CIL7R32).
3 Use the
button in the Device box to select the appropriate device (for
example, INLINE7, Bluetooth).
—The Device
b
ox lists all the devices supported by the INLINE™ 7 drivers
installed on the PC.
