Current Tools Omni 747 - 1;2-1-1;4 Bending Shoe Component Diagrams; 1-1;2-2 Bending Shoe Component Diagrams

ITEM # QTY DESCRIPTION PART #
135 ......................... 2 ............................................. DRIVE STUD ............................................2-1304
136 ......................... 2 ............................... SCREW-CAP,SOC 1/2-13 X 1" ............................ 2-2202-2
137 ......................... 2 .................................... SHOE STUD ADAPTER ..................................747-930
138 ......................... 1 .................. SHOE CASTING -1/2"-1-1/4" EMT/IMC/RIGID .............. 2-2201-957
139 ......................... 1 ................................ HOOK-1/2"-1-1/4" RIGID/IMC ...............................2-2202
140 ......................... 8 .......................... SCREW-CAP,SOCKET 3/8-16 X 1.25 ..........................99-59
141 ......................... 1 .....................................HOOK-1/2"-1-1/4" EMT .................................... 2-2203
152 ......................... 1 ............................................. STEEL RING ...........................................747-991
153 ......................... 3 ................... SCREW, BUTTON HD. SKT. – 1/4 - 20 X 1/2" ...................99-74

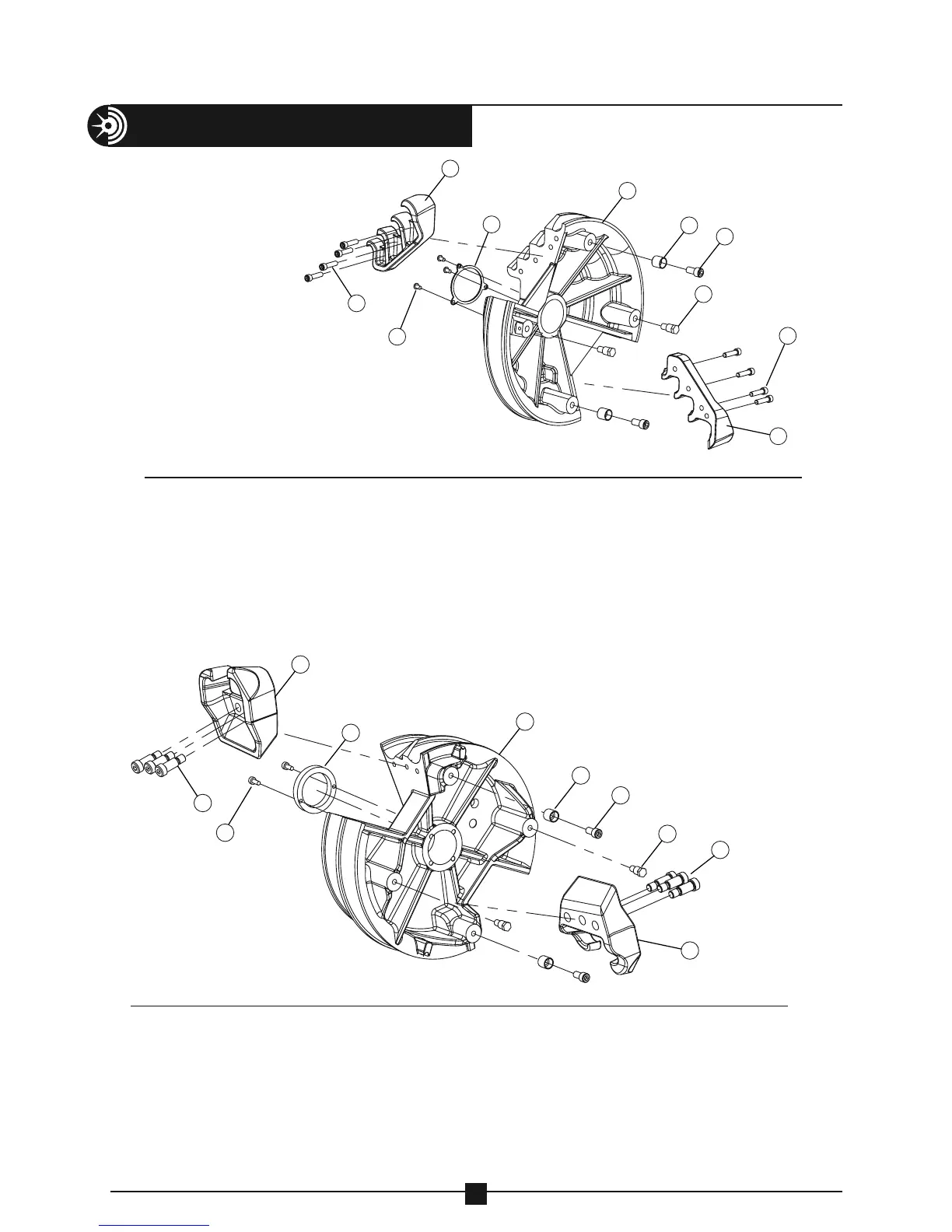

EXPLODED VIEWS
44
137
136
135
138
139
140
141
142
143
144
137
136
135
145
140
144
154
155
152
153
2-2201
1
⁄2" to 1
1
⁄4"
Bending Shoe Assembly
for EMT/IMC/RIGID
137
136
135
138
139
140
141
142
143
144
137
136
135
145
140
144
154
155
152
153
2-2301 1
1
⁄2" to 2" Bending Shoe Assembly for EMT/IMC/RIGID
ITEM # QTY DESCRIPTION PART #
135 ......................... 2 ............................................. DRIVE STUD ............................................2-1304
136 ......................... 2 ............................... SCREW-CAP,SOC 1/2-13 X 1" ............................ 2-2202-2
137 ......................... 2 .................................... SHOE STUD ADAPTER ..................................747-930
142 ......................... 1 ...................... SHOE CASTING 1
1
⁄2"-2" EMT/IMC/RIGID ................. 2-2301-839
143 ......................... 1 ................................... HOOK-1
1
⁄2"-2" RIGID/IMC ..................................2-2302
144 ......................... 6 .....................SCREW-SHOULDER,SOCKET 3/4 X 1 1/2" .................. 2-2301-2
145 ......................... 1 ........................................ HOOK-1
1
⁄2"-2" EMT .......................................2-2303
154 ......................... 1 ............................................. STEEL RING ...........................................747-992
155 ......................... 2 ........................ SCREW, SKT. HD. CAP - 1/4-20 X 3/4" .......................747-41
