Current Tools Omni 747 - PVC Coated Bending Shoe Component Diagrams; PVC Coated Roller Support Component Diagrams

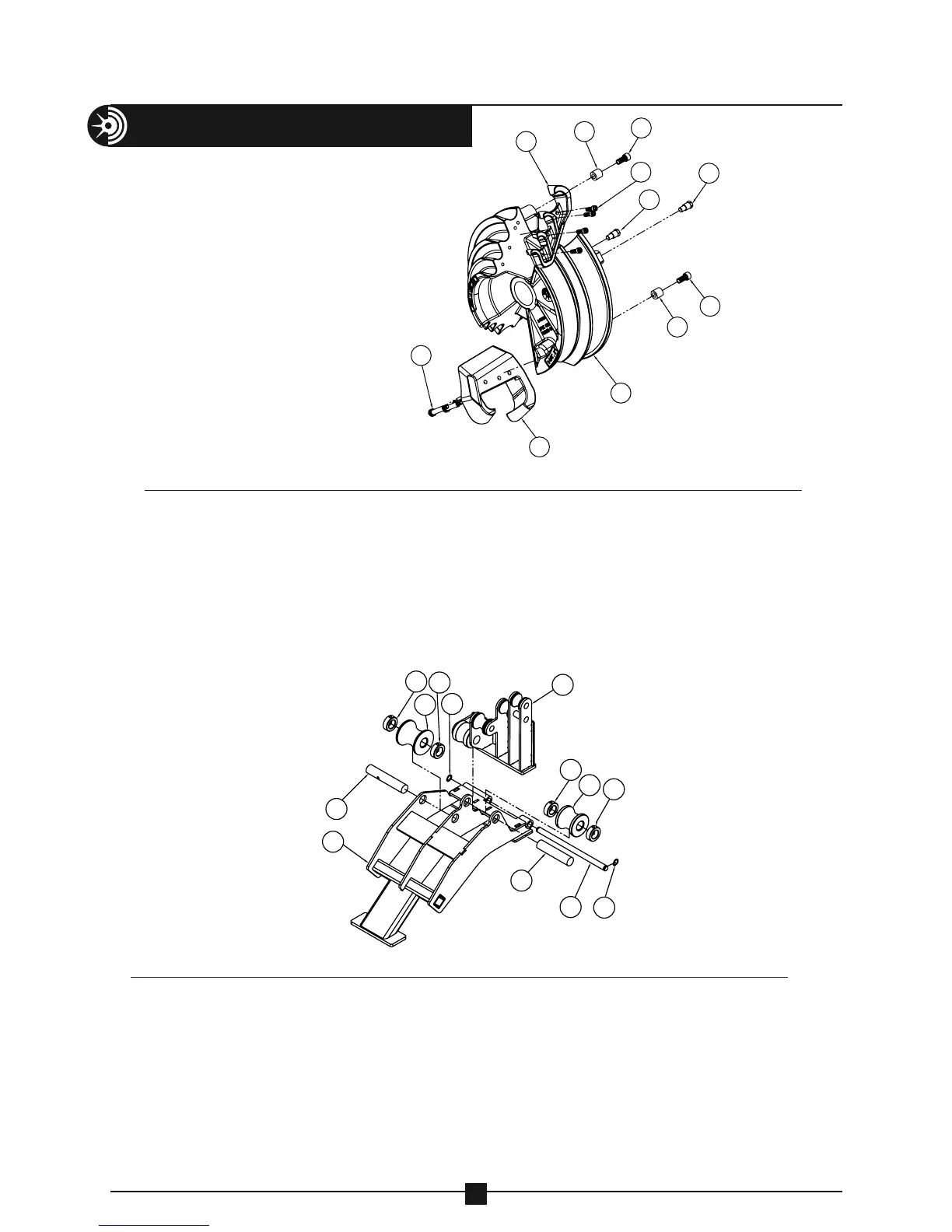

EXPLODED VIEWS
45
2-3200-7
1
⁄2" to 2"
Bending Shoe Assembly
for PVC Coated
Rigid Conduit
2-4300-7
1
⁄2" to 2"
Roller Support
Assembly for PVC Coated
Rigid Conduit
ITEM # QTY DESCRIPTION PART #
159 ......................... 1 ....................................... ROLLER – 1.5" PVC ..................................... 2-1005A
160 ......................... 1 ...........................................2' ROLLER PVC ........................................ 2-1005B
161 ......................... 1 ............................................... PIVOT PIN ..............................................2-1106
162 ......................... 4 ......................... .75" ID COLLAR, 1.50"–2.00" ROLLER ....................2-4000-001
163 ......................... 2 ..................................... 7/16" RETAINER RING ................................ 2-4000-123
164 ......................... 1 ............................ .50"–1.25" ROLLER, WELDMENT ..................... 2-4300-7-104
165 ......................... 1 ........................................75" PIN, 3.5" LONG ................................ 2-4300-7-121
166 ......................... 1 .................................... .438" X 6.6" HINGE PIN ............................. 2-4300-7-125
167 ......................... 1 .....................1 1/2"–2" ROLLER SUPPORT WELDMENT .............. 2-4300-7-126
ITEM # QTY DESCRIPTION PART #
135 ......................... 2 ......................................... STUD – BENDER ........................................2-1304
136 ......................... 2 .................... SCREW – SOCKET HEAD CAP (1/2-13 X 1) ................. 2-2202-2
144 ......................... 3 ................... SCREW – SHOULDER SOCKET (3/4 X 1 1/2) ................ 2-2301-2
168 ......................... 1 ........................... SHOE – MACHINED 1/2" – 2" PVC ....................... 2-3200-102
169 ......................... 1 ......................... HOOK – MACHINED 1/2" – 1.25" PVC ........................2-3202
170 ......................... 1 ........................... HOOK – MACHINED 1.5" – 2" PVC ..........................2-3203
137 ......................... 2 .................................... SHOE STUD ADAPTER ..................................747-930
140 ......................... 4 .................................... 3/8-16 X 1 1/4 LG SHCS ....................................99-59
161
167
162
162
160
163
164
162
162
159
165
166
163
144
170
168
137
137
135
135
140
136
137
169
