MOUNTING THE LED DISPLAY ROTARY KNOB - CONTINUED
Base plate installation, surface adhesive mount option
1. Determine a suitable mounting location for the LED display knob.
a. The LED display must be mounted securely to a solid surface.
b. The LED display must be easily reached by the driver.
2. Place the base plate adhesive pad onto the base plate and adhere
the base plate onto the dash in any of the four orientations (Fig 5).
3. Insert the LED display rotary knob into the base plate with the LEDs
in the upright position. Press down until you hear a 'click' (Fig 6).
4. Drill a 1/2" hole or route the cable of the LED display knob
through the center hole made or out the slot provided. Insert the
LED display rotary knob into the base plate with the LEDs in the
upright position. Press down until you hear a 'click' (page 7).

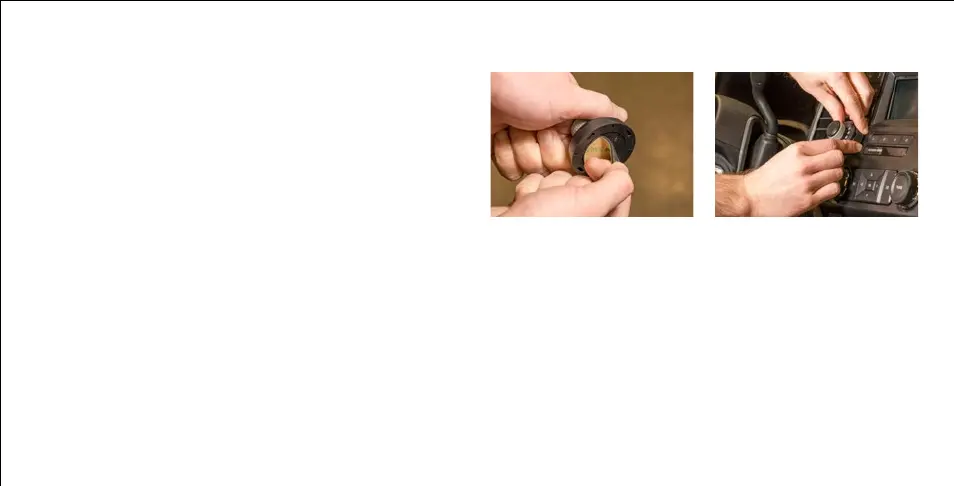

Figure 6Figure 5
