MOUNTING THE LED DISPLAY ROTARY KNOB
Install the LED display rotary knob before installing the main module.
There are two options for mounting the LED display knob in the vehicle.
Notes: Do not insert terminals into the plug connector at this time.
When inserting the LED display rotary knob into the base plate,
ensure the top of the LED arc is facing the upright direction.
Base plate installation, drill mount option
1. Determine a suitable mounting location for the LED display knob.
a. The LED display must be mounted securely to a solid surface.
b. The LED display must be easily reached by the driver.
c. The area behind the mounting location
must be clear to avoid damage while drilling.

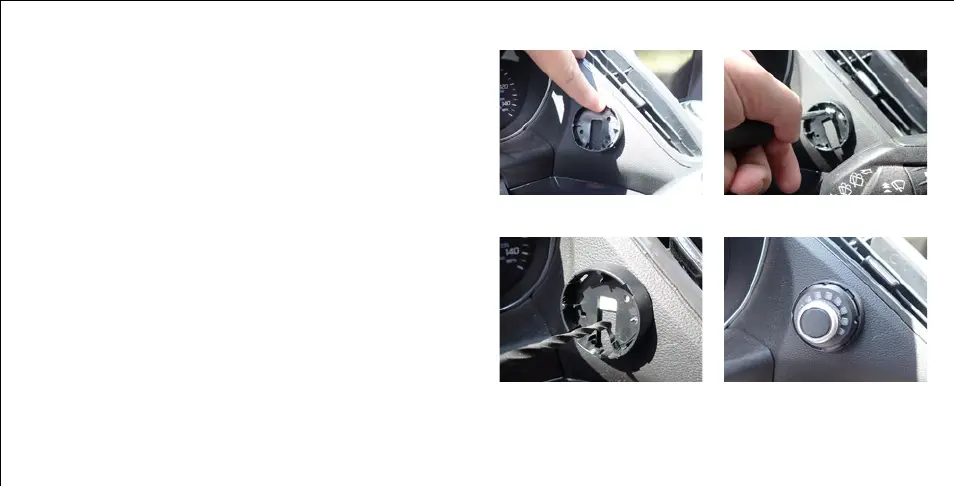

2. Hold the base plate in the selected position and mark
the two hole locations through the base plate (Fig 1).
3. Be sure the orientation of the knob is able
to be seen and is in an accessible position.
4. Using a drill or screw driver install the
two Philips head fasteners (Fig 2 & 3).
5. Drill a 1/2" hole or route the cable of the LED display knob
through the center hole made or out the slot provided. Insert
the LED display rotary knob into the base plate with the LEDs in
the upright position. Press down until you hear a 'click' (Fig 3 & 4).
6. Route the cable behind the dash from the LED display knob
to the main module. See the 'Main Module' section (page 7).
Figure 2
Figure 4
Figure 1
Figure 3
