WIRING: APPLICATION EXAMPLE
The wiring diagram in Figure 4 provides an example of proportional valve control for an
electric forklift.
J1-7
J1-8
J1-2
J1-9
J1-1
J1-23
J1-22
J1-21
J1-20
J1-19
J1-18
J1-17
J1-16
J1-15
J1-3
KEYSWITCH
BATTERY
(12–80V)
REVERSE
POLARITY
PROTECTION
LIFT-UP VALVE
LOWERING VALVE
CAN PORT
1353
ANALOG INPUT 1/ENCODER 1A
ANALOG INPUT 2/ENCODER 1B
ANALOG INPUT 3/ENCODER 2A
ANALOG INPUT 4/ENCODER 2B
I/O GND
INPUT/OUTPUT 1
INPUT/OUTPUT 2
INPUT/OUTPUT 3
INPUT/OUTPUT 4
INPUT/OUTPUT 5
INPUT/OUTPUT 6
INPUT/OUTPUT 7
INPUT/OUTPUT 8
INPUT/OUTPUT 9
CAN H
CAN L
+5V
J1-14
J1-13
J1-6
J1-5
J1-4
REACH
FW/BW
J1-10
J1-11
J1-12
SERIAL PORT
(4-pin Molex)
4
3
1
2
+12V
ANALOG INPUT 6/RX
ANALOG INPUT 5/TX
TILT-UP VALVE
TILT-DOWN VALVE
SHIFT LEFT VALVE
SHIFT RIGHT VALVE
REACH FW VALVE
REACH BW VALVE
OPTION VALVE
SHIFT
LEFT/
RIGHT
TILT
UP/
DOWN
LIFT-UP/
LOWERING

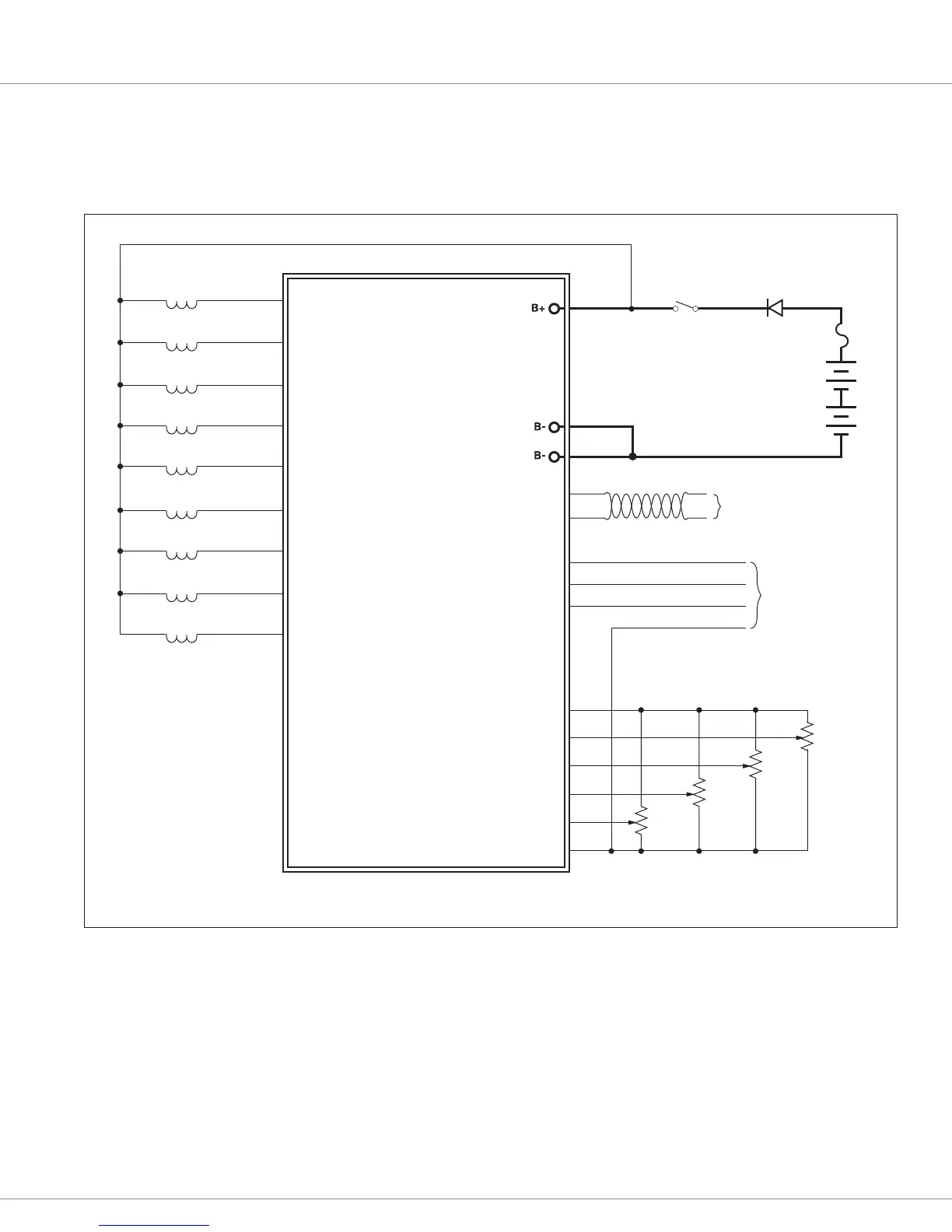

Figure 4
Application example, Curtis 1353 CANopen expansion module.
