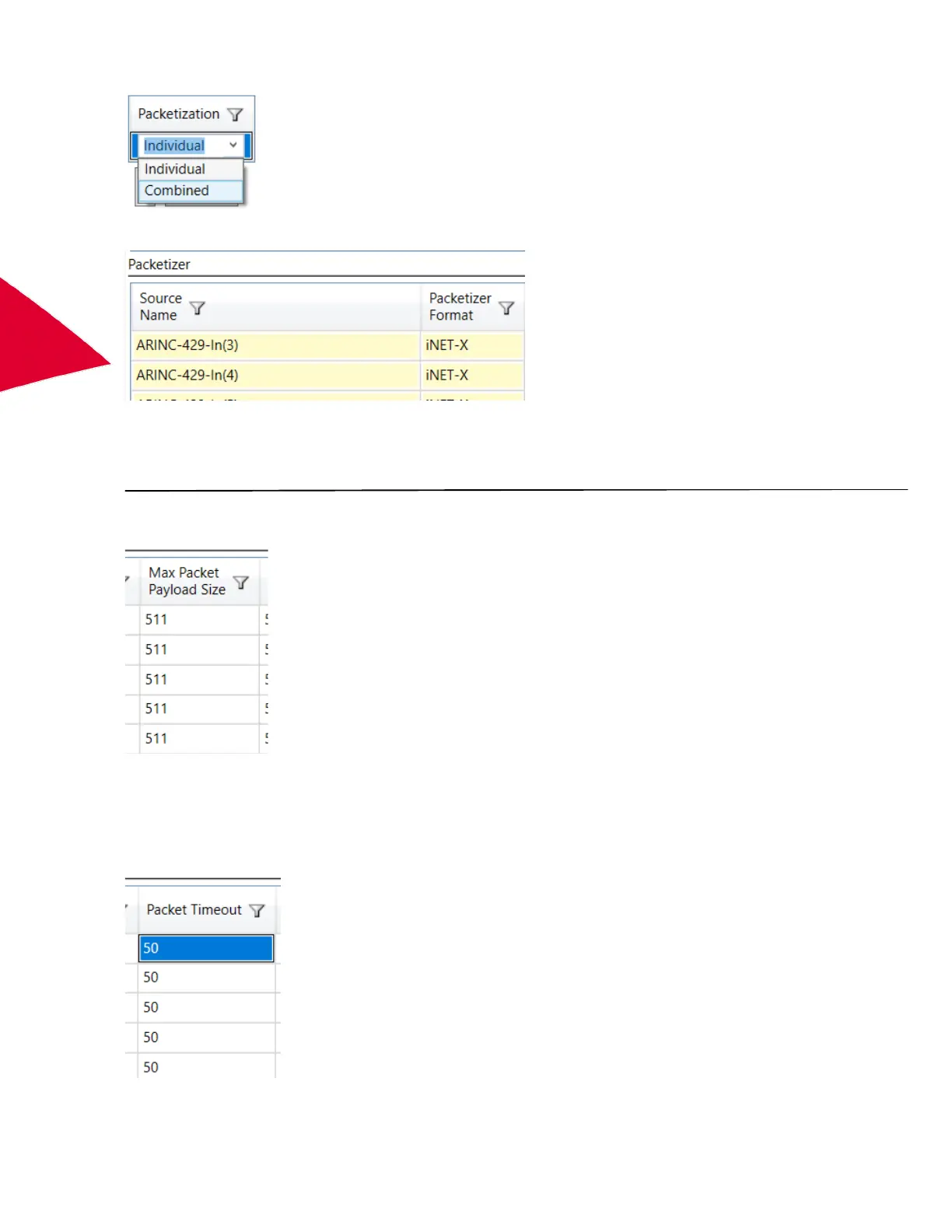

Packetizer Format is currently set to iNET-X, other formats will be added as they become available.
The Max Packet Payload Size setting for each channel is the maximum number of payload bytes that can be
taken up by ARINC-429 words, plus their associated time stamps and information bits, before the packet is
considered full and the packet is closed and transmitted. This is limited to the range 200 to 511, 16-bit words.
NOTE: Smaller packets fill faster and generate more traffic.
The Packet Timeout is the number of milliseconds the packetizer waits for new traffic to arrive before it closes and
transmits the packet. The reason for this setting is that should the ARINC-429 input traffic stop, the module does
not wait indefinitely for a full packet before transmitting the packet. Packetizers work on a no transmit when empty
basis, in that if there is no input traffic there will be no output traffic. This setting defaults to 50 ms, but can be set in
the range 10 ms to 999 ms.
To enable the packetizer on any channel, select the Packetization Enabled check box for that channel.
