User Guide DDOC0199-000-A9
1-Slot Data Transport System (CSfC) B - 2 Connectors / Cables
© 2024 Curtiss-Wright Defense Solutions Revision 0.0

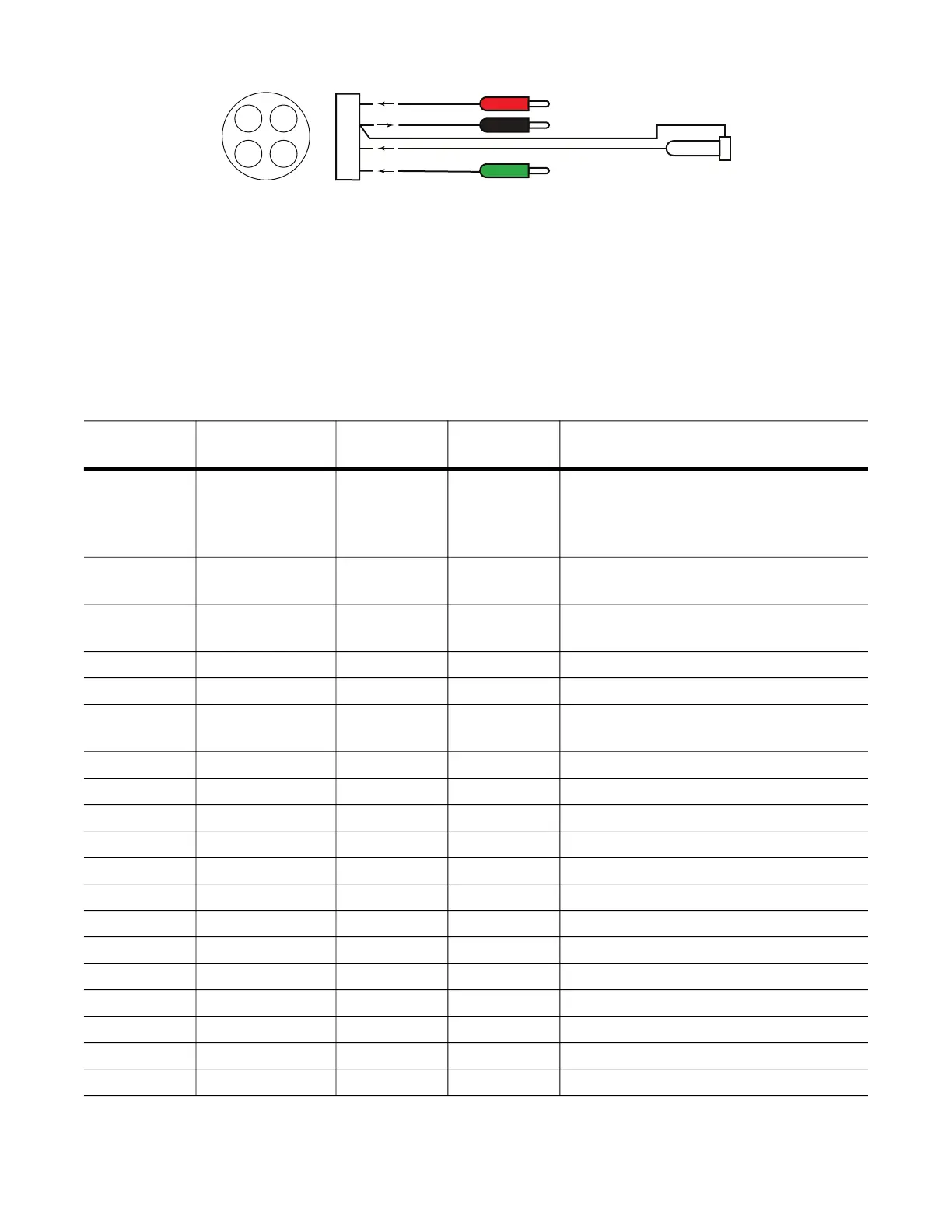

Figure B.2 Power Lab Cable Diagram
B.2 Utility Connector J2 / Utility Lab Cable
Table B.3 provides DTS1+ CSfC bulkhead J2 connector pin signals. Figure B.3 show the DTS1+
CSfC bulkhead J2 connector pinout. Table B.4 shows the DTS1+ CSfC utility lab cable connection
pin signals. Figure B.4 show the utility lab cable wiring diagram.
Connector Manufacturer ....................................................................................................... Glenair
Connector Reference Designator...................................................................................................J2
Connector................................................................................................... PN 801-023-07M9-19PA
Mating Connector....................................................................................... PN 801-007-16M9-19SA
28 VDC
28 VDC RTN
GND
DDOC0199-0036
4
3
2
1
P4
P2
P3
J1
POWER DISABLE
21
43
P1
Table B.3 Utility Connector J2 Signals
Connector
Pin Signal Name Signal Type Direction Description / Functions
1
ZEROIZE_N Analog
In
Active low open collector/switch closure to
induce Zeroization of DTS. This signal must
be active for a minimum of 5 seconds for
the zeroization process to take affect.
2
RST_IN_N Analog
In
Active low external reset input. Short to
GND to invoke DTS reset.
3
GND Analog
Signal return/GND for ZEROIZE_N and
RST_IN_N
4
GND Analog NC
5
NASP_RXD RS-232
In
NAS Processor Serial Port Receive I/F
6
GND Analog
Signal return/GND for NASP_RXD and
NASP_TXD
7
BI_DA1- GbE
In / Out
Gigabit Ethernet Bi-directional pair A1+/-
8
BI_DD1+ GbE
In / Out
Gigabit Ethernet Bi-directional pair D1+/-
9
GND Analog NC
10
NASP_TXD RS-232
Out
NAS Processor Serial Port Transmit I/F
11
GND Analog NC
12
BI_DA1+ GbE
In / Out
Gigabit Ethernet Bi-directional pair A1+/-
13
BI_DD1- GbE
In / Out
Gigabit Ethernet Bi-directional pair D1+/-
14
GND Analog NC
15
GND Analog NC
16
BI_DB1- GbE
In / Out
Gigabit Ethernet Bi-directional pair B1+/-
17
BI_DC1+ GbE
In / Out
Gigabit Ethernet Bi-directional pair C1+/-
18
BI_DC1- GbE
In / Out
Gigabit Ethernet Bi-directional pair C1+/-
19
BI_DB1+ GbE
In / Out
Gigabit Ethernet Bi-directional pair B1+/-
To Next Page
