Curtiss-Wright DTS1+ CSfC - Figure 3.3 DTS1+ Csfc Rear Panel and Rear Connectors

User Guide DDOC0199-000-A9
1-Slot Data Transport System (CSfC) 3 - 3 Overview
© 2024 Curtiss-Wright Defense Solutions Revision 2.0

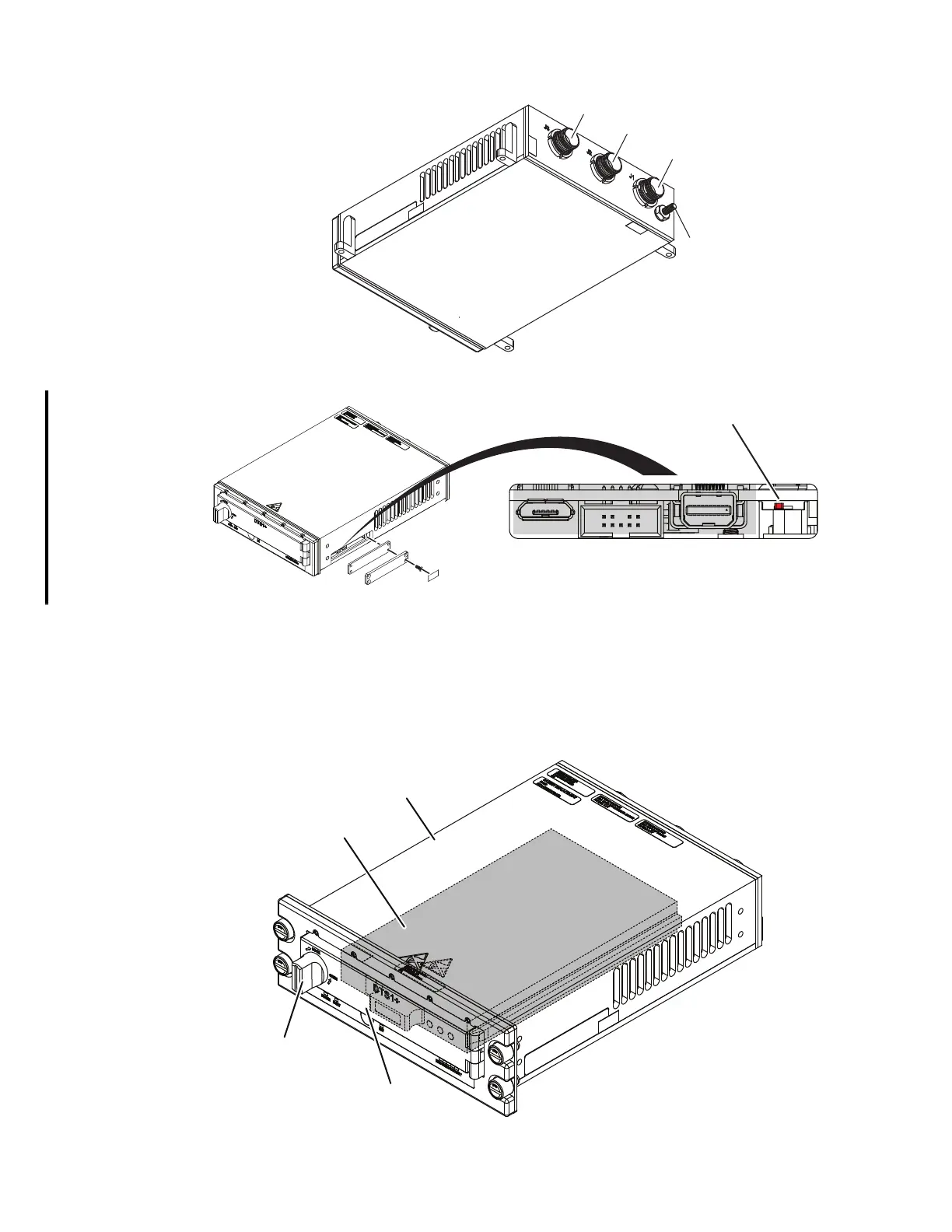

Figure 3.3 DTS1+ CSfC Rear Panel and Rear Connectors
Figure 3.4 DTS1+ CSfC Processor Carrier PCB Programming Connector / Write-Enable
Switch
3.1.2 RMC Module
One RMC module (Figure 3.5) is housed in the DTS1+ CSfC. The RMC module is accessed via a
sealed door with a quarter-turn latch located on the front panel of the unit. The RMC module within
the DTS1+ CSfC is also a rugged compact unit that can be personally transported with minimal
precautions to a secure location or deployment.
Figure 3.5 DTS1+ CSfC With RMC Module
DDOC0199-000 5
Ethernet
Power
Ground Stud
Ethernet / RS-232
DDOC0199-0019
Processor Carrier PCB
Programming Connctors
Write-Enable Switch
RMC Module
DTS1+ CSfC
Quarter-Turn
Latch
Sealed Door
DDOC0199-0002
