Curtiss-Wright DTS1+ CSfC - Table B.5 Ethernet Connector J3 Signals; Table B.6 Ethernet Lab Cable (VS-DTS1 ETHCAB-J3

User Guide DDOC0199-000-A9
1-Slot Data Transport System (CSfC) B - 4 Connectors / Cables
© 2024 Curtiss-Wright Defense Solutions Revision 0.0

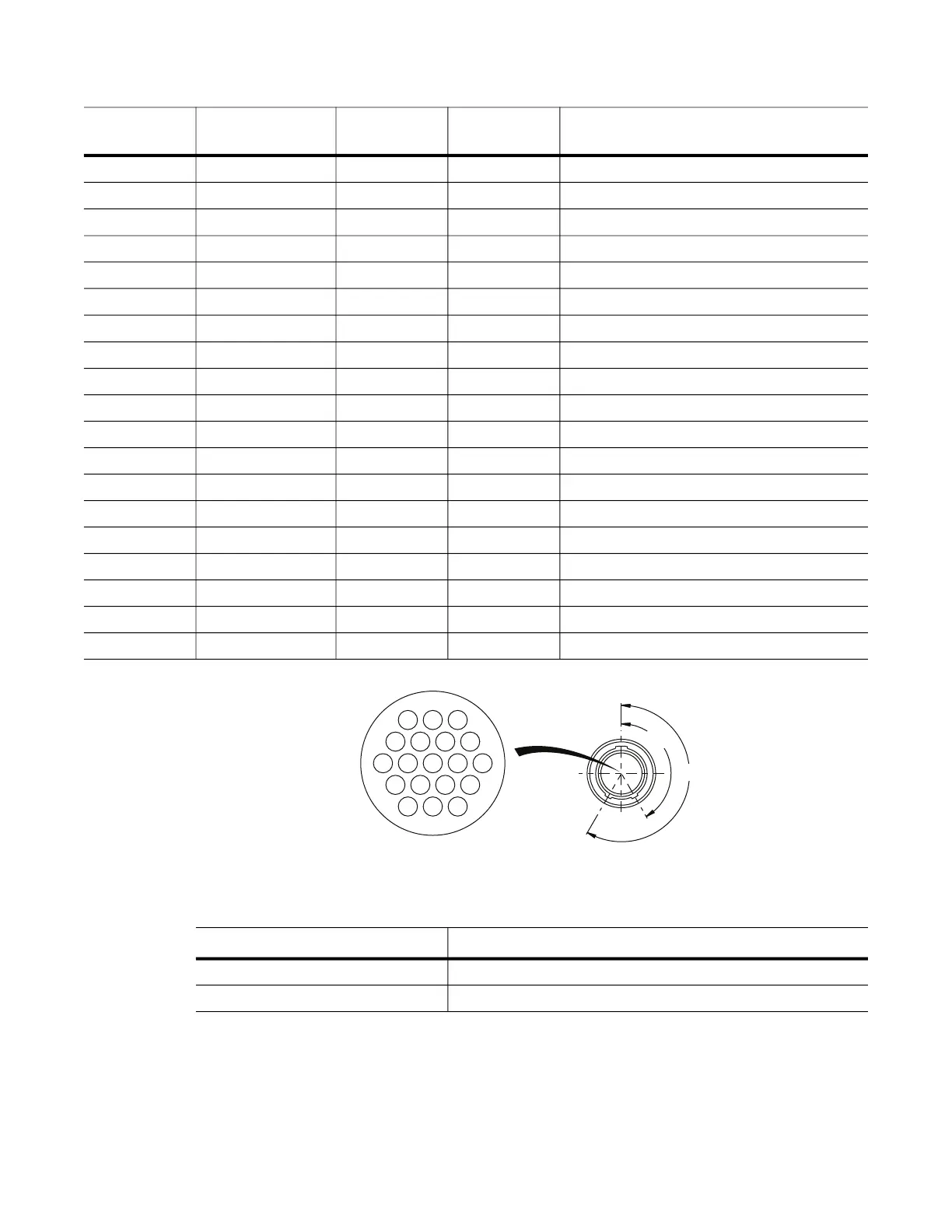

Figure B.5 Ethernet Connector J3
Table B.5 Ethernet Connector J3 Signals
Connector
Pin Signal Name Signal Type Direction Description / Functions
1
2
3 GND Analog
NC
4 GND Analog NC
5
6 GND Analog
NC
7 BI_DA2- GbE In / Out
Gigabit Ethernet Bi-directional pair A2+/-
8 BI_DD2+ GbE In / Out Gigabit Ethernet Bi-directional pair D2+/-
9 GND Analog NC
10
11 GND Analog NC
12 BI_DA2+ GbE In / Out Gigabit Ethernet Bi-directional pair A2+/-
13 BI_DD2- GbE In / Out Gigabit Ethernet Bi-directional pair D2+/-
14 GND Analog NC
15 GND Analog NC
16 BI_DB2- GbE In / Out Gigabit Ethernet Bi-directional pair B2+/-
17 BI_DC2+ GbE In / Out Gigabit Ethernet Bi-directional pair C2+/-
18 BI_DC2- GbE In / Out Gigabit Ethernet Bi-directional pair C2+/-
19 BI_DB2+ GbE In / Out Gigabit Ethernet Bi-directional pair B2+/-
Table B.6 Ethernet Lab Cable (VS-DTS1ETHCAB-J3)
Connector Description Mates With / Signal Name
P1 DTS1+ CSfC J3
P2 – TIA/EIA-568B Modular Plug Gigabit Ethernet TIA/EIA-568B Modular Jack
DDOC0199-0041
213
456
891011
19 18
131415
17
12
16
7
75°
210°
