Connectors / Cables
The Glenair Series 801 Mighty Mouse Connectors feature double-start ACME threads with anti-
decoupling spring or ratchet and provide fast mating requiring only 1-½ turns to fully engage.
B.1 Power Connector J1 / Power Lab Cable
Table B.1 provides DTS1+ CSfC bulkhead J1 connector pin signals. Figure B.1 show the DTS1+
CSfC bulkhead J1 connector pinout. Table B.2 shows the DTS1+ CSfC power lab cable
connection pin signals. Figure B.1 show the power lab cable wiring diagram.
Connector Manufacturer ........................................................................................................Glenair
Connector Reference Designator...................................................................................................J1
Connector..................................................................................................... PN 801-023-07M9-4PA
Mating Connector........................................................................................ PN 801-007-16M9-4SA

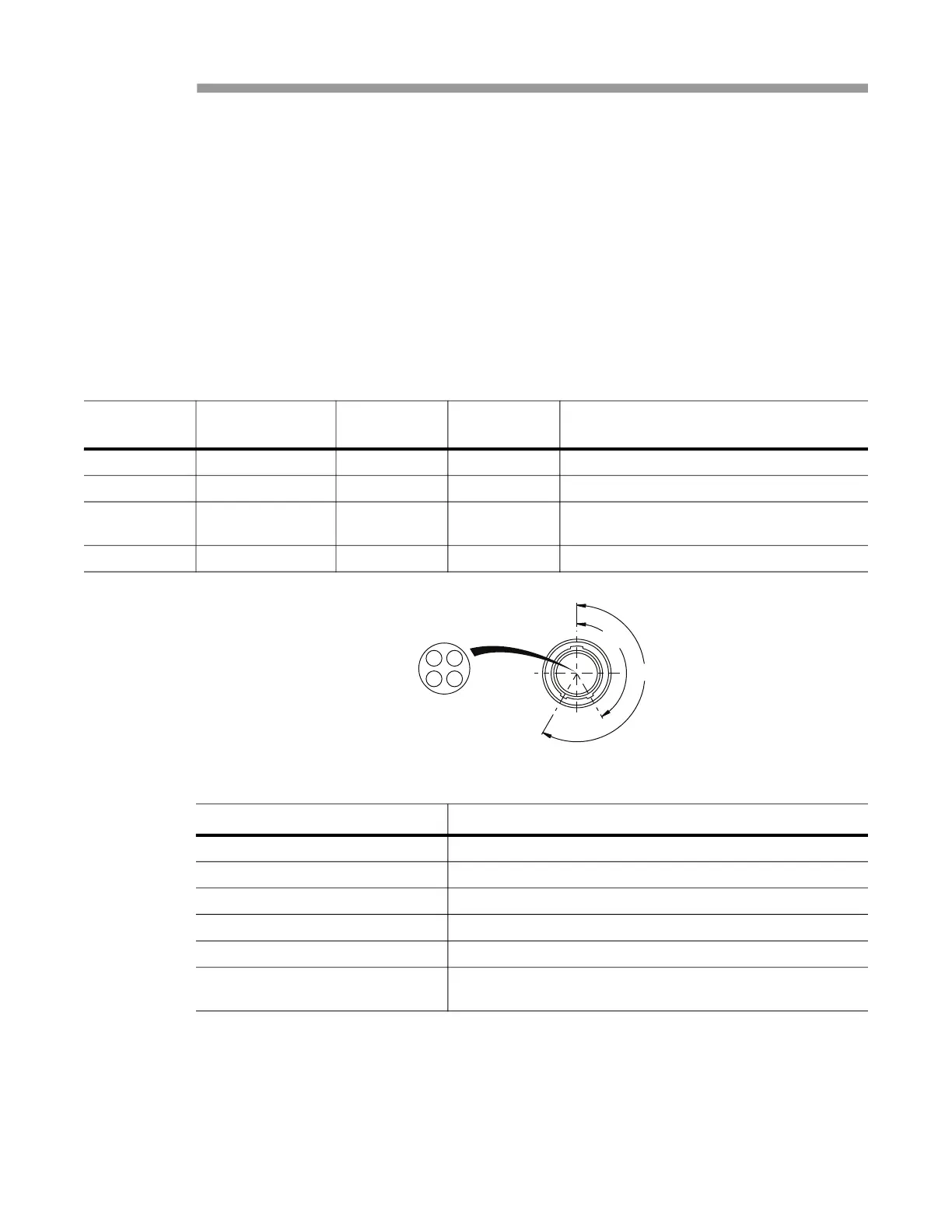

Figure B.1 Power Connector J1
Table B.1 Power Connector J1 Signals
Connector
Pin Signal Name Signal Type Direction Description / Functions
1 28V DC Analog In Main 28VDC Power Input
2 28 VDC RTN Analog Out Main 28VDC Power RTN
3 Power Disable Analog In DTS1+ CSfC power off control. Short to
+28VDC_RTN to turn off the DTS1+ CSfC
4 EMI GND Analog EMI / Safety Ground
Table B.2 Power Lab Cable (VS-DTS1PWRCAB-0)
Connector Description Mates With / Signal Name
P1 DTS1+ CSfC J1
P2 Banana Plug - Red 28 VDC
P3 Banana Plug - Black 28 VDC RTN
P4 Banana Plug - Green Chassis Ground
J1 3.5mm Audio Jack Tip 28VDC RTN
J1 3.5mm Audio Jack Ring PWR DISABLE – Short to +28 VDC RTN to power off DTS1+
CSfC
DDOC0199-0039
21
43
150°
210°
