1-Slot Data Transport System (CSfC) 3 - 1 Overview

Overview

3.1 Description

The Curtiss-Wright DTS1+ CSfC (Figure 3.1) is a rugged Network Attached Storage (NAS) device

with solid state storage capacities from 256 GB up to 8 TB. The DTS1+ CSfC provides data

storage to assorted network clients via two IEEE 802.3 / 802.3u / 802.3ab Ethernet ports. The

DTS1+ CSfC is a ruggedized unit designed to operate on vehicles, in field stations, or in

laboratories.

The DTS1+ CSfC is configured/controlled through a Command Line Interface (CLI) via RS-232 or

Ethernet (Telnet or SSH). The CLI utilizes Curtiss-Wright’s proprietary command structure, which

includes built in Help. The DTS1+ CSfC uses the Commercial Solutions for Classified (CSfC)

specification and associated dual layer data security system to provide a NSA-acceptable data

encryption method. Data is encrypted by hardware and software to fulfill the CSfC dual layer

requirements.

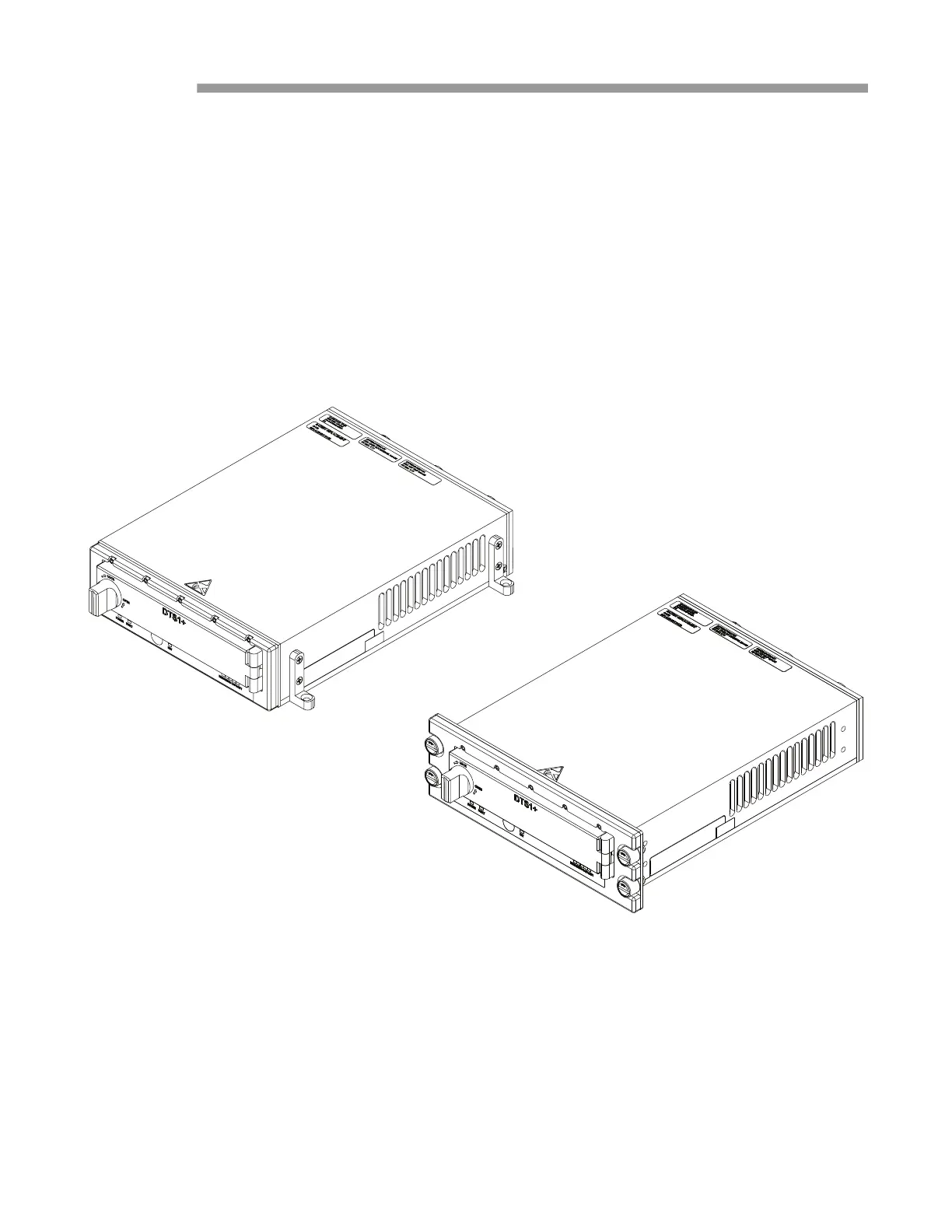

Figure 3.1 DTS1+ CSfC

3.1.1 Chassis

The chassis (Figure 3.2) is made up of the following major assemblies:

• RMC Module Mount

• Backplane PCB

• Power Supply PCB

• Processor Carrier PCB

• COM Express Module

• USB Flash Module

DDOC0199-0001

DTS1+ CSfC Standard Mount

DTS1

+ CSfC

DZUS Mount
