Curtiss-Wright DTS1+ CSfC - Figure B.3 Utility Connector J2; Figure B.4 Utility Lab Cable Diagram

User Guide DDOC0199-000-A9
1-Slot Data Transport System (CSfC) B - 3 Connectors / Cables
© 2024 Curtiss-Wright Defense Solutions Revision 0.0

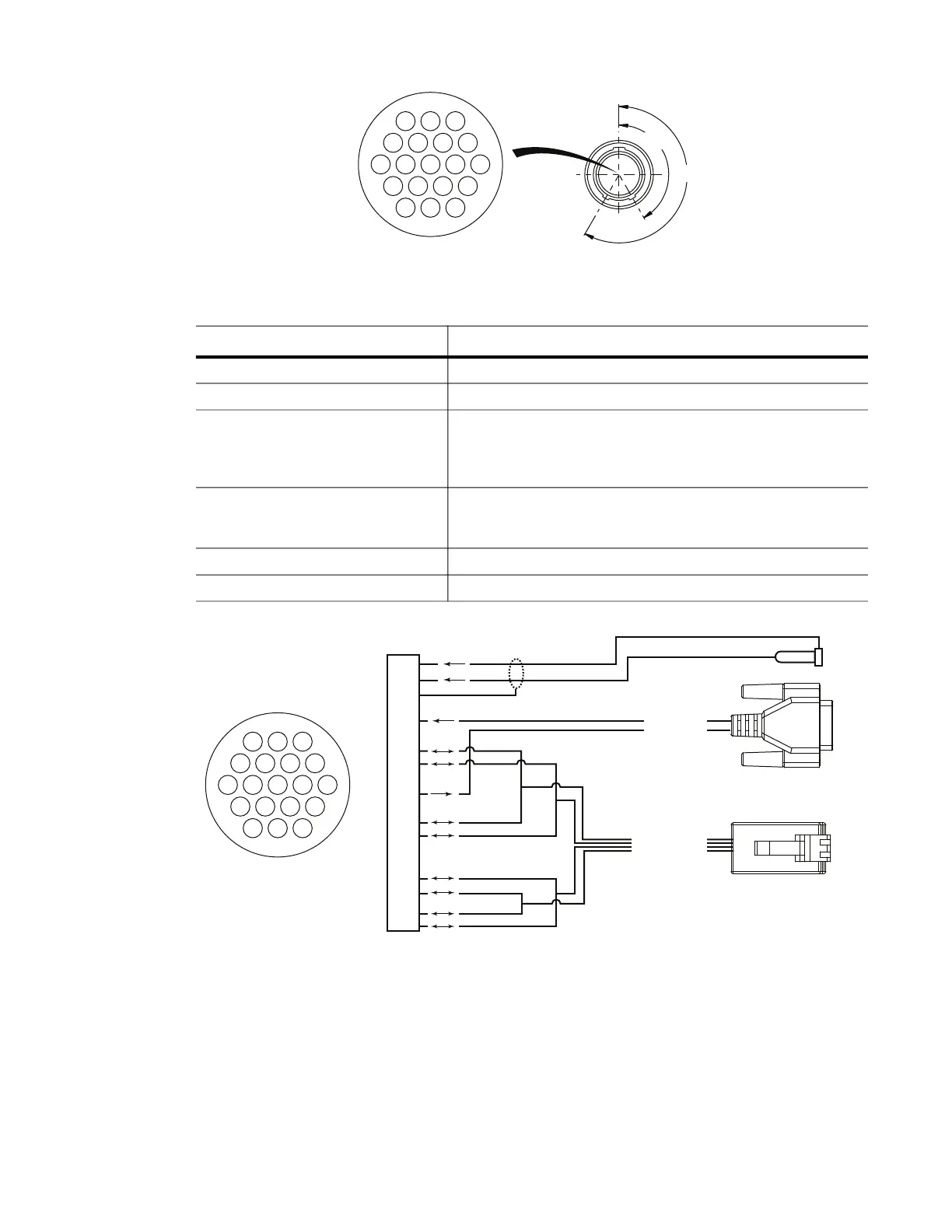

Figure B.3 Utility Connector J2
Figure B.4 Utility Lab Cable Diagram
B.3 Ethernet Connector J3 / Ethernet Lab Cable
Table B.5 provides DTS1+ CSfC bulkhead J3 connector pin signals. Figure B.5 show the DTS1+
CSfC bulkhead J3 connector pinout. Table B.6 shows the DTS1+ CSfC Ethernet lab cable
connection pin signals. Figure B.6 show the utility lab cable wiring diagram.
Connector Manufacturer ....................................................................................................... Glenair
Connector Reference Designator...................................................................................................J3
Connector................................................................................................... PN 801-023-07M9-19PB
Mating Connector....................................................................................... PN 801-007-16M9-19SB
Table B.4 Utility Lab Cable (VS-DTS1ETHCAB-J2)
Connector Description Mates With / Signal Name
P1 DTS1+ CSfC J2
P2 TIA/EIA-568B Modular Plug Gigabit Ethernet TIA/EIA-568B Modular Jack
J1 D-sub DE-9 Female/Socket RS-232
Pin 2: DTS1+ CSfC transmit
Pin 3: DTS1+ CSfC receive
Pin 5: GND
J2 3.5mm Audio Jack Tip ZEROIZE – Short to GND to ZEROIZE Crypto Keys. This signal
must be active for a minimum of 5 seconds for the zeroization
process to take affect.
J2 3.5mm Audio Jack Ring RESET – Short to GND to reset DTS1+ CSfC
J2 3.5mm Audio Jack Shield GND
DDOC0199-0040
213
456
891011
19 18
131415
17
12
16
7
150°
210°
213
456
891011
19 18
131415
17
12
16
7
DDOC0199-0037
J1
J2
6
5
4
3
2
1
12
11
10
9
8
7
13
19
18
17
16
15
14
P2
C1
B1
A1
D1
ZEROIZE
RESET
RS-232
ETHERNET
P1
