Curtiss-Wright DuraCOR 312 - Base System with Removable Storage Bay Option; System Block Diagram; Figure 1: System Block Diagram

DuraCOR 312
Chapter 1 - Introduction
Page 12 of 59
MNL-0670-01 Rev A2
ECO-5931
Effective: 03 Jun 20
Example ordering code:
C312-03: DuraCOR 312, NVIDIA Jetson TX2i, 32 GB onboard flash storage, 64 GB M.2 storage
Base system with Removable Storage Bay Option
The base system with removable storage bay integrates a NVIDIA Jetson TX2i module. The base system
comes pre-installed with the Linux 4 Tegra (L4T) with the LTS Linux Kernel on the 32 GB onboard flash.
The system also integrates an additional ring to house a removable 2.5” SSD.
Example ordering code:
C312-00R: DuraCOR 312, NVIDIA Jetson TX2i, 32 GB onboard flash storage, no M.2 / mSATA,
Removable 2.5” SSD storage bay (disk and tray sold separately)

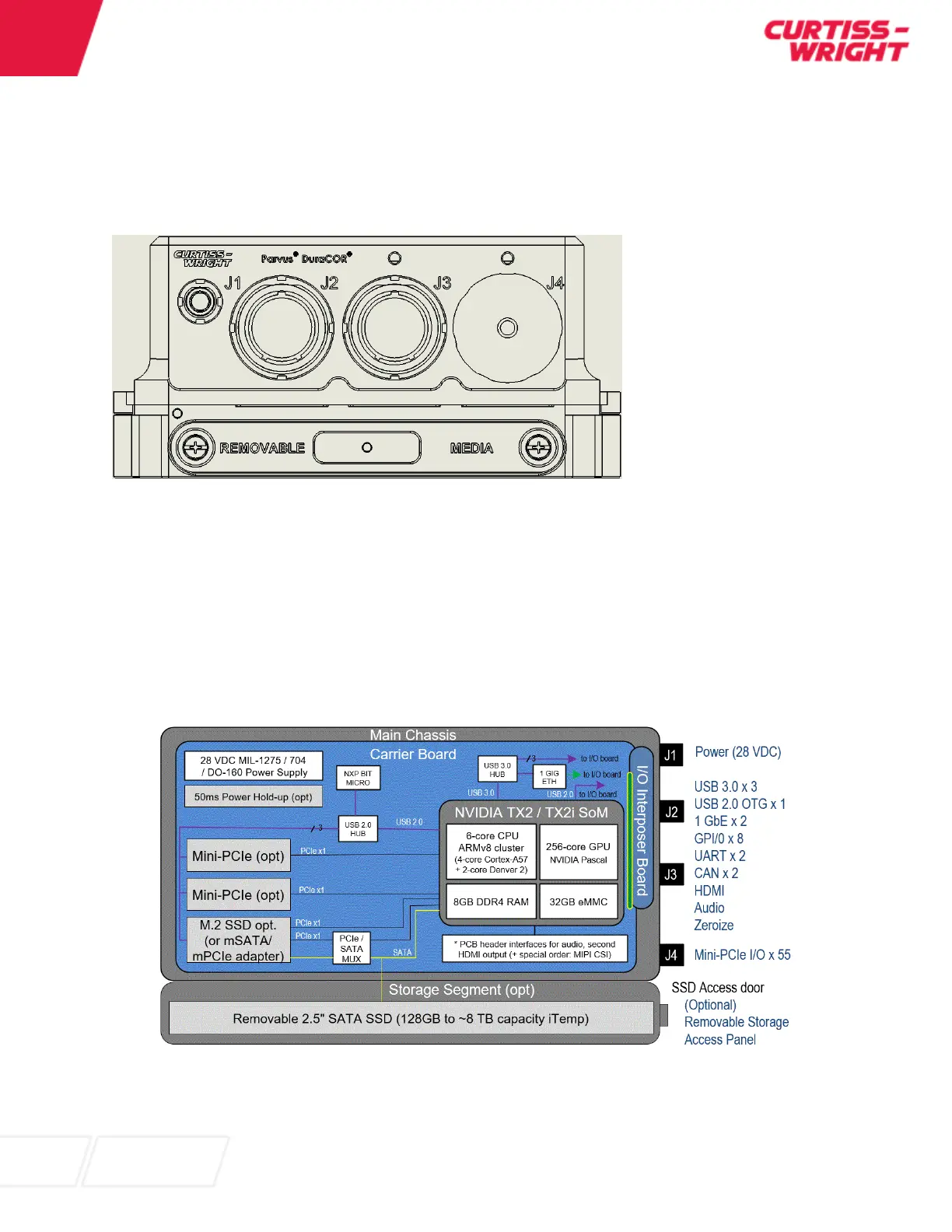

System Block Diagram
The block diagram shows the DuraCOR 312 interfaces.
Figure 1: System Block Diagram
