Note 3) Port 0 is a stand-alone USB2.0 port with On-the-Go (OTG). Force_Recover puts the nVidia
module into a force-recovery mode to receive new boot-loader and OS software via port 0.
J3 I/O Connector
J3 contains HDMI, RS232/422/483 Serial ports, 8x GPIO signals, CAN ports, Remote on/off, Write
protect, and GPIO
Caution! ESD Sensitive Components
Follow standard ESD and FOD controls to avoid damage to the internal components.

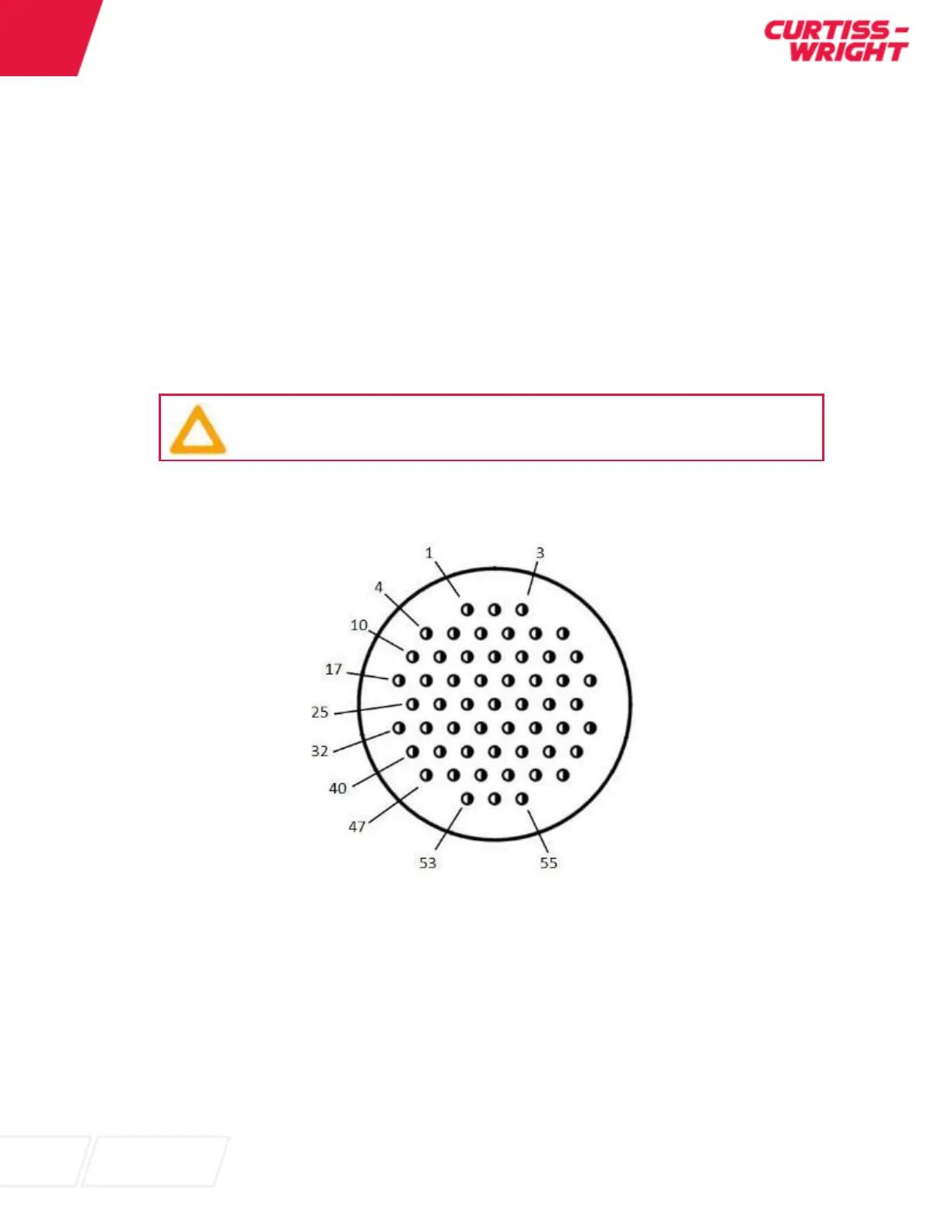

Figure 5: DuraCOR 312 J3 Front Pinout
