Dimensions
Figures XXXX provide the physical dimensions of the DuraCOR 312
• Base system: ~2.0 x 5.2 x 5.4” (5.2 x 13.2 x 13.8 cm) excluding connectors and mounting features
• Optional removable 2.5” storage add-on: ~2.8 x 5.2 x 5.4” (6.7 x 13.2 x 13.8 cm) excluding
connectors and mounting features.
Mounting the System

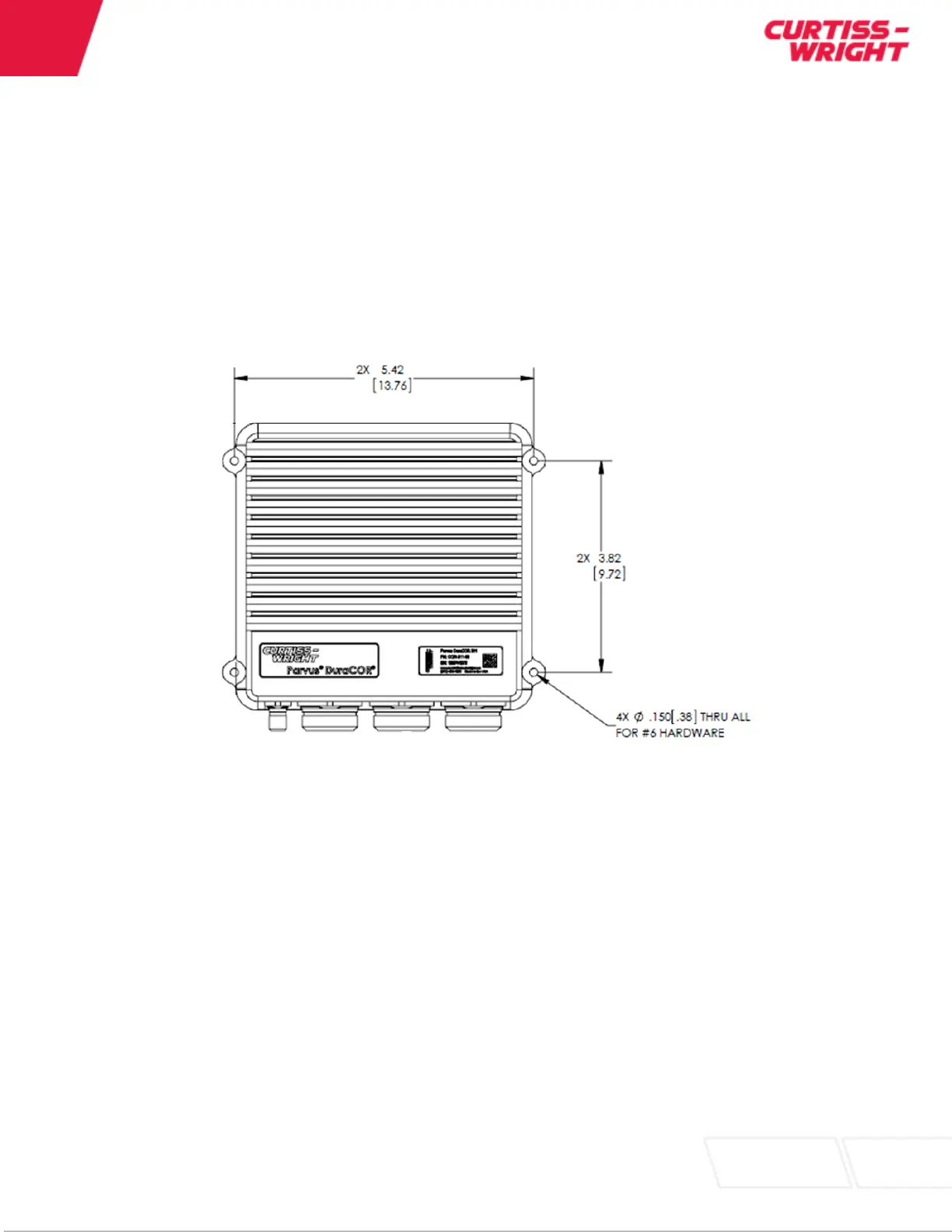

The DuraCOR 312 is mounting using 4x #10 hardware. Mounting hole locations:
Power
• 28 VDC nominal power; input range: 9-36 VDC
• MIL-STD-704F 28 VDC compliant for aircraft electrical operation: over/under voltages, spikes,
surges for normal, transfer, abnormal, emergency, starting, and power failure.
o Optional support for 50 ms power hold-up capacitance (per MIL-STD-704) for aircraft power
switch-over requirements
• MIL-STD-1275D 28 VDC compliant for ground vehicle operation: steady state DC voltage
variations, no fault/single fault conditions, ripple voltage susceptibility on input power leads,
imported voltage spikes, overvoltage and under voltage surges, starting disturbances, ESD
immunity
• RTCA/DO-160 compliant for aircraft operation (Sections 16-18, 25): power input, voltage spikes,
audio frequency conducted susceptibility-power inputs, electrostatic discharge
• Power consumption (estimated): <25 watts
o NVIDIA SoM supports MAX-Q and MAX-P operating modes for maximum efficiency or
maximum performance (up to double that of the Jetson TX1)
