Curtiss-Wright DuraCOR 312 - Shared Resources and Connectors Location; Table 2: Chip List

DuraCOR 312
Chapter 1 - Introduction
MNL-0670-01 Rev A2
ECO-5931
Effective: 03 Jun 20
Page 13 of 59
Table 2: Chip List
Interface
Description
MFG
MFG Part Number
Processor
Jetson TX2i
NVIDIA
P3489
Ethernet
Broadcom
Broadcom
BCM54610C1IMLG
USB 3.1 Gen 1 to 10/100/1000 Ethernet
Bridge
Microchip
LAN7800
Serial
Dual TXRX RS232/422/485 Multiprotocol
Transceiver
Linear Technologies
LTC2872
USB
4-port USB 2.0 HUB, internal ports
Texas Instrument
TUSB4041IPAPRQ1
4-port USB 3.0 Hub, external ports & EN2
Texas Instrument
TUSB8041IPAPRQ1
Audio
Stereo Codec
Freescale
SGTL5000XNA
Microcontroller
ARM Microcontroller
Freescale
MK60DN512

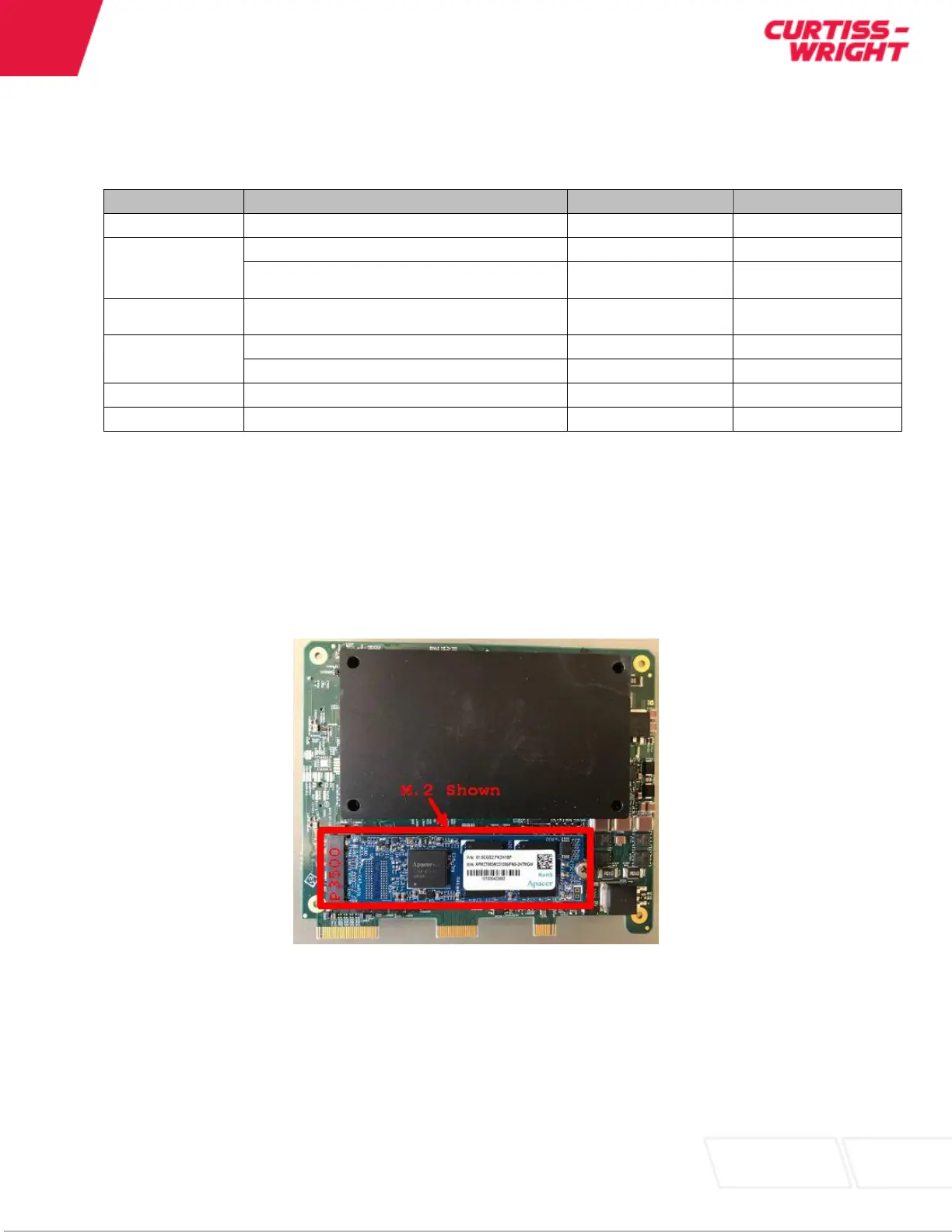

Shared Resources and Connectors Location
To accommodate different configurations, the following shared resources are explained below:
M.2: The intended use of this socket is primarily M.2 storage (SSD/NVMe) or an additional mini-PCIe
using adapter card.
SATA / mSATA / M.2 (SATA): P3503 and P3503b (SATA power) on the motherboard allow an add-on
SATA drive to be attached to the system via an add-on ring if larger capacities and/or removable storage
is desired. If an added SATA device is attached, the M.2 can no longer be used for SATA storage, but
will retain the NVMe storage and mini-PCIe functionality.
