DuraCOR 312
Chapter 3 - Connector Descriptions
MNL-0670-01 Rev A2
ECO-5931
Effective: 03 Jun 20
Page 23 of 59

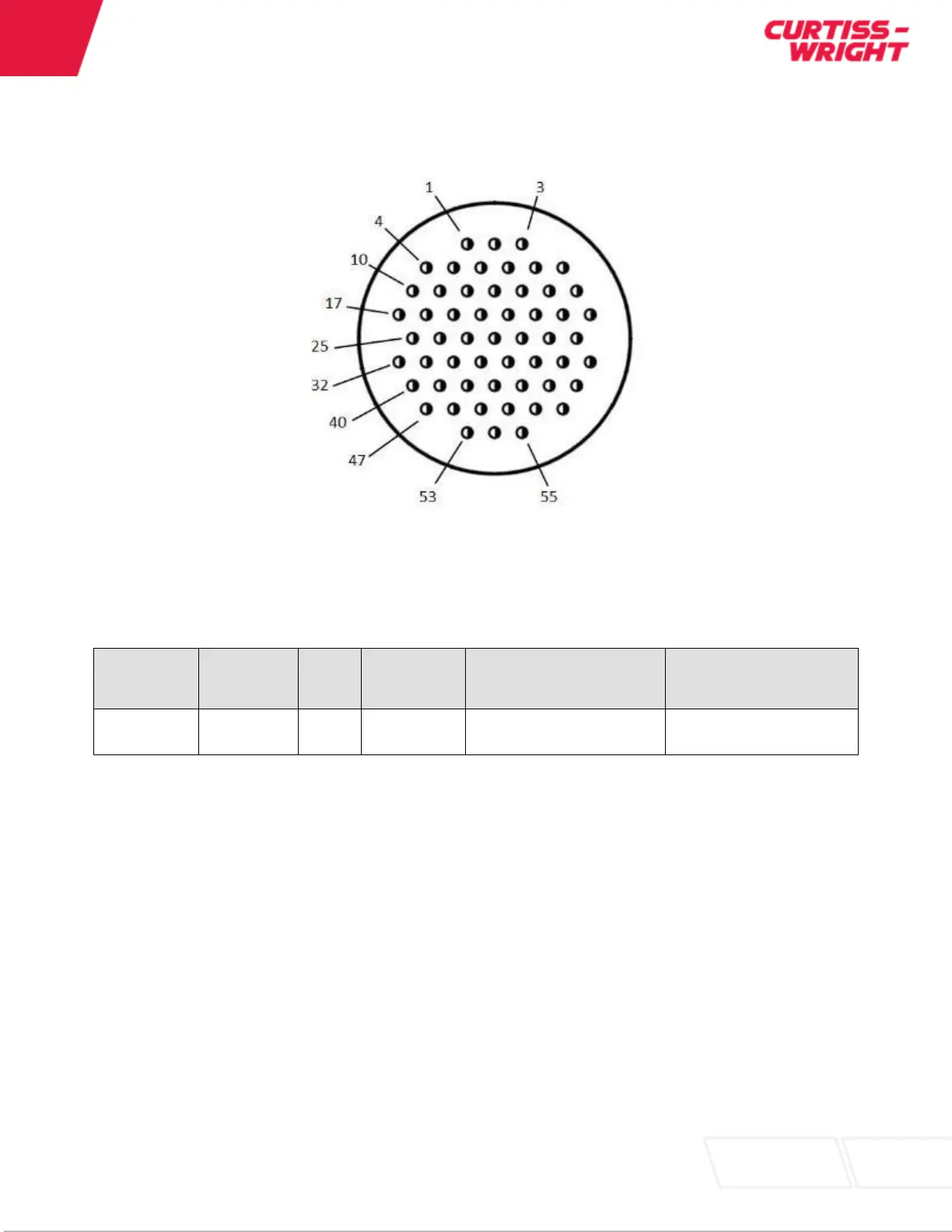

Figure 6: DuraCOR 312 J4 Front Pinout
Table 10: J4 Connector Information
Receptacle
Use
Receptacle
Label #
# of
Pins
Wire Gauge
(AWG)
Amphenol (Glenair) Jam
Nut Receptacle
Part Number
Amphenol (Glenair)
Mating Connector
Part Number
Configurable
I/O
J4
55
22-28
2M801-010-07M16-55SC
(801-010-07M16-55SC)
2M801-008-16M16-55PC
(801-008-16M16-55PC)
Optional Internal IO Expansion Connectors
See Chapter 4 for the functional details of each interface.
