Curtiss-Wright DuraCOR 312 - J2 I;O Connector; Figure 4: Duracor 312 J2 Front Pinout; Table 6: J2 Connector Information

DuraCOR 312
Chapter 3 - Connector Descriptions
Page 18 of 59
MNL-0670-01 Rev A2
ECO-5931
Effective: 03 Jun 20
J2 I/O Connector
J2 contains 2x GbE ports, 4x USB ports (2x USB 2.0 and 2x USB 3.0), and audio signals. The GbE and
USB ports are ESD protected, however, the audio signals have no ESD protection. Any ESD protection
could compromise the signal quality of the audio signals.
Caution! ESD Sensitive Components
Follow standard ESD and FOD controls to avoid damage to the internal components.

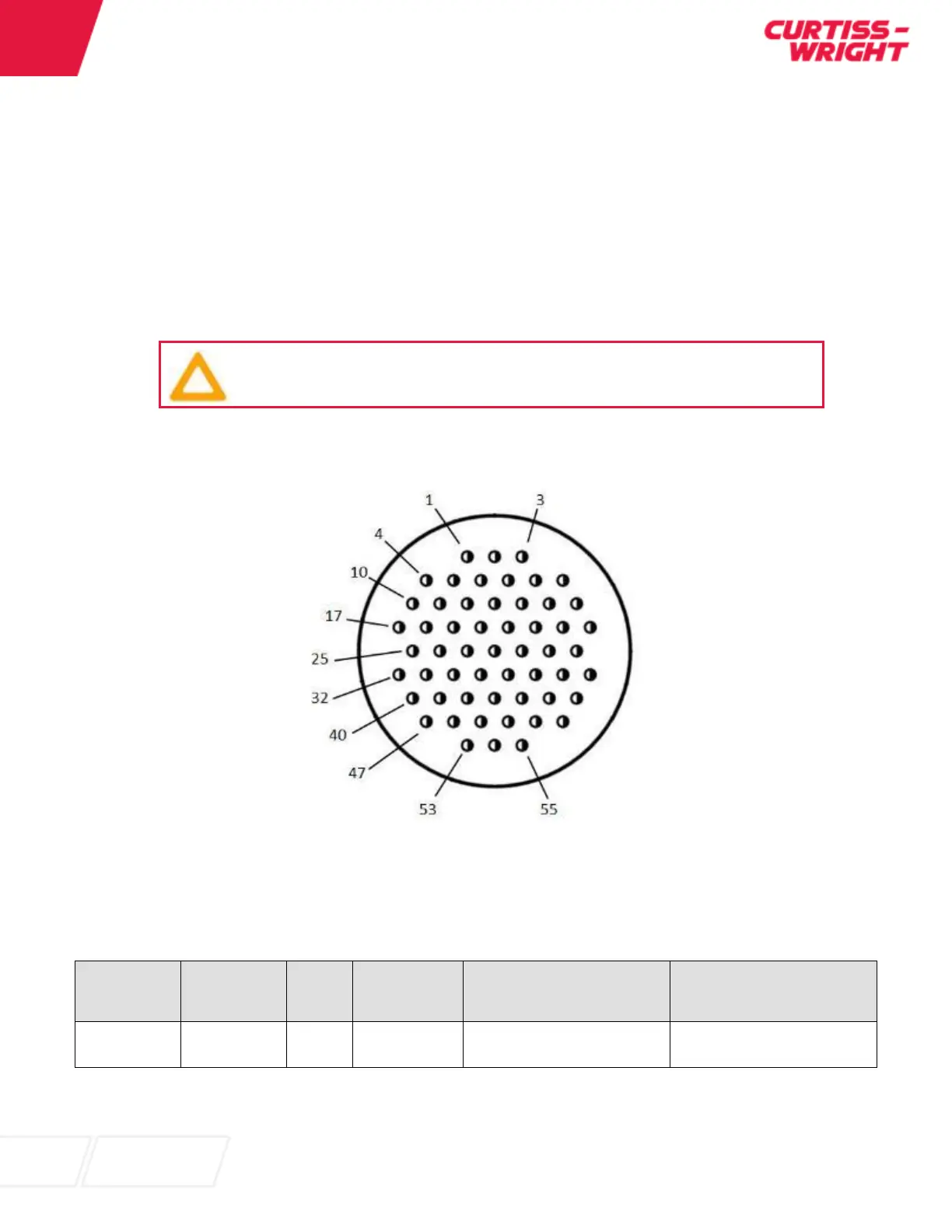

Figure 4: DuraCOR 312 J2 Front Pinout
Table 6: J2 Connector Information
Receptacle
Use
Receptacle
Label #
# of
Pins
Wire Gauge
(AWG)
Amphenol (Glenair) Jam
Nut Receptacle
Part Number
Amphenol (Glenair)
Mating Connector
Part Number
I/O
J2
55
22-28
2M801-033-07M16-55SA
(801-033-07M16-55SA)
2M801-008-16M16-55PA
(801-008-16M16-55PA)
