Chapter 3 - Connector Descriptions
This chapter identifies the pinouts and signal descriptions for the DuraCOR 312. It also provides
connector part numbers along with suggested mating connector details as necessary.

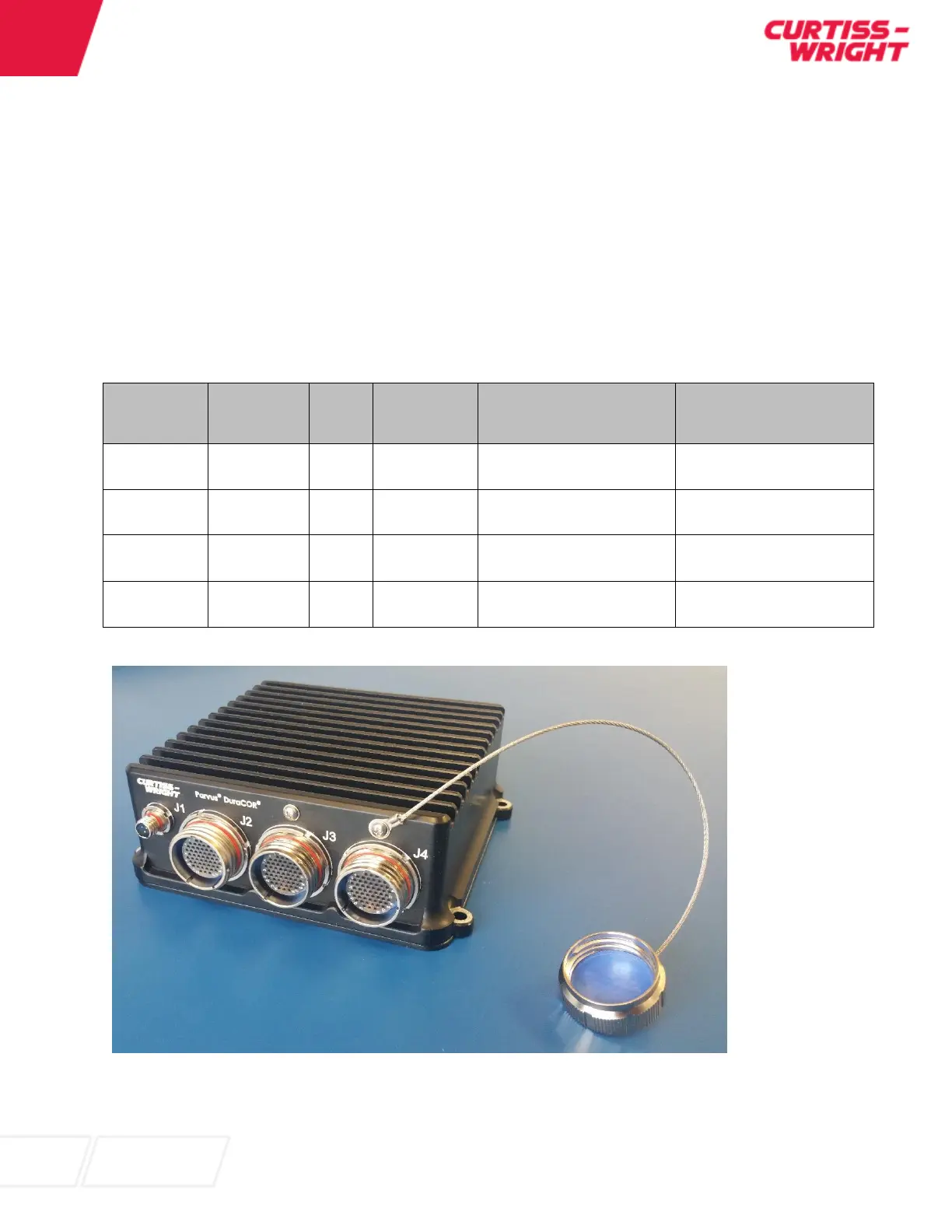

Connector Identification
Table 3: DuraCOR 312 Connector Identification Table
Receptacle
Use
Receptacle
Label #
# of
Pins
Wire Gauge
(AWG)
Amphenol (Glenair) Jam
Nut Receptacle
Part Number
Amphenol (Glenair)
Mating Connector
Part Number
Power
J1
3
22-28
2M801-033-07M5-3PA
(801-033-07M5-3PA)
2M801-008-16M5-3SA
(801-008-16M5-3SA)
I/O
J2
55
22-28
2M801-033-07M16-55SA
(801-033-07M16-55SA)
2M801-008-16M16-55PA
(801-008-16M16-55PA)
I/O
J3
55
22-28
2M801-033-07M16-55SB
(801-033-07M16-55SB)
2M801-008-16M16-55PB
(801-008-16M16-55PB)
Configurable
I/O Pins
J4
55
22-28
2M801-010-07M16-55SC
(801-010-07M16-55SC)
2M801-008-16M16-55PC
(801-008-16M16-55PC)
