truSculpt RF Handpieces
Two RF handpieces are available for use with the truSculpt: truSculpt 16, which features a 16 cm
2
concave electrode, and truSculpt 40, which features a 40 cm
2
concave electrode. The RF handpieces
deliver RF energy to the skin and subcutaneous tissue during treatment.
The handpiece on/off button activates, pauses and deactivates the treatment cycle. Colored LED lights
on the handpieces illuminate to indicate the following:
• dull green light = communication between handpiece and system software has been
established
• bright green light = system is in READY mode
• bright blue light = RF energy is being delivered
• bright red light = system has encountered an error

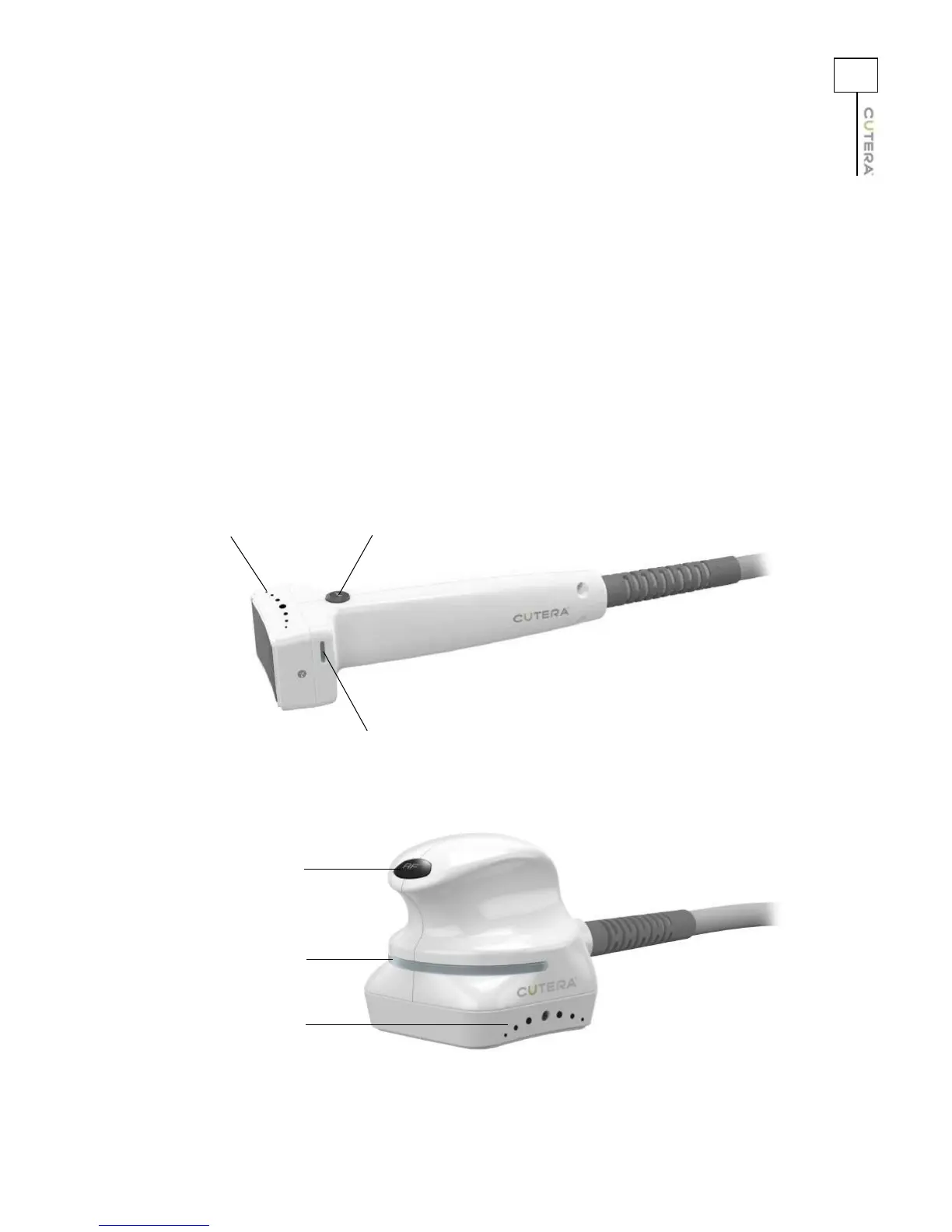

truSculpt 16 RF Handpiece
truSculpt 40 RF Handpiece
On/off button
LED lights
Curvature indicator
On/off button
LED lights
Curvature indicator
