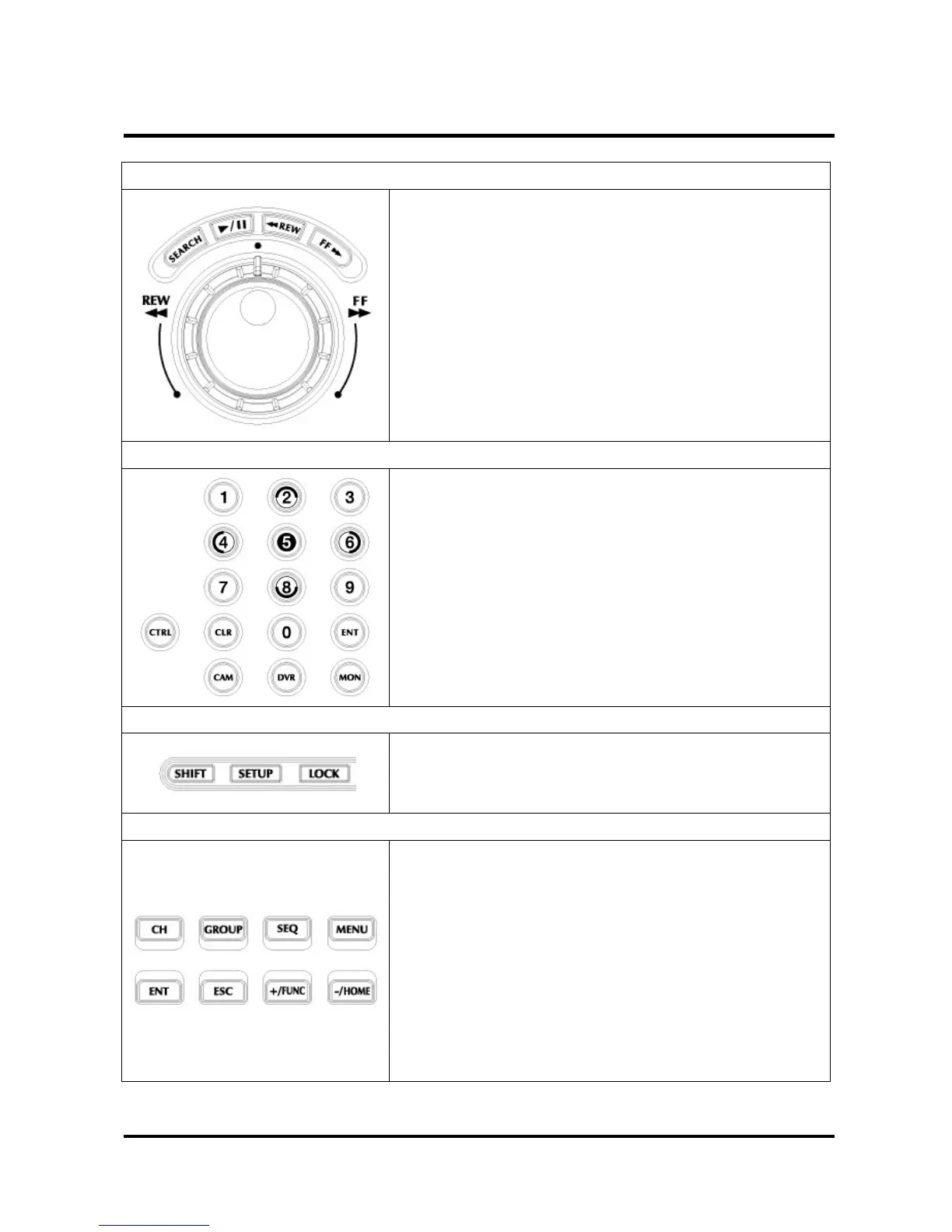

4. OPERATING CONTROLS
DVR Search Part
SEARCH : It is used to search the stored video data.
▶/ ll : It is used to activate the searched video data or bring
them to a temporary stop.
◀◀REW : It allows data to be wounded in the reverse
direction during retrieval.
FF▶▶ : It allows searched data to be played out at higher
speeds than the normal speed.
Jog : It is used to search by 1 Frame.
Shuttle : Same with REW,FF button
Miscellaneous Buttons Part
CTRL : Combination button for another function
Numeric : Select Camera ID, DVR ID or Monitor No.
CLR : Clear/Erase previous input.
ENT : It is used to select for set up Menu.
CAM : It is used to select the Camera No.
DVR : It is used to select the DVR No.
MON : It is used to select the Monitor No.
Controller Function Part
SHIFT : Combination button for another function
SETUP : It is used to setup the Controller’s configurations.
LOCK : It is used to lock all Controller functions.
Matrix Function Part
CH : It is used to select the channel.
GROUP : It is used for the Group function or Page Up in menu.
SEQ : It is used for the Sequence function or Page Down in
menu.
MENU : : It is used to set Matrix Switcher’s configurations.
ENT : It is used to save & exit or go to next menu
ESC : It is used to exit without saving in menu or go to previous
menu.
+/- : It is used to change values.
