CYBEX 525AT User Manual

Install console assembly

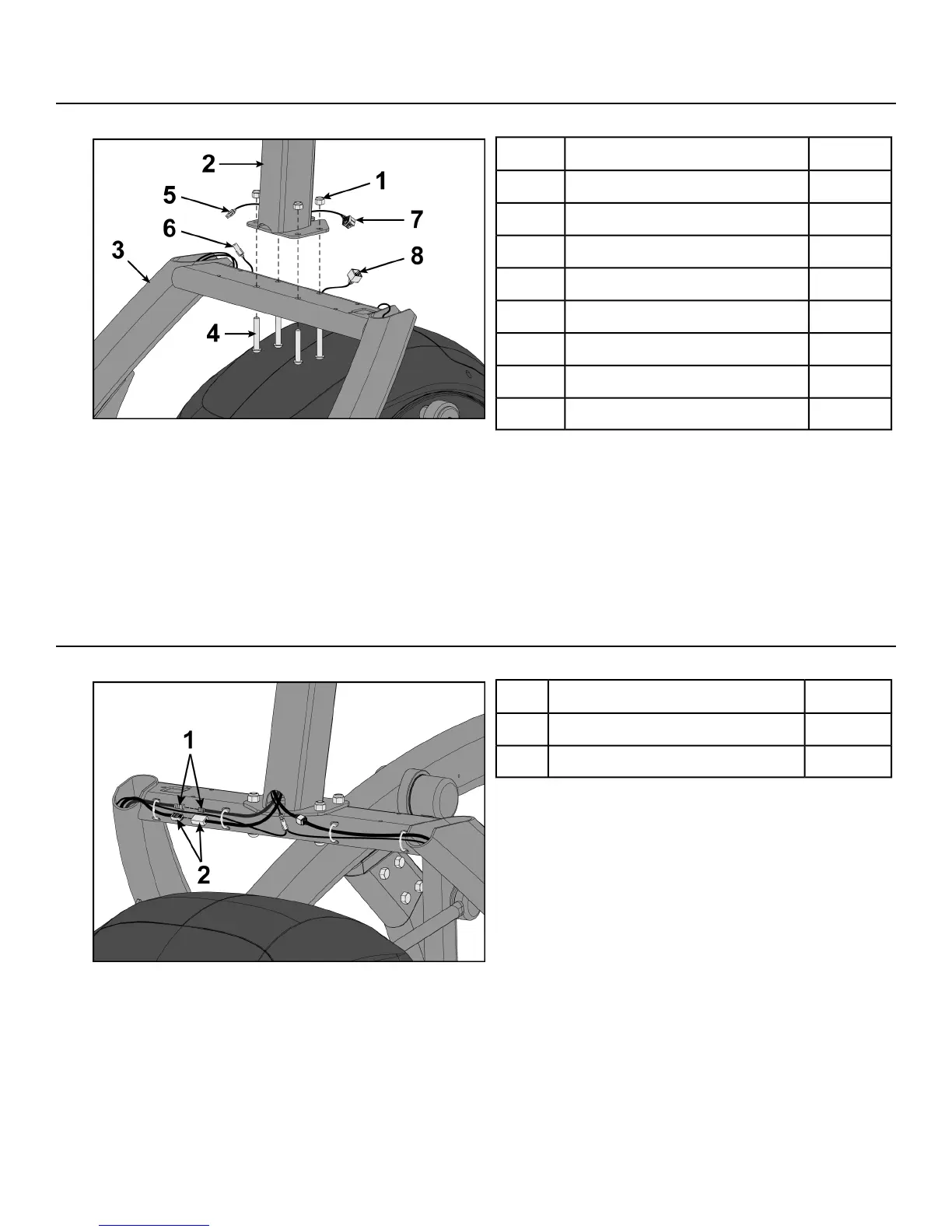

1. Place the console into position on the frame. Do not pinch cables while lowering the console.
Qty.Description
4Locknuts1
1Console2
1Frame3
4Bolts4
1Upper heart rate cable5
1Lower heart rate cable6
1Upper display cable7
1Lower display cable8
2. Insert (from underneath) the four bolts into the frame and console.
3. Thread the four locknuts onto the bolts by hand.
4. Tighten the four bolts and locknuts with a 7/32” Allen wrench and a 9/16” open-end wrench.
5. Plug the upper heart rate cable into the lower heart rate cable.
6. Plug the upper display cable into the lower display cable.
Install optional coax and CSAFE cables
1. Plug the coax cable connectors into each other and tighten threaded connector.
Qty.Description
1Coax cable connectors1
1CSAFE cable connectors2
2. Plug the CSAFE cable connectors into each other.
Page 16 of 82
Cybex 525AT Arc Trainer Part Number 5525-4 F
