2. Remove access cover.
Burn hazard. Do not touch flywheel until cool.

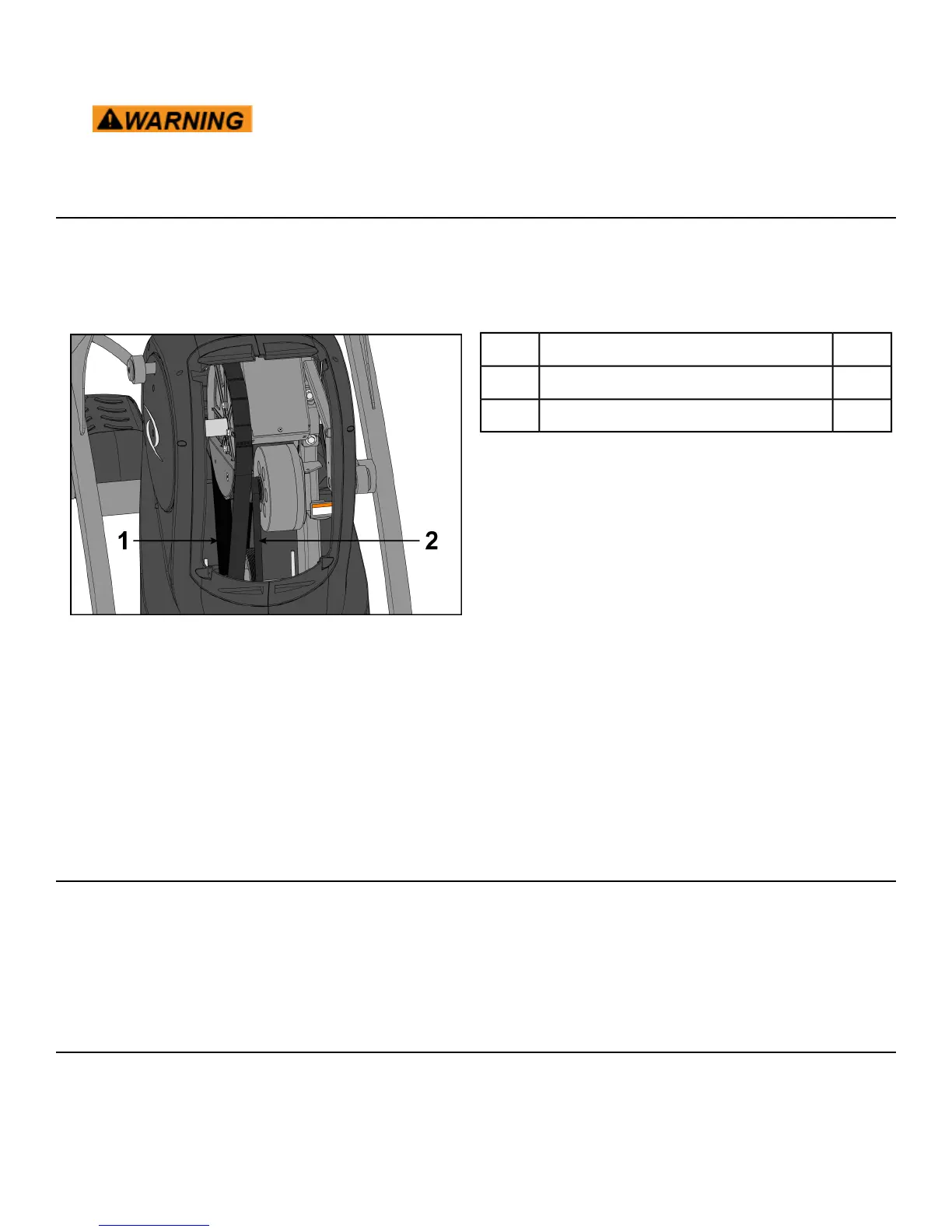

Inspect drive belts
There are two drive belts that may become loose, worn or cracked.
Unless the belts have been removed and not replaced properly, it is unlikely the belts will come loose
or need to be re-tensioned.
Qty.Description
1Primary drive belt1
1Secondary drive belt2
If a belt has cracks or appears worn, it must be replaced immediately by a qualified service technician.
Primary Belt
The wider of the two belts. It has grooves that keep it aligned on the large upper pulley.
Secondary Belt
The narrower of the two belts. It has grooves that keep it aligned on the flywheel's drive pulley.
Install access cover
Do not over tighten screws.
1.
Replace and tighten the two upper screws using a Phillips screwdriver.
2.
Replace and tighten the two lower screws using a Phillips screwdriver.
3. Test unit for proper operation.
Rechargeable Battery
The unit is designed with a 12 volt Lead-Acid rechargeable battery. The battery will recharge during
regular operation of unit or when the optional power adapter is plugged in.
Page 58 of 82
Cybex 525AT Arc Trainer Part Number 5525-4 F
