Cybex Free Weight Owner’s Manual
Assembly
Page 5-9
4. Install upper support bars (see steps 4A - 4E and Figures 5 and 6).
Locate one knurled support bar (#1), one smooth support bar (#2), four washers .50 (#4) and
four BHSCS .50-13 x 1.00 (#5).
Attach one end of the smooth support bar (#2) to one of the sides (#10 or #11), as shown in
Figure 5 using one washer .50 (#4) and one BHSCS .50-13 x 1.00 (#5). Do not tighten hardware
at this time.
Attach one end of the knurled support bar (#1) to the same side as Step 4B using one
washer .50 (#4) and one BHSCS .50-13 x 1.00 (#5).
Repeat Steps 4B and 4C to attach other side. See Figure 6.
Securely tighten all hardware.
A.
B.
C.
D.
E.
1

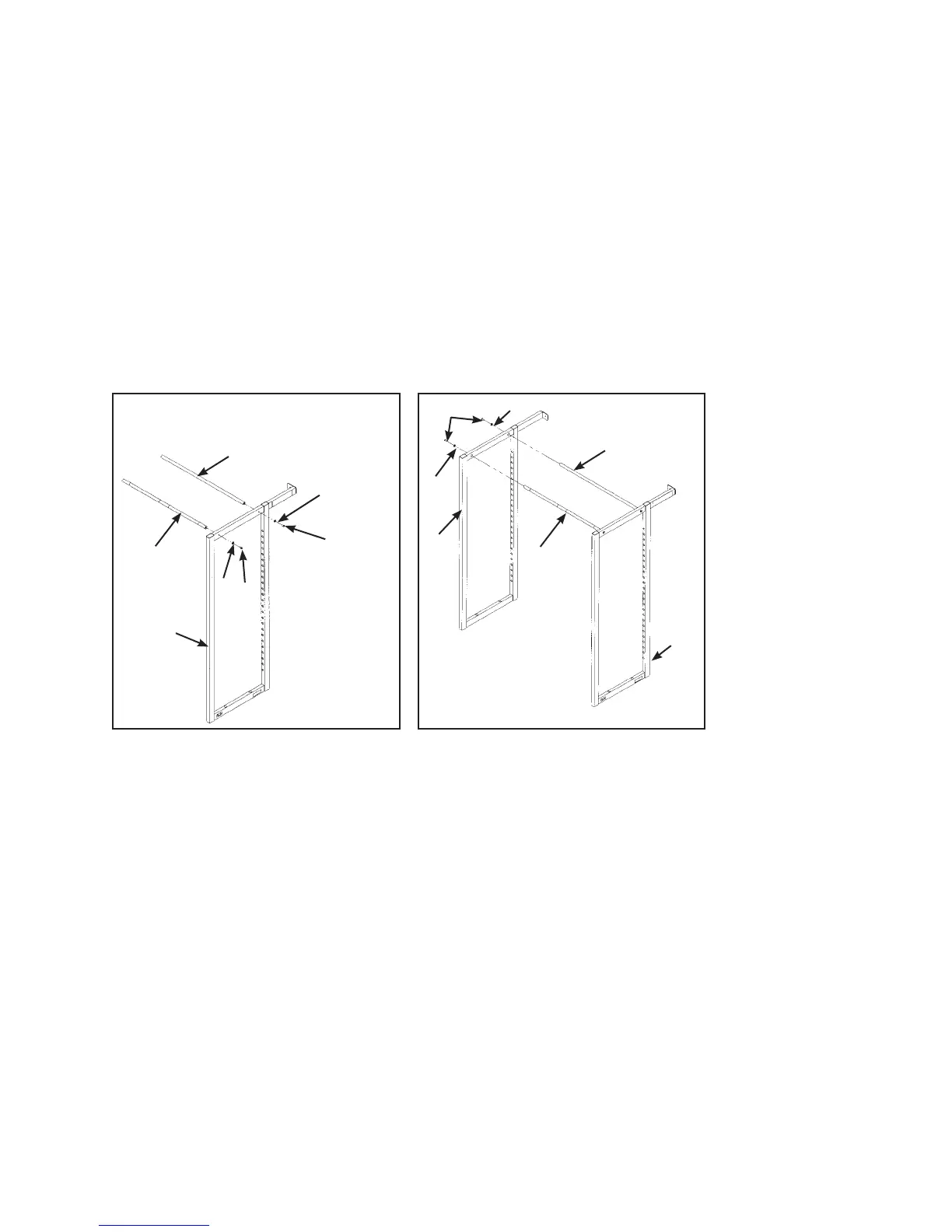

Figure 5
2
5
4
4
5
10
1
Figure 6
2
4
4
5
10
5. Attach lock assembly (see steps 5A and 5B).
Locate right hand lock assembly (#8), left hand lock assembly (#9) and Bar Rack
Accessory Instruction Sheet (#28).
Follow instruction sheet (#28) for attaching lock assembly.
A.
B.
11
NOTE: Install smooth support bar
nearest attachment or wall.
