Cybex Free Weight Owner’s Manual
Assembly
Page 5-11

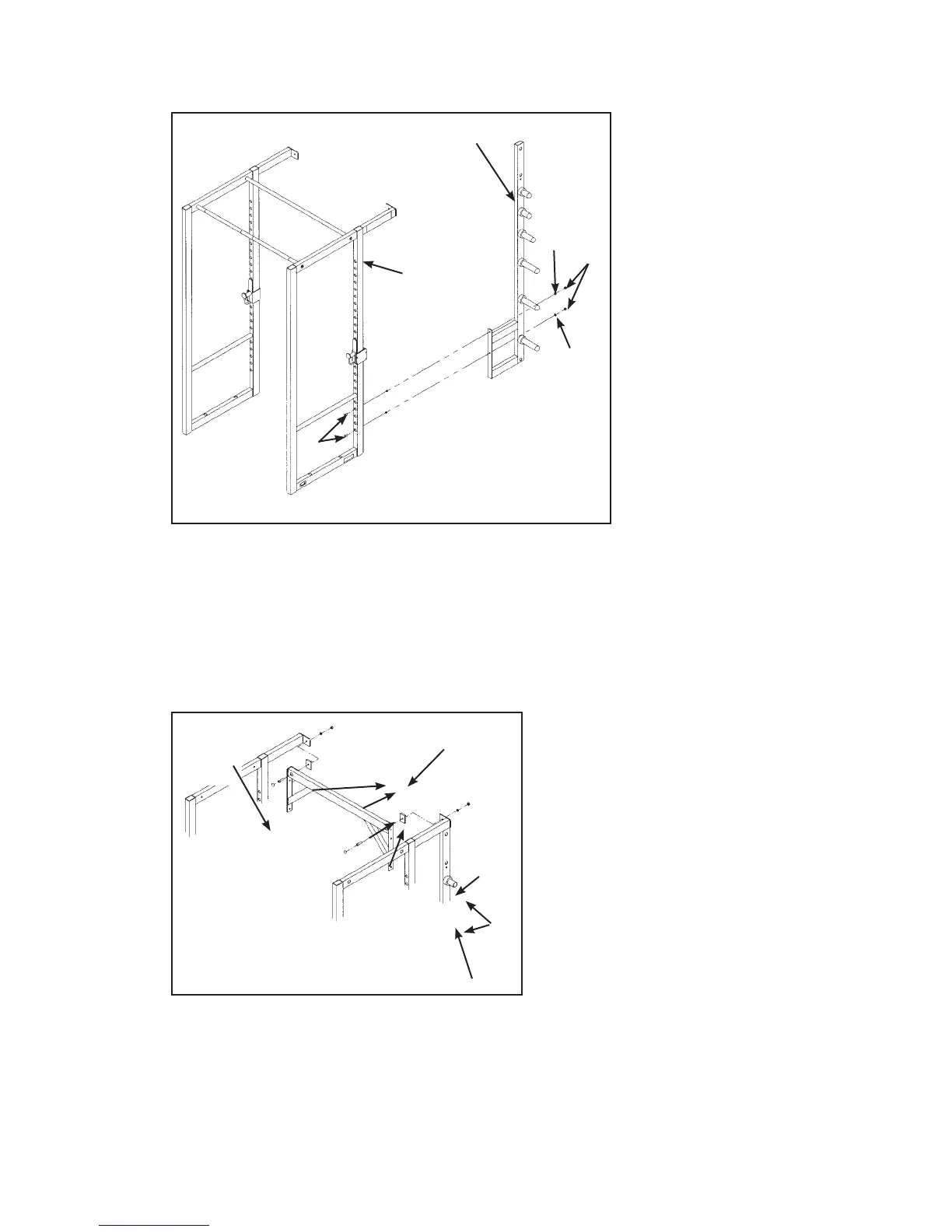

Position center brace (#21) as shown in Figure 9.
Attach center brace (#21) to Power Cage using two SHCS .50-13 x 1.00 (#16) and two plastic
inserts (#6) two hex nuts .50-13 (#15) and two lock washers .50 (#18). Do not tighten hardware
at this time. See Figure 9.
E.
F.
Figure 8
Power
Cage
20
16
15
18
18
Figure 9
Power
Cage
21
16
15
6
18
16
15
18
