Cybex 425T Treadmill Owner’s Manual
Assembly
and Setup
2-4
Figure 2
Hardware
Item Qty Part Number Description
13 14 HS-11977 Screw, SEMS, 8-32 x .38”, PNHD PHIL
14 9 HS-15706 Screw, 8-16 x .50”, PNHD, STL, BLK
15 6 HS-16929 Bolt, Whiz Lock, 3/8-16 x .625”, HXHD
16 4 HS-16939 Screw, SEMS, 10-32 x .75”, PNHD, BLK

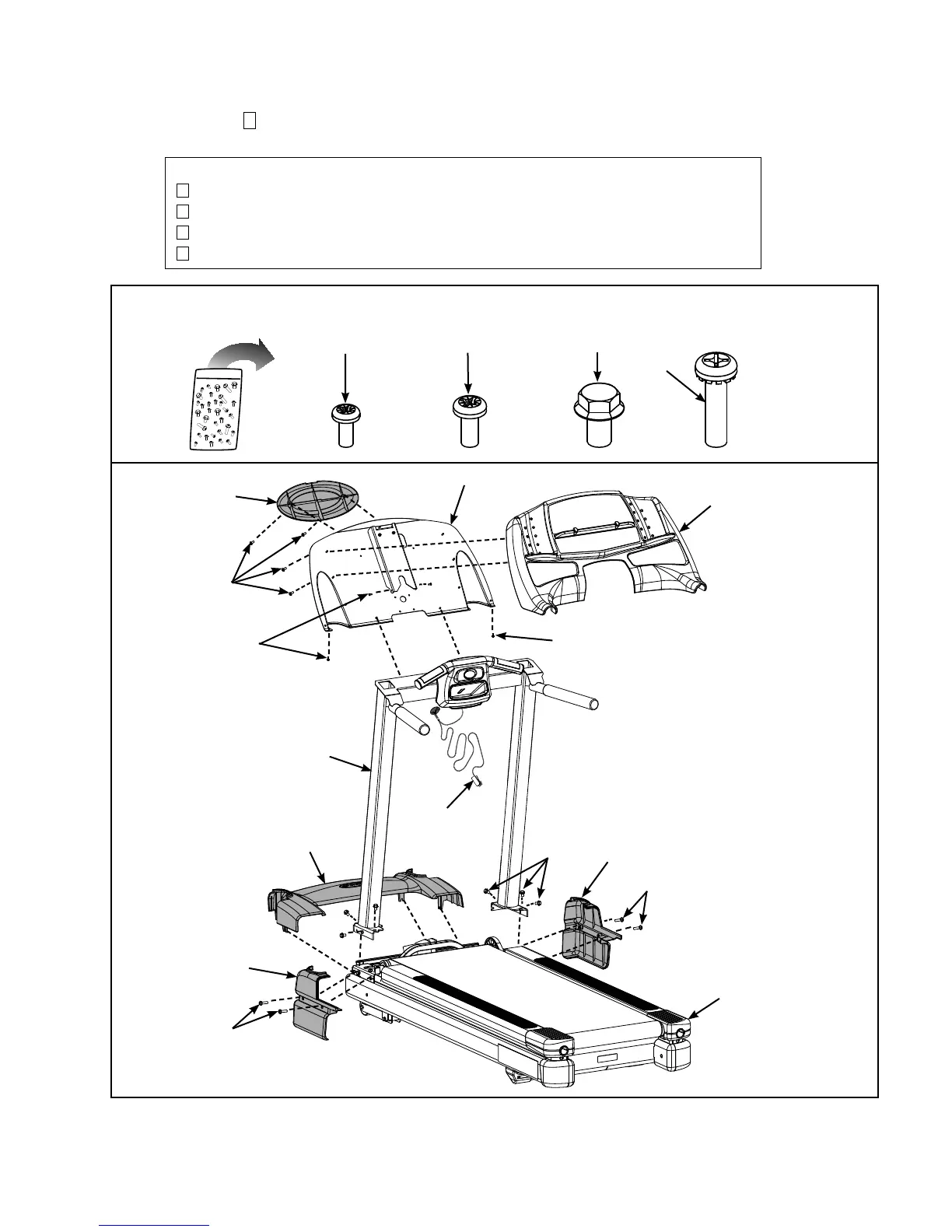

C. Check off ( ) each item in the hardware pack as you fi nd it. See Figure 2.
#1
#8
#16
#16
#15
#7
#6
#5
#14
#13
#13
#13
#14 #15
#16
#4
#2
#3
#17
