Cybex 425T Treadmill Owner’s Manual
Exploded
Views
Page D-6
ITEM QTY. PART NO. DESCRIPTION
10 1 AX-19239 Assembly, Motor Cover
15 2 DE-19360 Decal, Side Labels, Black
15 2 DE-19353 Decal, Side Labels, Silver
18 1 EC-18573 Sensor, Speed
22 4 FS-16511 Plate, Rear Rubber Foot Mounting
23 1 FS-19213 Cable, Connector Plate, 425T
31 4 HS-15706 Screw, 8-16 x .50, PNHD, STL,
BLK ZN CLR, TYP WB
32 10 HS-16509 Screw, SLFTP, 10 x .5, PNHD, PLT,
TYP B, PT-S
35 8 HS-16939 Screw, SEMS,10/32 x .75, PNHD,
BLK ZN, EXT
39 1 HS-41006 Screw, SLFTP, 10/24 x 1.38, PNHD
PHIL, SST, BLK, TT
46 2 HX-19981 Bushing, Deck, 5/16 - 18
52 2 HX-19102 Rubber Foot, Rear
57 1 PL-18929 Cover, Rear, Outer Right
58 1 PL-18930 Cover, Rear, Inner Right
59 1 PL-18932 Cover, Rear, Outer Left
60 1 PL-18933 Cover, Rear, Inner Left
ITEM QTY. PART NO. DESCRIPTION
61 1 PL-18990 Cover, Motor, Front, 425T
62 1 PL-18991 Cover, Motor, Right ,425T
63 1 PL-18992 Cover, Motor Left,425T
94 1 DE-19198 Decal, Cybex
200 1 SCK-18765 Assembly, Top Platform, Right
201 1 SCK-18764 Assembly, Top Platform, Left
203 1 AF-18461 Weldment, Frame, 425T
204 1 DE-18766 Decal, Safety Walk
205 6 HS-18311 Screw, 8-16 x .75”, PNHD, STL,
BLK ZN CLR, TYP WB
206 1 PL-18931 Cover, Rear, Top Left
207 1 PL-19120 Cover, Rear, Bottom Left
208 1 PL-18928 Cover, Rear, Top Right
209 1 PL-19118 Cover, Rear, Bottom Right
210 1 DE-19441 Decal, 425T, Black
210 1 DE-19442 Decal, 425T, Silver 877
222 2 DE-22327 LABEL,BLACK,INTELLIGENT
SUSPENSION 3
223 2 DE-22328 LABEL,SILVER,INTELLIGENT
SUSPENSION 3
10
94
39
23
46
18
35
35
35
35
63
35
201
223222
206
204
15
32
52
22
32
32
59
60
31
52
22
32
31
58
57
32
62
35
203
61
31
205
207
205
31
200
204
208
209
15
210
210
Serial
Number

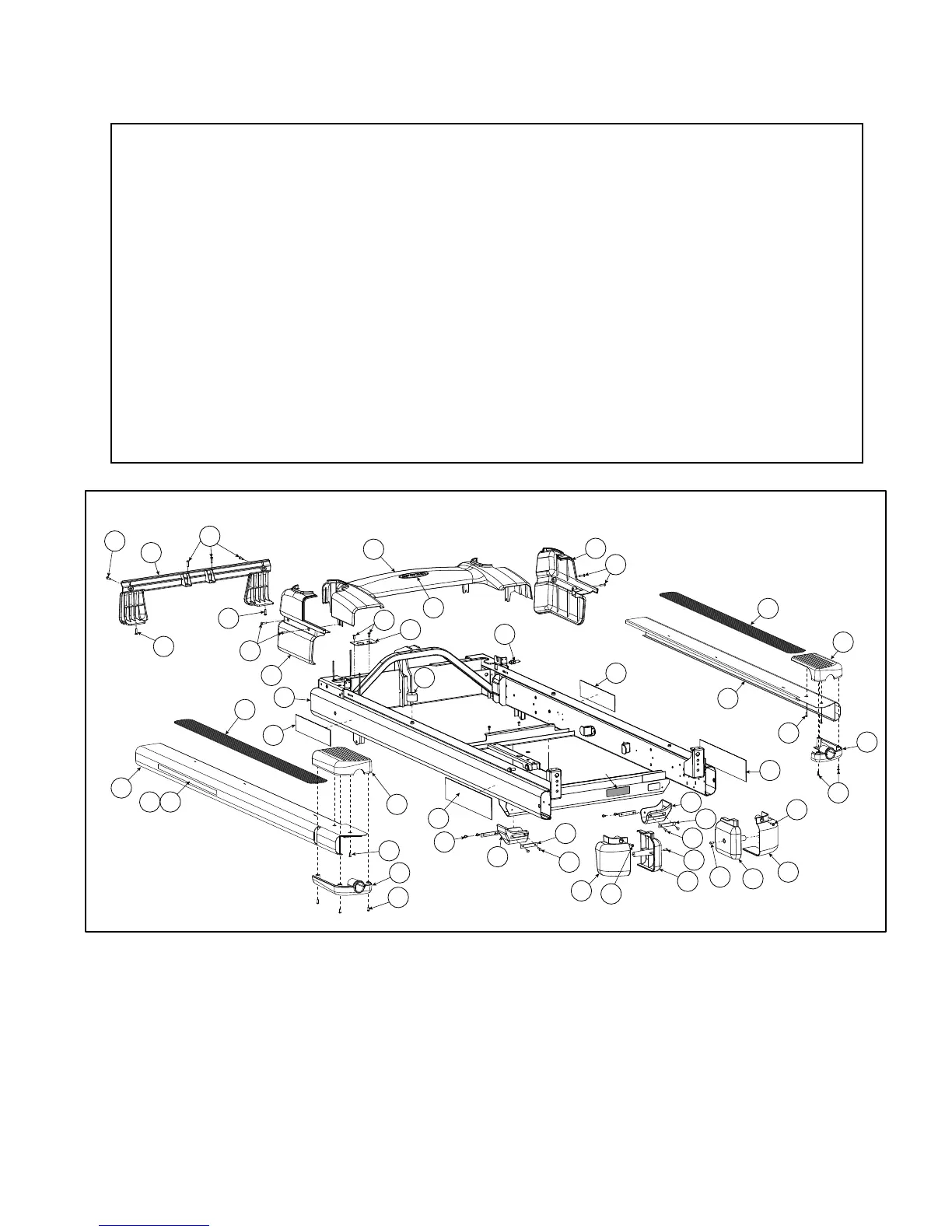

425T Frame Assembly
