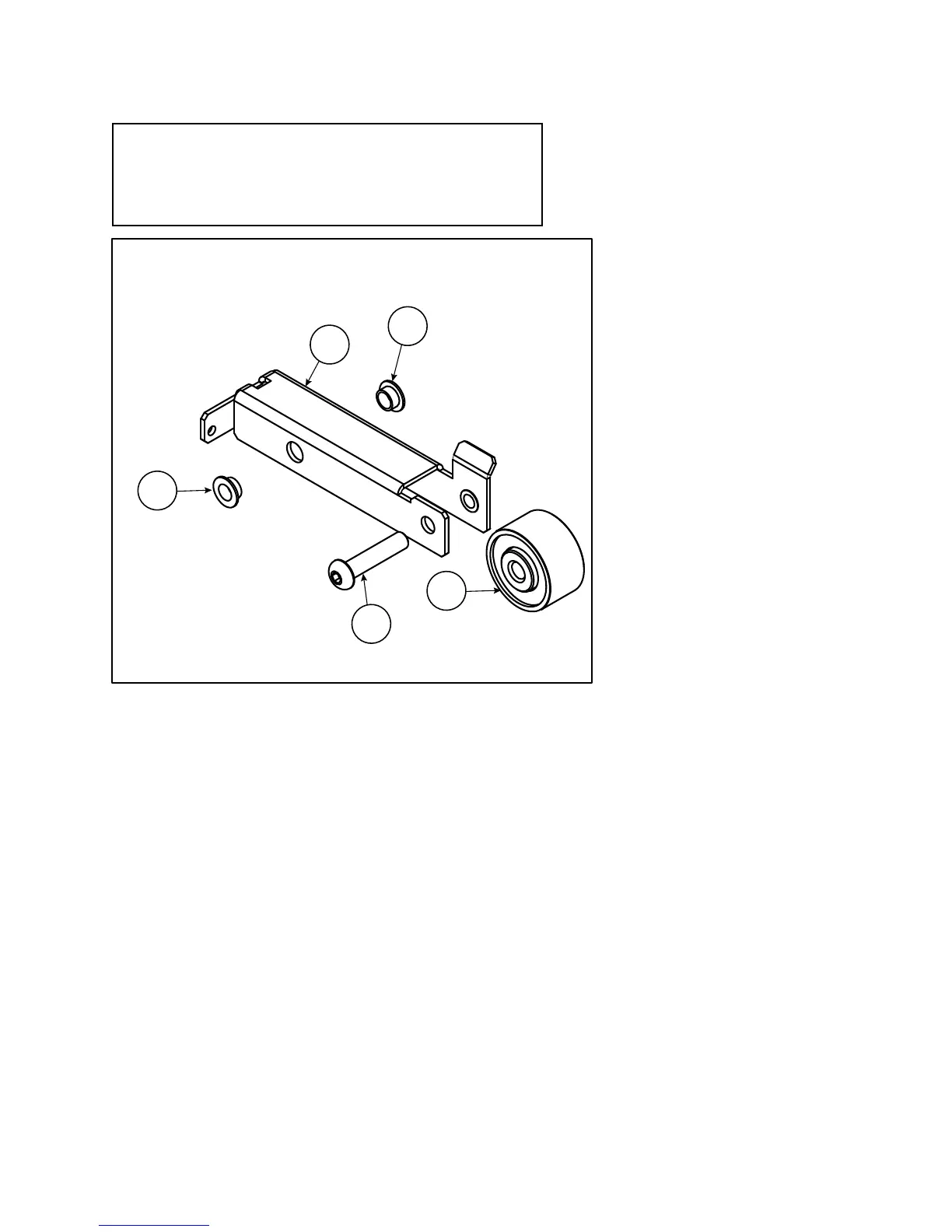

Cybex 425T Treadmill Owner’s Manual
Exploded
Views
Page D-7
ITEM QTY
.
P
ART
NO.
DESCRIPTION
95 1
AF-18728 Bracket,
Idler
96
1
HB-19135
Idler Wheel, 1.88 x 1.0
97
2
HB-18056
Bushing, Flange, .375 x .469 x .25
98
1
HS-19338
Screw
, 3/8 - 16 x 1.75, SCHD BTN, BLK, ZN
98
95
97
97
96
425T Idler Pulley
Assembly
80
82
Table of Contents
Default Chapter
5
Table of Contents
5
About this Manual
7
FCC Compliance Information
7
1 Safety
9
Important Voltage Information
9
Grounding Instructions
9
Important Safety Instructions
10
Warning Decals
12
Caution Decals
15
Emergency Stop Key (E-Stop)
15
2 Assembly and Setup
17
Warnings/Cautions
17
Choosing and Preparing a Site
17
Electrical Power Requirements
18
Assembling the Treadmill
18
B. Place the Console Back (#4) in the Correct Position on the Upright Assembly (#3). See Figure
22
C. Using a Philips Head Screwdriver Install Two Screws 8-32 X .38" (#13) to Hold the Console Back 4) in Place. Do Not Fully Tighten at this Time. See Figure
22
Figure
23
Testing the Treadmill Operation
26
Setting Operation Options
27
3 Operation
29
Terms and Symbols Used
29
Quick Operation Guide
30
Detailed Operation Guide
30
Stopping the Treadmill
32
Control During Operation
33
Data Readouts
34
Displaying Heart Rate
35
Heart Rate Zone
36
Meaning of % Grade
36
Use of Programs
37
Audio/Video
38
4 Preventive Maintenance
39
Warnings/Cautions
39
Regular Maintenance Activities
39
Cleaning Your Treadmill
39
Running Belt Maintenance
41
Other Preventive Maintenance
43
Service Schedule
44
5 Customer Service
47
Contacting Service
47
Serial Number and Voltage
47
Return Material Authorization (RMA)
48
Damaged Parts
48
Ordering Parts
49
Appendix A - Technical Specifications
51
Appendix B - Program Overview
53
Appendix C - Parts List
71
Appendix D - Exploded View
75
Appendix E - Schematic
83
