CYBEX LCX-425T User Manual

Cybex 425T Treadmill Owner’s Manual

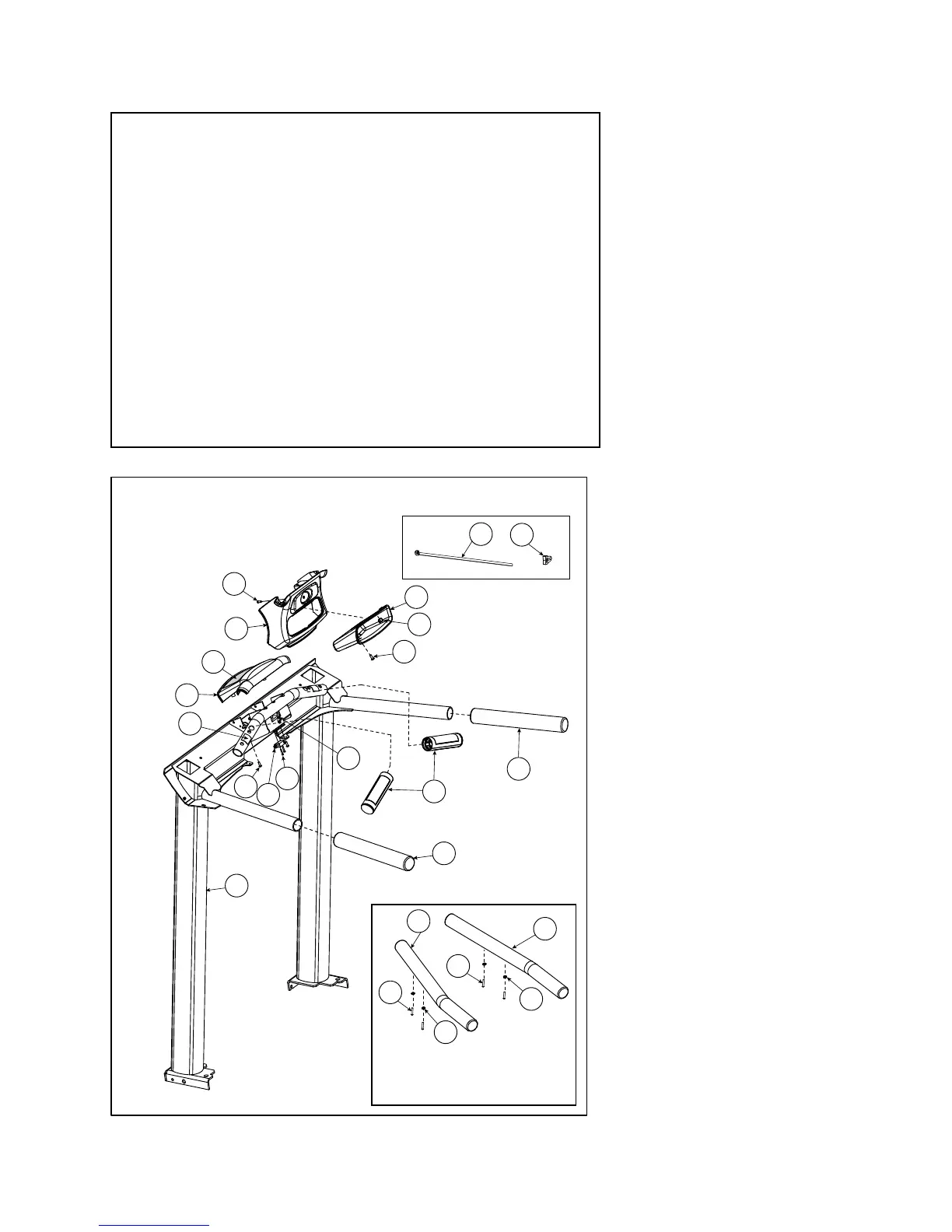

Exploded
Views
Page D-8
ITEM QTY. PART NO. DESCRIPTION
6 1 SK-17827 Assembly, Contact Grip, Pair
19 1 EH-00986 Wire Tie, 9”
20 1 EH-10291 Base, Wire Tie
29 2 HS-00156 Screw, 4-40 x .62, PNHD PHIL
31 10 HS-15706 Screw, 8-16 x .50, PNHD, STL, BLK ZN CLR, TYP WB
39 1 HS-41006 Screw, SLFTP, 10/24 x 1.38, PNHD PHIL, SST, BLK, TT
47 1 HX-20799 Plug, Plastic, 9/16”, BLACK
48 4 HX-17788 Tape, Double Sided, .032 Thick
50 2 HX-18901 Grips, 425 Upright Handrail
56 1 PL-18773 Plunger, E-Stop
65 1 PL-19093 Cover, Handle Lower
66 1 PL-19094 Accessory Tray, 425T Console
68 1 W-18535 Switch, Limit
202 1 SCK-18486 Weldment, Upright
301 1 AX-19356-X Assembly, Cover, Top CHR
318 1 DE-19189-X Label, Warning*
42 4 HW-00180 Washer, Split Lock 1/4”
410 1 AX-19735 Assembly, extended handrail, Left, 425T 445T
411 1 AX-19758 Assembly, extended handrail, Right, 425T 445T
413 4 HS-18127 Bolt,1/4-20 x 1.25”,BHCS,SS,Black
425T Upright Assembly
66
301
65
56
39
6
50
50
31
68
29
202
318
48
31
47
Not Shown
Wire Tie and Base
20
19
Extended Handrail Option
411
42
410
413
42
413
CK-19960 Left handrail kit
CK-19961 Right handrail kit
CK-19962 Both handrails kit
