CycleOps Joule 3.0 User Manual

Joule 3.0 User Guide page 9
Chapter 1: Starting Out
3. Slide Joule 3.0 forward into
mount until it snaps into place.
5. To remove Joule 3.0 , press down on
the release lever and slide Joule 3.0
back. Note: additional sticky pads may
be used if release lever is not acces-
sible due to stem length or angle.

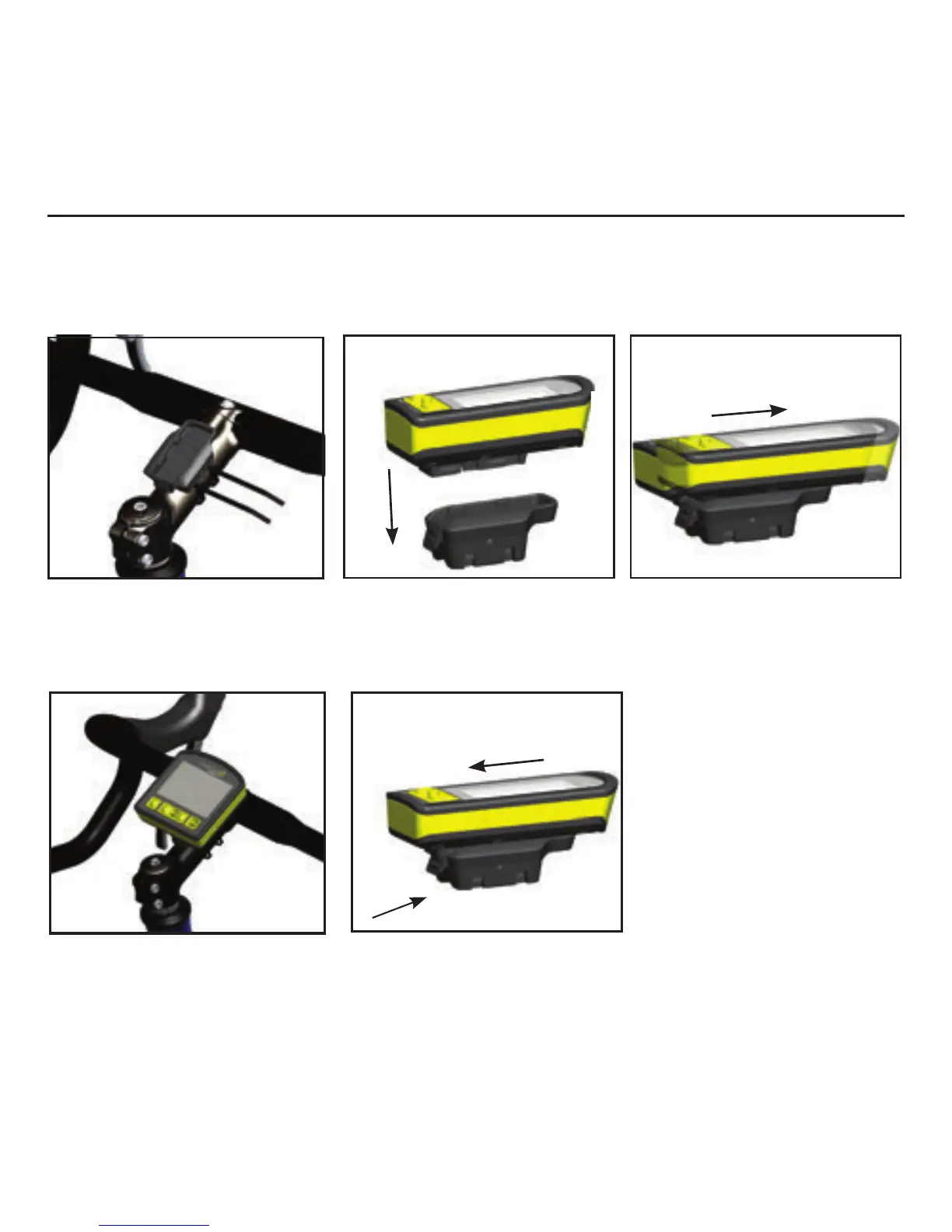

Installing CycleOps Joule 3.0 Using Standard Mount
The standard mount can be installed in either stem or handlebar orientations for use on any
handlebar or stem. The mount is preassembled for the stem orientation.
1. For stem orientation insert two
zip ties through bottom of mount
and attach sticky pad. Secure to
stem.
2. Position Joule 3.0 slightly behind
mount.
4. Be sure to check Joule 3.0 is
secure in mount before riding.
Press to
release

CycleOps Joule 3.0 Specifications

General

Brand	CycleOps
Model	Joule 3.0
Category	Bicycle Accessories
Language	English
