PRS-7910 communication unit comprises standard 2U half-level chassis. It adopts 32-bit
dual-core high preference processor as its central unit for the communication management,
database arrangement, advanced application, analysis and fault detection.
The PRS-7910 consists of high-performance built-in processor, FLASH, SRAM, SDRAM, Ethernet
controller and other peripherals. Its functions include management of the complete device, human
machine interface, communication and waveform recording, etc.

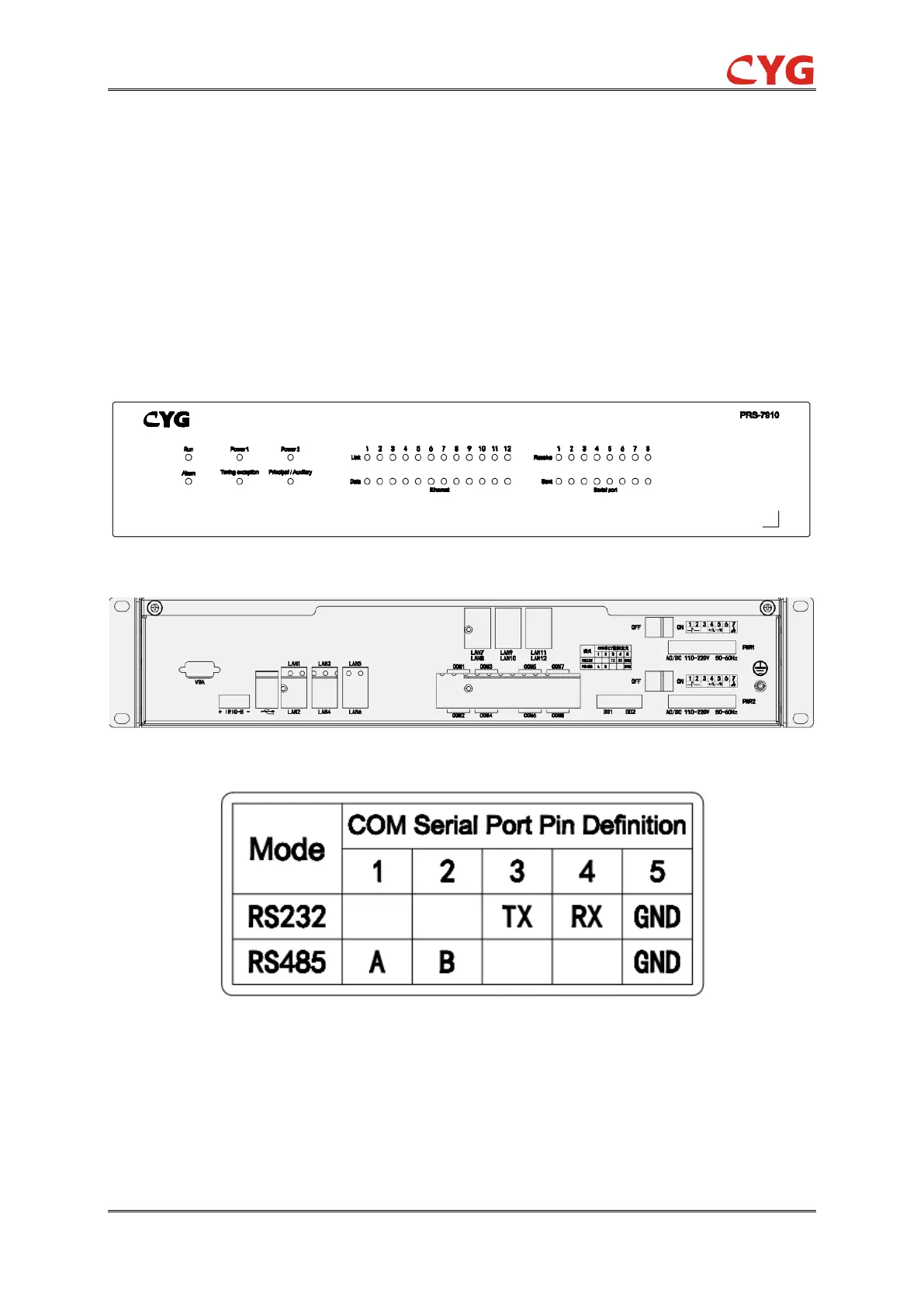

PRS-7910 Front Panel
PRS-7910 Back Panel
PRS-7910 Serial Port Definition
Figure 6.1.1 Terminal view example (2U 19" rack)
6.2 Human-Machine Interface
The device don’t equip with LCD display. However, you use the specialized software Virtual LCD
tool to connect to the device as shown below.
