7D-Link DIR-878 User Manual
Section 1 - Product Overview
Hardware Overview

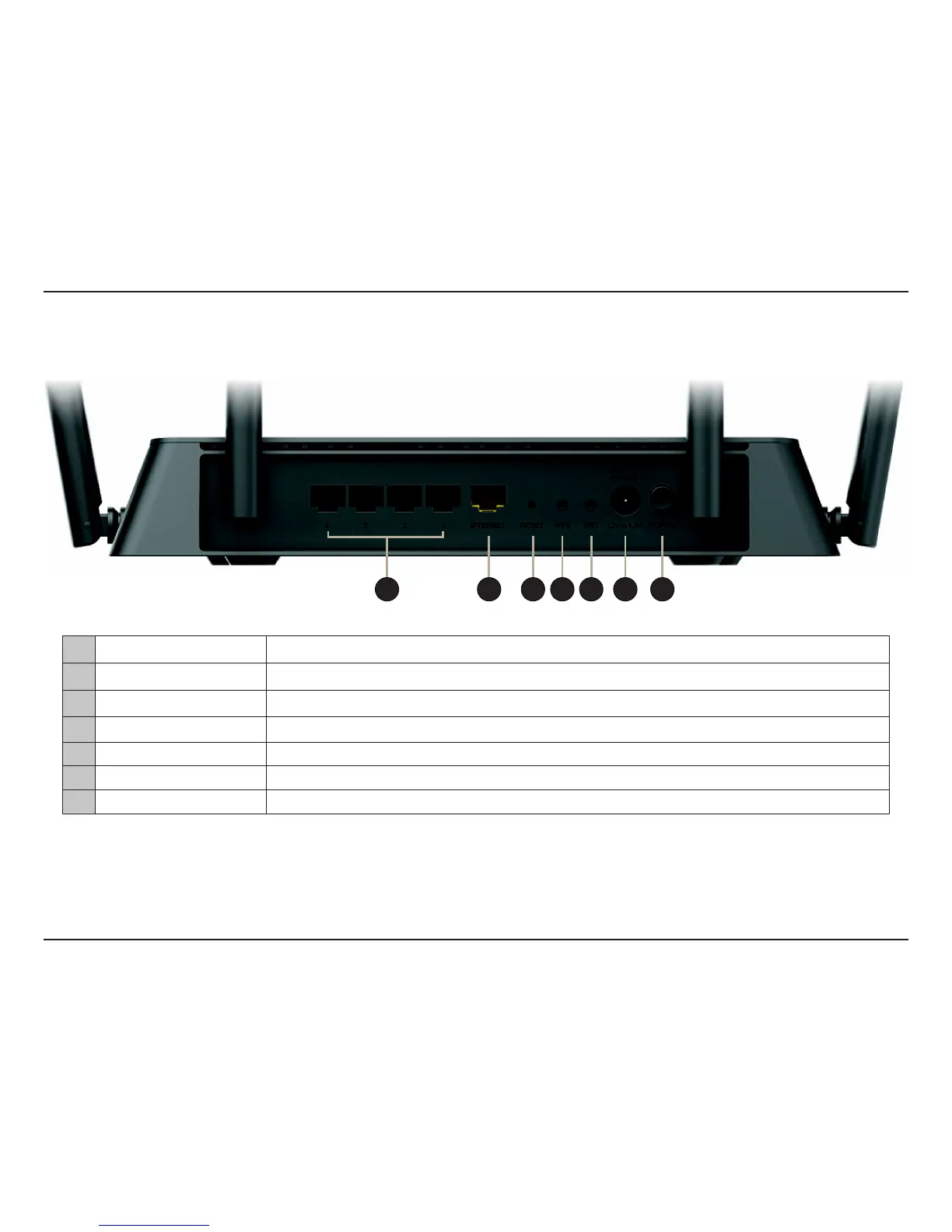

Back Panel
1 (JHBCJU-"/1PSUTConnect Ethernet devices such as computers, switches, storage (NAS) devices, and game consoles.
2 (JHBCJU8"/1PSUUsing an Ethernet cable, connect your broadband model to the port.
3 Reset Button Insert a paperclip in the hole, wait for 10 seconds, and release to reset the router to default settings.
4 WPS Button Press to start the WPS process and automatically create a secure connection to a WPS client.
5 8J'J#VUUPOPress this button turn o or turn on the wireless networks.
6 Power Connector Connector for the supplied power adapter.
7 Power Button Press the power button to power the device on and o.
3 4 5 6 721
