DAP-1610 AC1200 Wi-Fi Range Extender
User Manual
Configuring via Web-based Interface
Changing LAN IPv4 Address
This configuration step is available for the Access point, Repeater, and Client modes.
1. Select the Automatic obtainment of IPv4 address to let DAP-1610 automatically
obtain the LAN IPv4 address.
!
If the extender obtains the LAN IPv4 address automatically, then after finishing the Wizard
you can access the web-based interface using the domain name (by default,
dlinkap.local ) with a dot at the end.
If you want to manually assign the LAN IPv4 address for DAP-1610, do not select the Automatic
obtainment of IPv4 address checkbox and fill in the IP address and Netmask fields and, if
needed, the Gateway IP address field. Make sure that the assigned address does not coincide
with the LAN IPv4 address of the router to which your device connects.

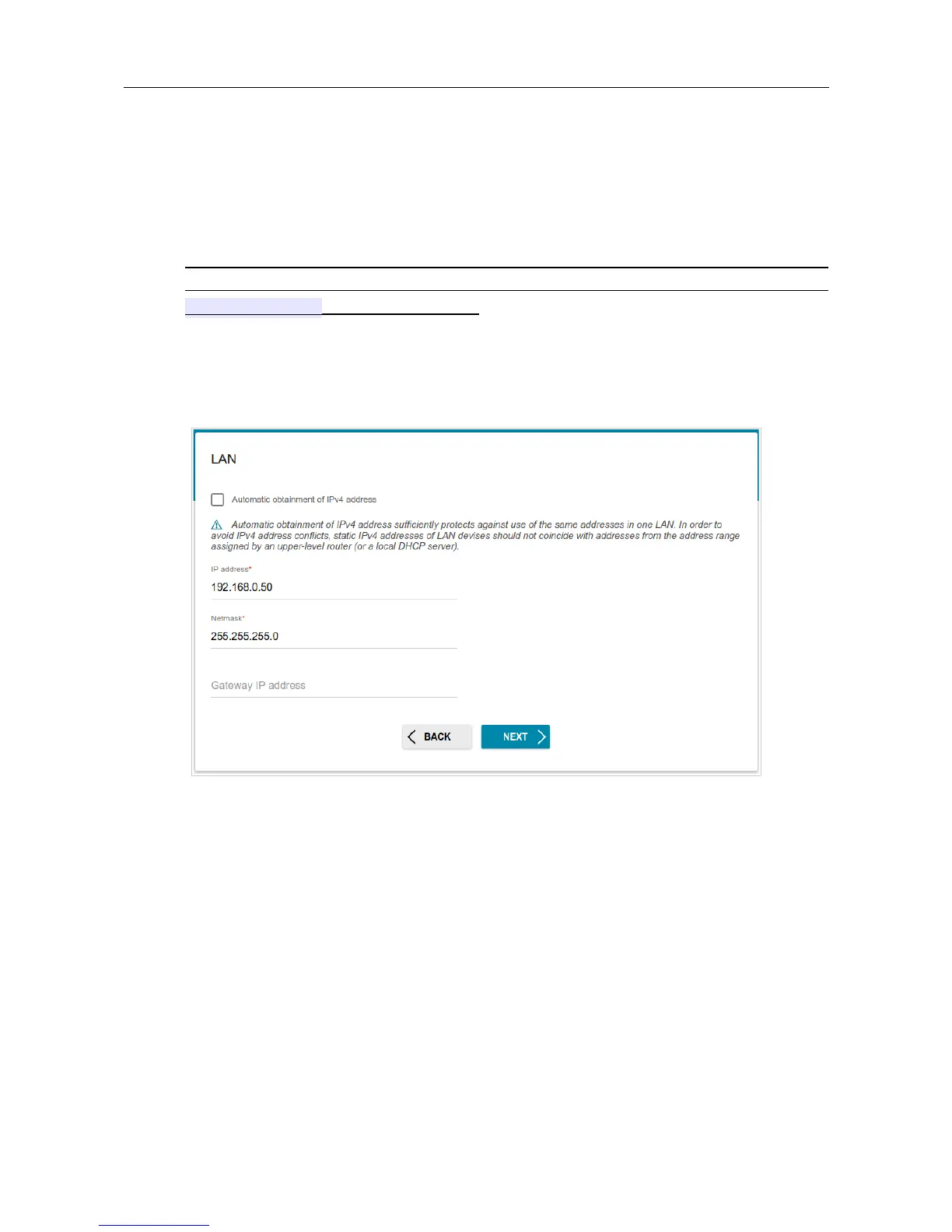

Figure 24. The page for changing the LAN IPv4 address.
2. Click the NEXT button to continue or click the BACK button to return to the previous page.
Page 29 of 91
