Section 2 - Installation
Mounting the Device
If you plan to install the DAP-3711 on a pole, orient the front of the access point (the side without the LEDs) toward the intended
coverage area. The radio antennas transmit through the front of the access point but not through the reverse side (where the
bracket is).
Be sure to install the device at a height that ensures that the alignment between the devices is visible and there is no obstruction
in the middle.
Checking the Signal Strength
Before xing the device in place, slowly pan the DAP-3711 from side to side and check the LED indicator to nd the position
where the signal is strongest.

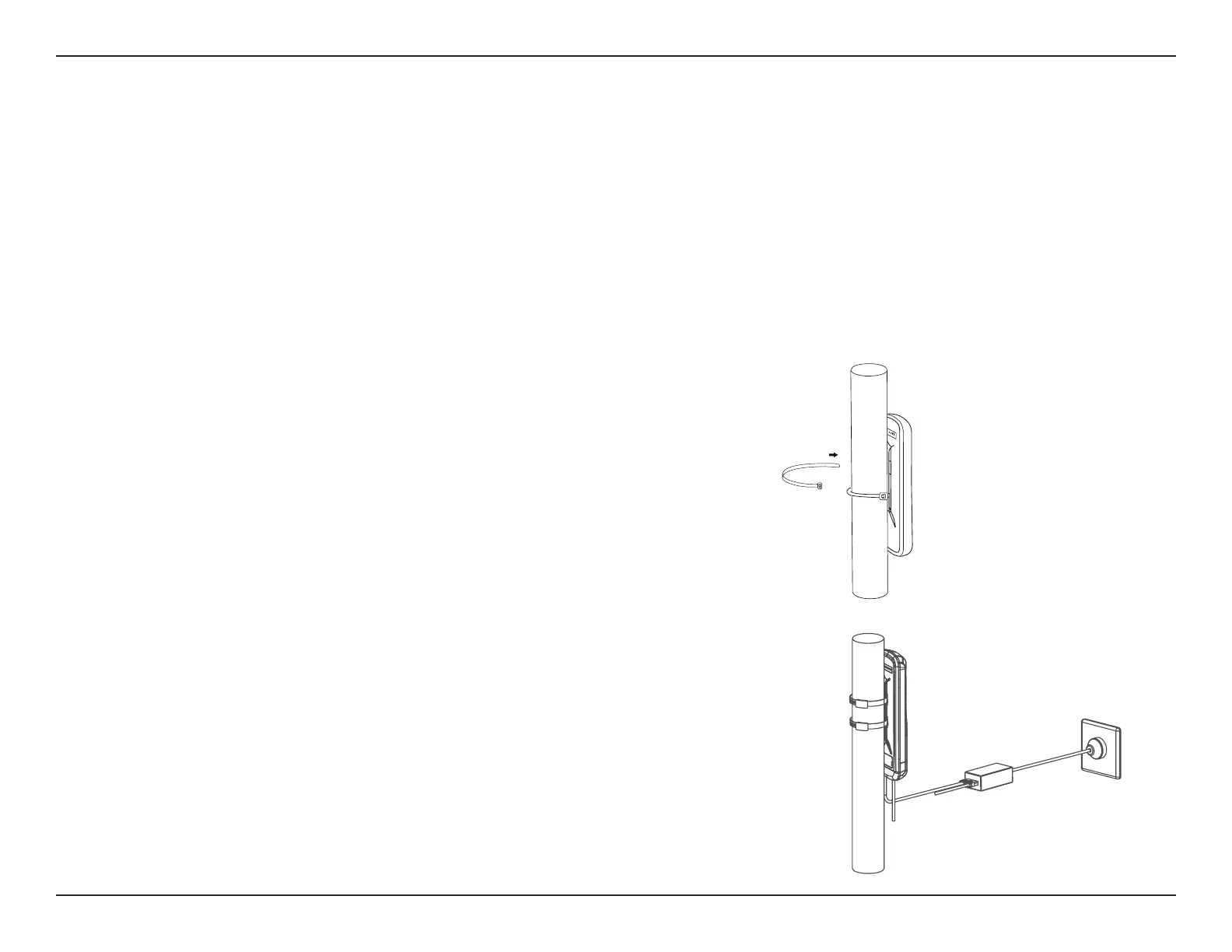

Mounting on a Pole
1.Connect an Ethernet cable to the LAN port on the DAP-3711.
2.Place the DAP-3711 against the pole where you want it to be positioned.
3. Wrap the metal mounting ties around the pole and thread them through
the holes on the DAP-37

D-Link DAP-3711 Specifications

General

5 GHz	Yes
2.4 GHz	-
Bandwidth	0.08 GHz
Frequency band	5.745 - 5.825 GHz
Channels quantity	2 channels
Fit AP mode features	Wireless distribution system (WDS)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Maximum outdoor range	5000 m
Ethernet LAN data rates	100, 1000 Mbit/s
Transmitting power (CE)	27 dBm
Maximum data transfer rate	867 Mbit/s
Security algorithms	128-bit AES
Service Set Identifier (SSID) features	SSID broadcast
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
AC input voltage	24 V
Power consumption (typical)	15 W
Placement	Pole
Certification	CE, FCC
Product color	White
LED indicators	LAN, Power, Signal strength, WLAN
Housing material	Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code	IP66
Antenna type	Internal
Antenna gain level (max)	15 dBi
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	0 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	45 mm
Width	288 mm
Height	88 mm
Weight	600 g
