D-Link DAP-3711 User Manual

13D-Link DAP-3711 User Manual
Section 2 - Installation

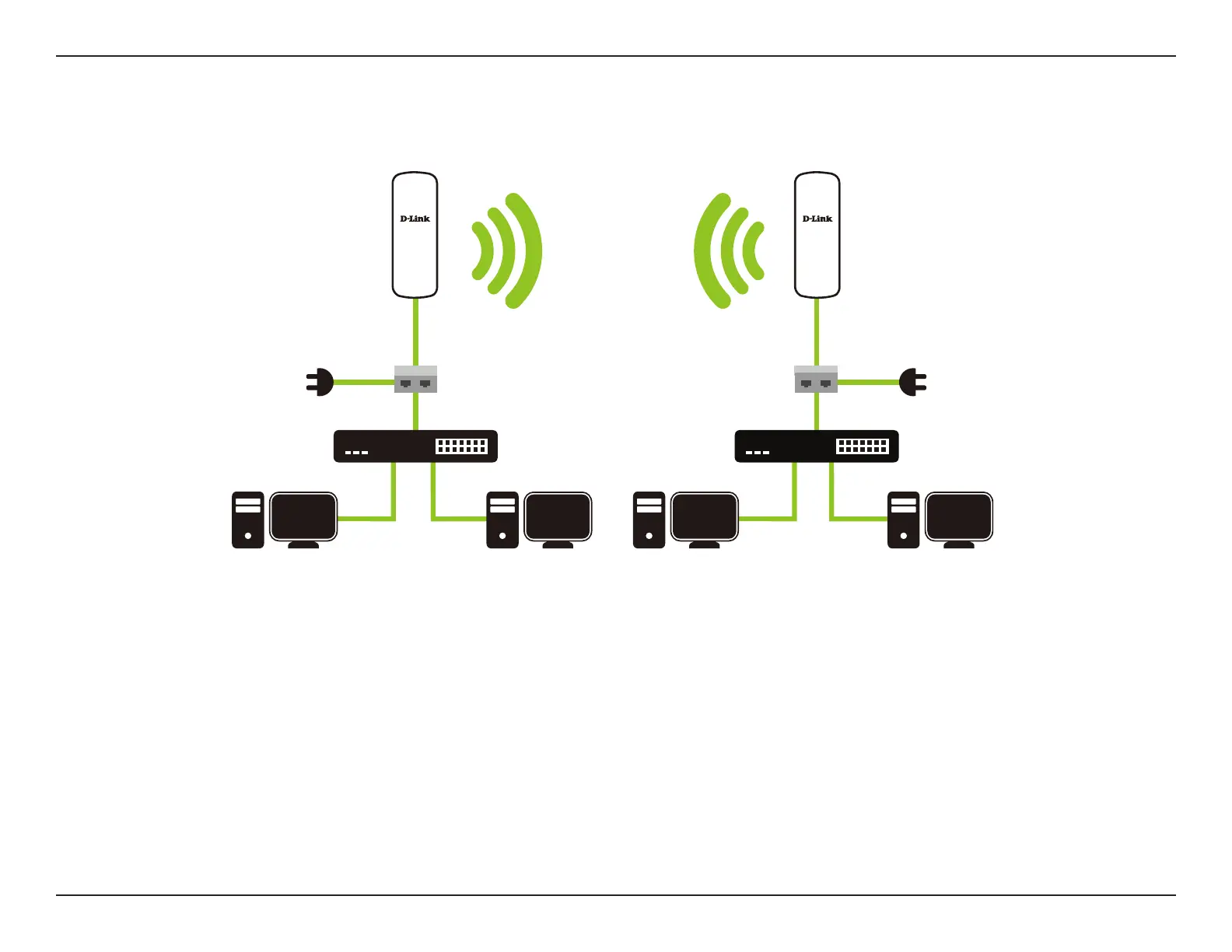

Once completed, your network will resemble the following diagram.
Wireless Installation Considerations
The D-Link Long Range 802.11ac Wireless Bridge lets you access your network using a wireless connection from virtually
anywhere within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location
of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending
on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless
range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link access point and other network devices to a minimum. Each wall
or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters). Position your devices so that the number of walls
or ceilings is minimized.
PoE injectorPoE injector
DAP-3711DAP-3711
Switch
PC1
PC2
Switch
PC3
PC4
AP modeClient mode

D-Link DAP-3711 Specifications

General

5 GHz	Yes
2.4 GHz	-
Bandwidth	0.08 GHz
Frequency band	5.745 - 5.825 GHz
Channels quantity	2 channels
Fit AP mode features	Wireless distribution system (WDS)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Maximum outdoor range	5000 m
Ethernet LAN data rates	100, 1000 Mbit/s
Transmitting power (CE)	27 dBm
Maximum data transfer rate	867 Mbit/s
Security algorithms	128-bit AES
Service Set Identifier (SSID) features	SSID broadcast
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
AC input voltage	24 V
Power consumption (typical)	15 W
Placement	Pole
Certification	CE, FCC
Product color	White
LED indicators	LAN, Power, Signal strength, WLAN
Housing material	Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code	IP66
Antenna type	Internal
Antenna gain level (max)	15 dBi
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	0 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	45 mm
Width	288 mm
Height	88 mm
Weight	600 g
