D-Link DCS-2670L User Manual

20D-Link DCS-2670L User Manual
Section 3: Conguration

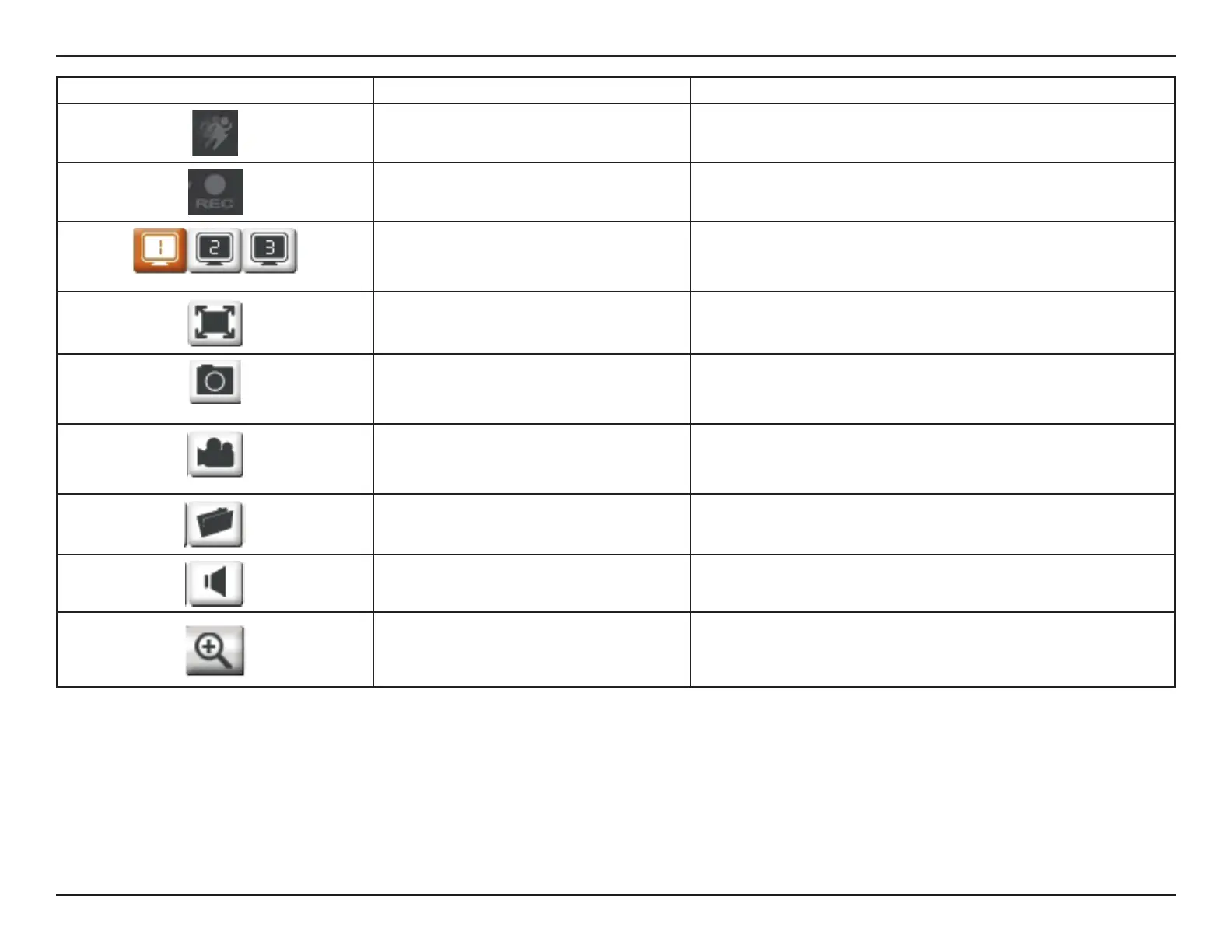

Icon Button Name Function
Event Trigger Indicator
This indicator will change color when a trigger event occurs,
such as when motion or sound is detected.
Recording Indicator
When a recording is in progress, this indicator will change
color.
Proles
Use these buttons to switch between video proles. Refer
to Audio and Video on page 33 for more information on
setting up proles.
Full Screen Switches to a full screen view of the camera video.
Snapshot
Takes a snapshot of the image currently displayed on the
screen and saves it to the hard drive in the folder specied
using the Storage folder button.
Video Recording
Triggers the camera’s recording function. This will record the
video displayed on the screen and saves it to the hard drive in
the folder specied using the Storage folder button.
Storage Folder Sets the storage folder for snapshots and video recordings.
Speaker
Sends the audio received from the camera’s microphone
through to the PC’s speakers.
Magnify Use this button to zoom in on the live view stream.

D-Link DCS-2670L Specifications

General

Type	IP security camera
Certification	CE, CE LVD, FCC, ICES, RCM
Day/night mode	Yes
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Night vision distance	4.57 m
Cables included	AC, LAN (RJ-45)
Number of cameras	1
Sensor type	CMOS
Optical sensor size	1/2.7 \
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264
Supported graphics resolutions	640 x 360, 800 x 448, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Focus adjustment	2.0
Fixed focal length	1.5 mm
Maximum aperture number	2
Closest focusing distance	0.3 m
Minimum illumination	0 lx
Form factor	Dome
Mounting type	Ceiling
Product color	Silver, White
LED indicators	Status
Protection features	Waterproof
International Protection (IP) code	IP65
Interface	RJ-45/WLAN
Audio formats supported	AAC, G.711
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Wi-Fi data rate (max)	300 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv6, IPv4, ARP, TCP, UDP, ICMP, DHCP client, NTP client (D-Link), DNS client, DDNS client (D-Link), SMTP client,
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
Maximum memory card size	128 GB
Security algorithms	WPA, WPA2
AC input voltage	100 - 240 V
DC output current	1.2 A
DC output voltage	5
Power source type	AC
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)	-
Power consumption (typical)	5 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-25 - 45 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1325 mm
Pallet height (sea)	2039 mm
Pallet gross weight (air)	316000 g
Pallet gross weight (sea)	492400 g
Quantity per pallet (air)	300 pc(s)
Quantity per pallet (sea)	480 pc(s)
Shipping (inner) case width	294 mm
Shipping (inner) case height	238 mm
Shipping (inner) case length	610 mm
Shipping (inner) case weight	9800 g
Shipping (inner) case net weight	9000 g
Number of cartons per pallet (air)	30 pc(s)
Number of cartons per pallet (sea)	48 pc(s)
Quantity per shipping (inner) case	10 pc(s)

Weight and Dimensions

Depth	102.1 mm
Width	75.7 mm
Height	89.5 mm
Weight	360 g
Package depth	208 mm
Package width	135 mm
Package height	115 mm
Package weight	900 g
