Section 3: Conguration
Setup

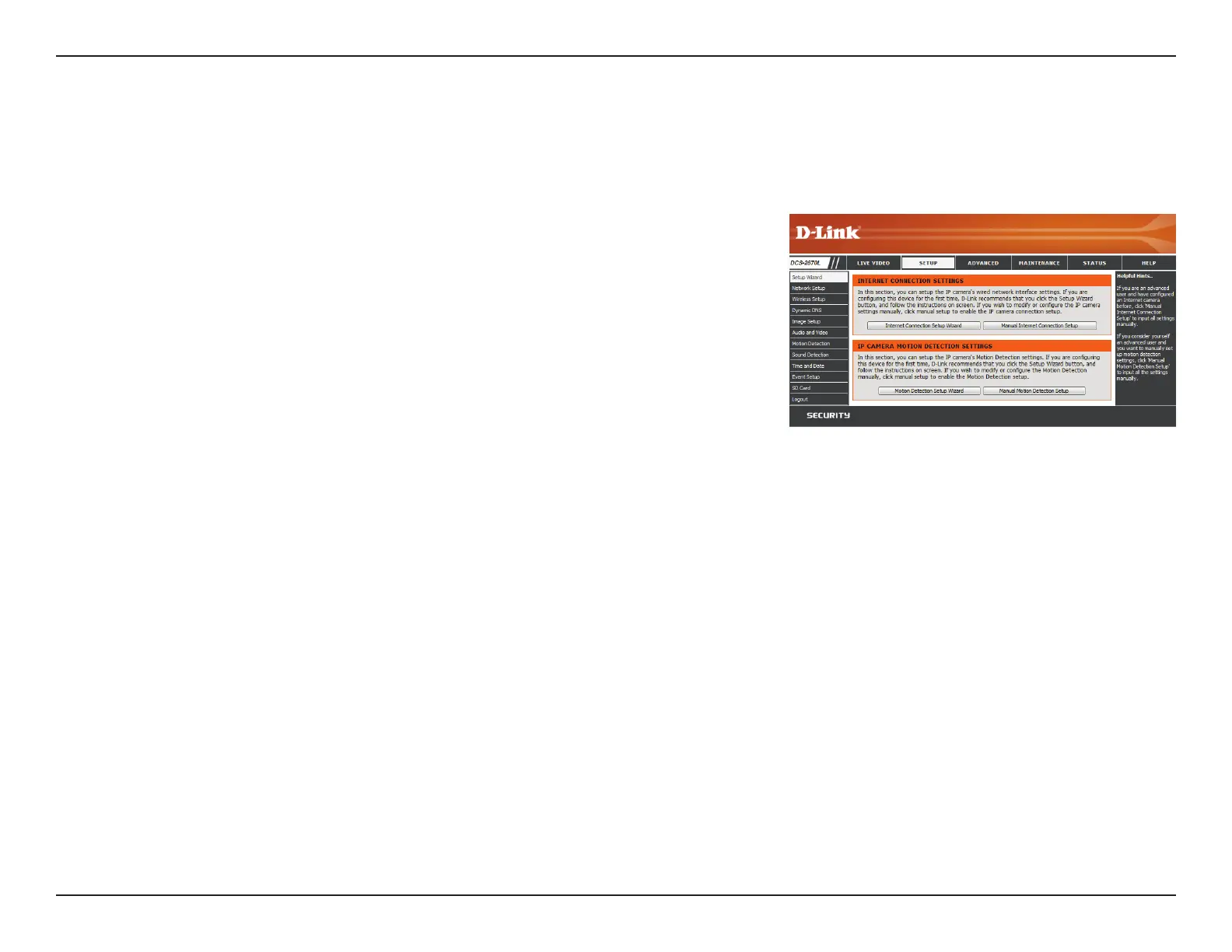

Setup Wizard
You may choose to congure your camera's Internet connection by
using the Internet Connection Setup Wizard that includes step-by-step
instructions. Please refer to Internet Connection Setup Wizard on
page 22 for more details.
If you would rather manually set up the camera's Internet connection,
you can refer to Network Setup on page 26 which provides more
details on the information required.
You may choose to congure motion detection by using the Motion
Detection Setup Wizard that includes step-by-step instructions. Please
refer to Motion Detection Setup Wizard on page 24 for more
details.
If you would rather manually set up the camera’s motion detection
features, you can refer to Motion Detection on page 34 which
provides more details on the information required.
Internet
Connection Setup
Wizard:
Manual Internet
Connection Setup:
Motion Detection
Setup Wizard:
Manual Motion
Detection Setup:
This section allows you to begin setup wizards which will guide you through the process of getting your camera’s various functions congured. If
you want to adjust the settings manually, you may skip the wizards and adjust settings manually as needed.

D-Link DCS-2670L Specifications

General

Type	IP security camera
Certification	CE, CE LVD, FCC, ICES, RCM
Day/night mode	Yes
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Night vision distance	4.57 m
Cables included	AC, LAN (RJ-45)
Number of cameras	1
Sensor type	CMOS
Optical sensor size	1/2.7 \
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264
Supported graphics resolutions	640 x 360, 800 x 448, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Focus adjustment	2.0
Fixed focal length	1.5 mm
Maximum aperture number	2
Closest focusing distance	0.3 m
Minimum illumination	0 lx
Form factor	Dome
Mounting type	Ceiling
Product color	Silver, White
LED indicators	Status
Protection features	Waterproof
International Protection (IP) code	IP65
Interface	RJ-45/WLAN
Audio formats supported	AAC, G.711
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Wi-Fi data rate (max)	300 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv6, IPv4, ARP, TCP, UDP, ICMP, DHCP client, NTP client (D-Link), DNS client, DDNS client (D-Link), SMTP client,
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
Maximum memory card size	128 GB
Security algorithms	WPA, WPA2
AC input voltage	100 - 240 V
DC output current	1.2 A
DC output voltage	5
Power source type	AC
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)	-
Power consumption (typical)	5 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-25 - 45 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1325 mm
Pallet height (sea)	2039 mm
Pallet gross weight (air)	316000 g
Pallet gross weight (sea)	492400 g
Quantity per pallet (air)	300 pc(s)
Quantity per pallet (sea)	480 pc(s)
Shipping (inner) case width	294 mm
Shipping (inner) case height	238 mm
Shipping (inner) case length	610 mm
Shipping (inner) case weight	9800 g
Shipping (inner) case net weight	9000 g
Number of cartons per pallet (air)	30 pc(s)
Number of cartons per pallet (sea)	48 pc(s)
Quantity per shipping (inner) case	10 pc(s)

Weight and Dimensions

Depth	102.1 mm
Width	75.7 mm
Height	89.5 mm
Weight	360 g
Package depth	208 mm
Package width	135 mm
Package height	115 mm
Package weight	900 g
