33D-Link DCS-2670L User Manual
Section 3: Conguration

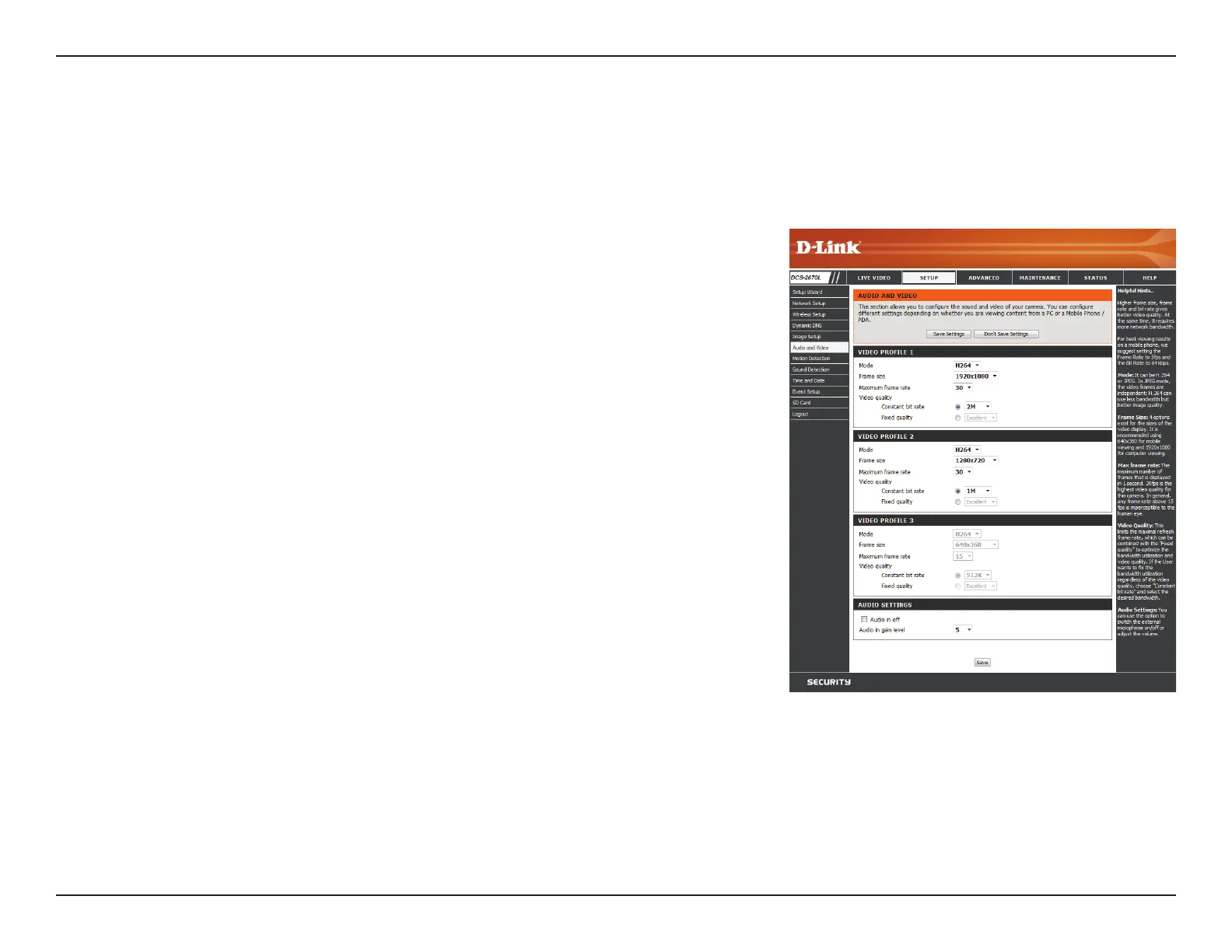

Audio and Video
You may congure up to three video proles with dierent settings for your camera for your computer and mobile displays. This allows for better
usability when using dierent devices for management. After making your changes, click the Save Settings button for them to take eect.
Mode:
Frame Size:
Maximum Frame
Rate:
Video Quality:
Constant Bit Rate:
Fixed Quality:
Audio In O:
Audio In Gain Level:
Set the video codec to be used to JPEG or H.264.
Frame size determines the total capture resolution the camera will use
when viewing and recording video. Higher resolutions provide better
video quality, but will require more bandwidth.
A higher frame rate provides smoother motion for videos, and requires
more bandwidth. Lower frame rates will result in stuttering motion,
and require less bandwidth. Please note that if 1920 x 1080 is selected
as your frame size, your maximum frame rate will be 30 frames per
second.
This limits the maximum frame rate, which can be combined with the
Fixed quality option to optimize the bandwidth utilization and video
quality. If xed bandwidth utilization is desired regardless of the video
quality, choose Constant bit rate and select the desired bandwidth.
The bits per second (BPS) will aect the bit rate of the video recorded
by the camera. Higher bit rates result in higher video quality.
Select the image quality level for the camera to try to maintain. High
quality levels will result in increased bit rates.
Checking this will mute the audio picked up by the built-in microphone.
Specify how much gain to add to the audio picked up by the built-in
microphone.
