Section 2 - Installation
Manual Hardware Installation
If you wish to set up your camera without using the Camera Setup Wizard, please follow these steps.
Note: In order to use the mydlink features of this product, you will need to go through the Camera Setup Wizard or Zero
Conguration Setup.
Optional: Use WPS to Connect Wirelessly
You can use WPS to connect your camera to your network wirelessly. For more
information, refer to WPS - Push Button Setup on page 22. If your router
does not support WPS, you will still be able to set up your camera’s wireless
settings in the camera’s web interface.

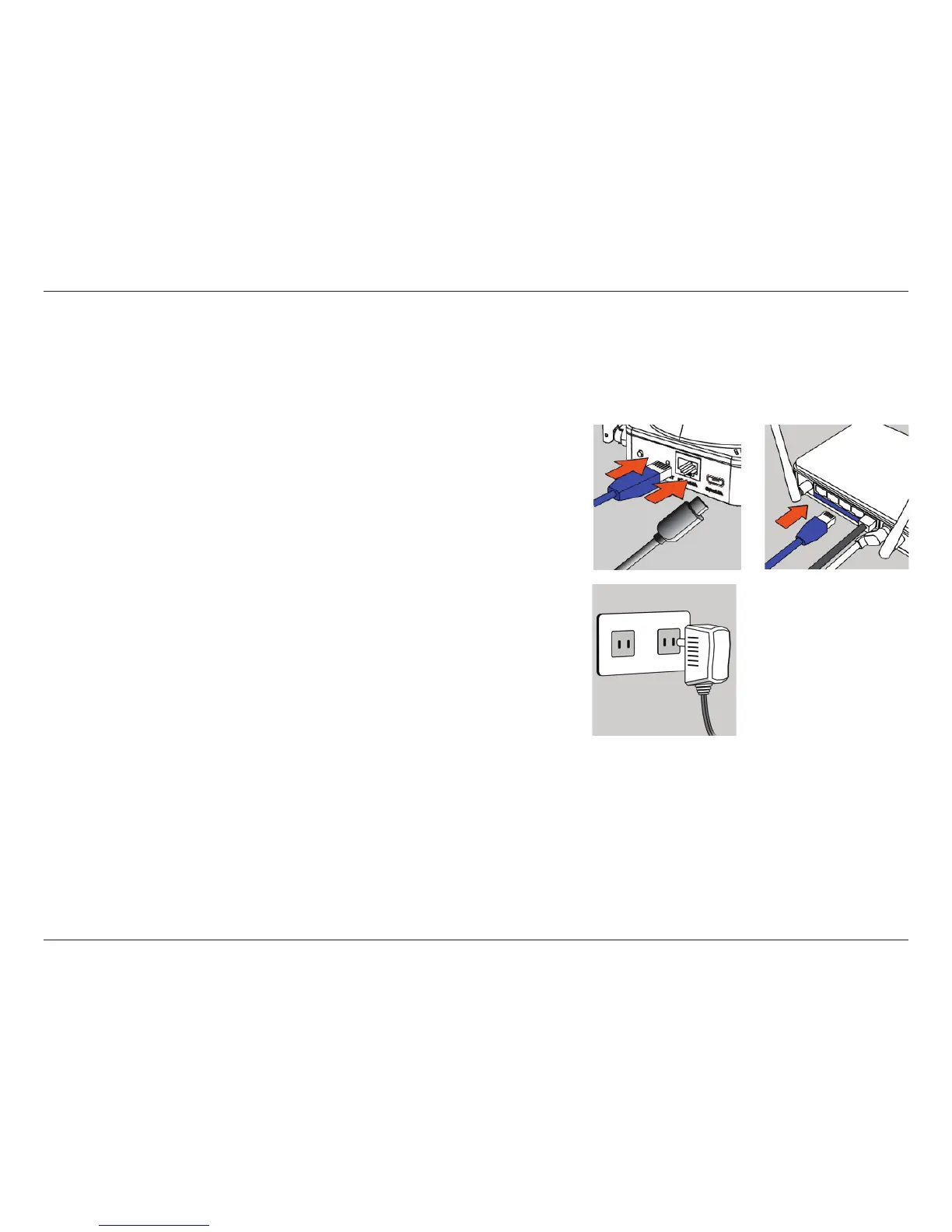

Connect the Ethernet Cable and the Micro-USB Plug
Use the included Ethernet cable and plug it into the camera. Plug the other
end into an available LAN port on your router. Plug one end of the included
Micro-USB power adapter to the back of the camera.
Congure Your Camera
Refer to Conguration on page 26 for information on how to congure your
camera.
Plug the Micro-USB Power Adapter to a Wall Outlet
Plug the other end of the Micro-USB power adapter to a wall outlet to power
on your camera.

D-Link DCS-5000L Specifications

General

Type	IP security camera
PTZ control	Yes
Certification	• CE • CE LVD • FCC • C-Tick
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Interface	RJ-45/WLAN
Ethernet LAN (RJ-45) ports	1
Audio formats supported	PCM
Form factor	-
Product color	Black, White
AC input voltage	100-240 V
DC output current	1.5 A
DC output voltage	5
AC input frequency	50 - 60 Hz
Full HD	No
Maximum resolution	640 x 480 pixels
Image quality adjustment	Brightness, Contrast, Saturation
Video compression formats	M-JPEG, MPEG
Supported graphics resolutions	160 x 112, 320 x 240, 640 x 480 (VGA)
Pan range	-170 - 170 °
Tilt angle range	-25 - 95 °
Camera shutter speed	1/15 - 1/15000 s
Minimum illumination	0 lx
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 85 %
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Mobile operating systems supported	Android, iOS
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64
Sensor type	CMOS
Optical sensor size	1/5 \
Fixed focal length	2.2 mm
Maximum aperture number	2.4
Security algorithms	HTTPS, WEP, WPA, WPA-PSK, WPA2, WPS
LED type	IR
Night vision distance	8 m
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet interface type	Fast Ethernet
Supported network protocols	IPV4, ARP, TCP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP Server, PPPoE, UPnP Port Forwarding, LLTD

Weight and Dimensions

Depth	109.1 mm
Width	116.4 mm
Height	133.6 mm
Weight	292.8 g
Height (with stand)	230 mm
