D-Link DCS-5000L User Manual

27D-Link DCS-5000L User Manual 27
Section 3 - Conguration
Live Video
Video
Compression
Format:
Pan/Tilt
Controls:
Go To:
Pan Step:
Tilt Step:
Language:
Zoom:
Click the MJPEG radio button to choose the format stream
to view.
Click on the directional arrows on the pan/tilt wheel to
manually control the pan and tilt functions of the camera.
At any time, you can click the home button in the center of
the wheel to return the camera to its home position.
Select one of the preset locations from the drop-down
menu to move the camera to that position. Preset positions
can be set by going to the Camera Control section of the
Setup menu.
Select the increment of horizontal movement for each press
of a pan (up/down)arrow on the pan/tilt wheel.
Select the increment of vertical movement for each press
of a tilt (left/right) arrow on the pan/tilt wheel.
You can select the desired language for the web interface
from this drop-down menu.
Click on these buttons to adjust the level of digital zoom
applied to the image.

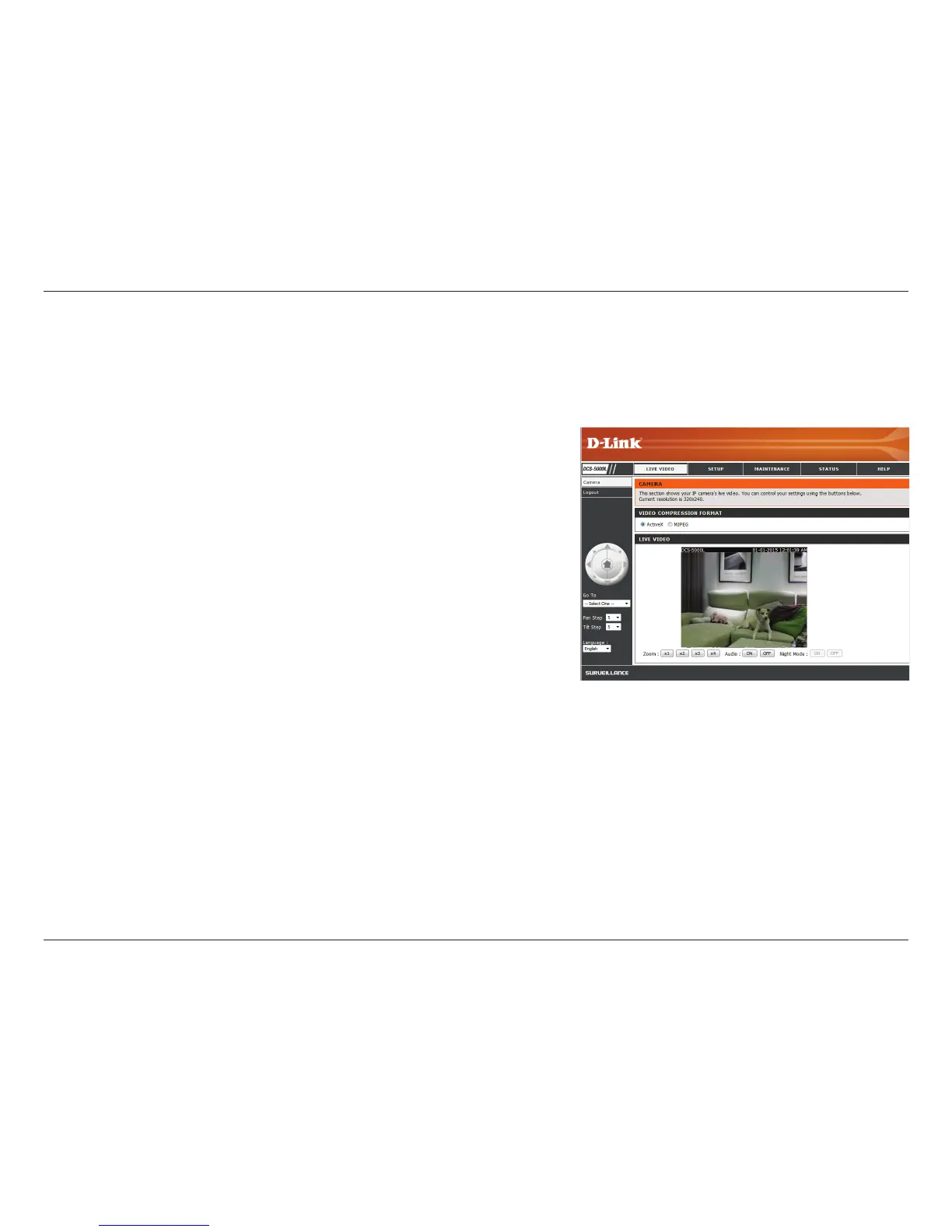

The Live Video screen shows you the live video feed from your camera. Click on ActiveX or Java to enable live streaming. You
may need to install the selected plug-in for your browser. If a pop-up asks for permission to run the plug-in, click to allow it.
For information on how to congure your Live Video streams, refer to Video on page 37.

D-Link DCS-5000L Specifications

General

Type	IP security camera
PTZ control	Yes
Certification	• CE • CE LVD • FCC • C-Tick
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Interface	RJ-45/WLAN
Ethernet LAN (RJ-45) ports	1
Audio formats supported	PCM
Form factor	-
Product color	Black, White
AC input voltage	100-240 V
DC output current	1.5 A
DC output voltage	5
AC input frequency	50 - 60 Hz
Full HD	No
Maximum resolution	640 x 480 pixels
Image quality adjustment	Brightness, Contrast, Saturation
Video compression formats	M-JPEG, MPEG
Supported graphics resolutions	160 x 112, 320 x 240, 640 x 480 (VGA)
Pan range	-170 - 170 °
Tilt angle range	-25 - 95 °
Camera shutter speed	1/15 - 1/15000 s
Minimum illumination	0 lx
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 85 %
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Mobile operating systems supported	Android, iOS
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64
Sensor type	CMOS
Optical sensor size	1/5 \
Fixed focal length	2.2 mm
Maximum aperture number	2.4
Security algorithms	HTTPS, WEP, WPA, WPA-PSK, WPA2, WPS
LED type	IR
Night vision distance	8 m
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet interface type	Fast Ethernet
Supported network protocols	IPV4, ARP, TCP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP Server, PPPoE, UPnP Port Forwarding, LLTD

Weight and Dimensions

Depth	109.1 mm
Width	116.4 mm
Height	133.6 mm
Weight	292.8 g
Height (with stand)	230 mm
