38D-Link DCS-5222L User Manual
Section 4 - Conguration

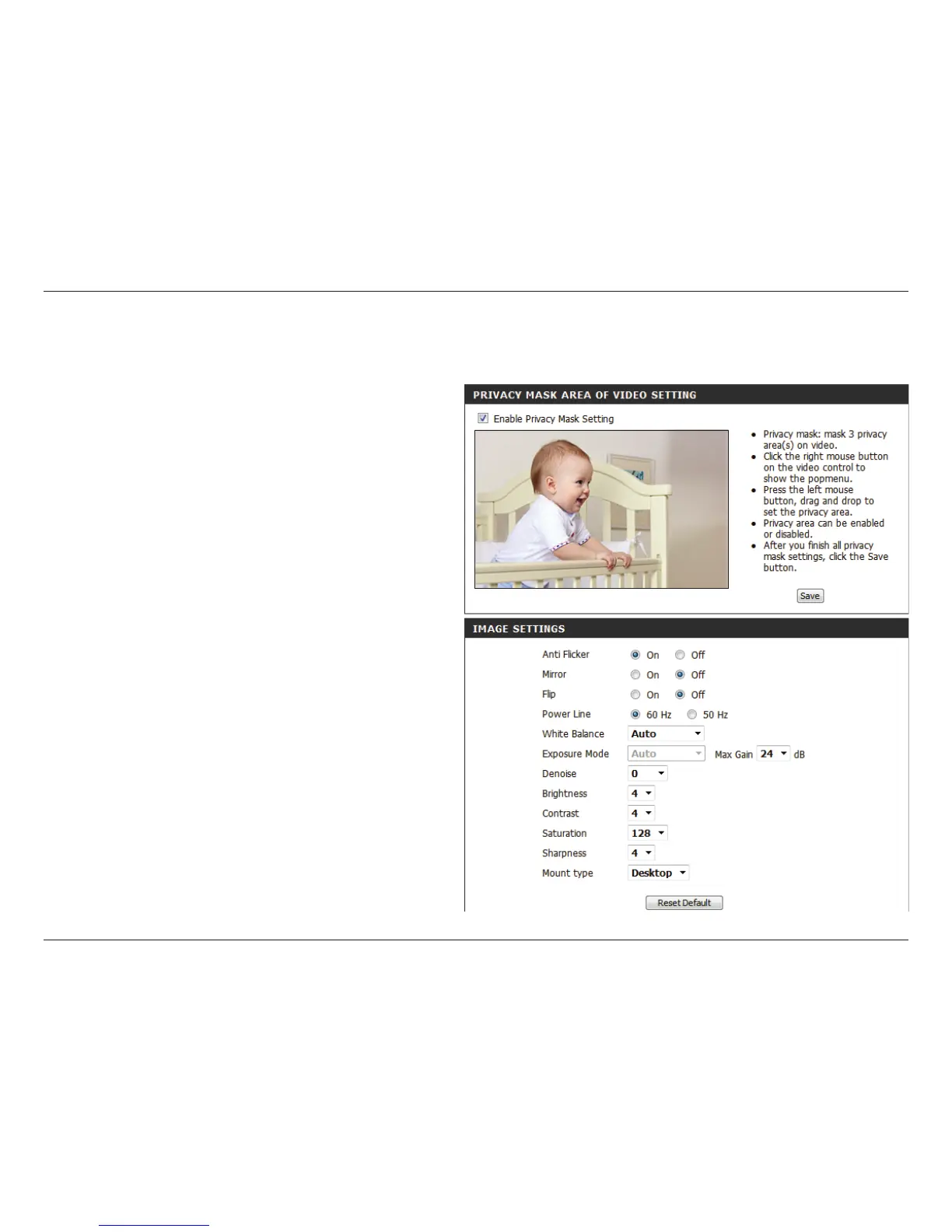

This section allows you to adjust the image and sensor settings for your camera.
Image Setup
The Privacy Mask setting allows you to specify 3
rectangular areas on the camera’s image to be
blocked/excluded from recordings and snapshots.
You may click and drag the mouse cursor over the
camera image to draw a mask area. Right click on
the camera image to bring up the following menu
options:
Disable All: Disables all mask areas
Enable All: Enables all mask areas
Reset All: Clears all mask areas.
If the video ickers, try enabling this setting.
This will ip the image horizontally.
This will ip the image vertically.
Select the frequency used by your power lines to
avoid interference or distortion.
Use the drop-down menu to change the white
balance settings to help balance colors in dierent
lighting environments. You can choose from Auto,
Outdoor, Indoor, Fluorescent, and Push Hold.
Enable Privacy
Mask:
Anti Flicker:
Mirror:
Flip:
Power Line:
White Balance:
