D-Link DCS-936L User Manual

23D-Link DCS-936L User Manual

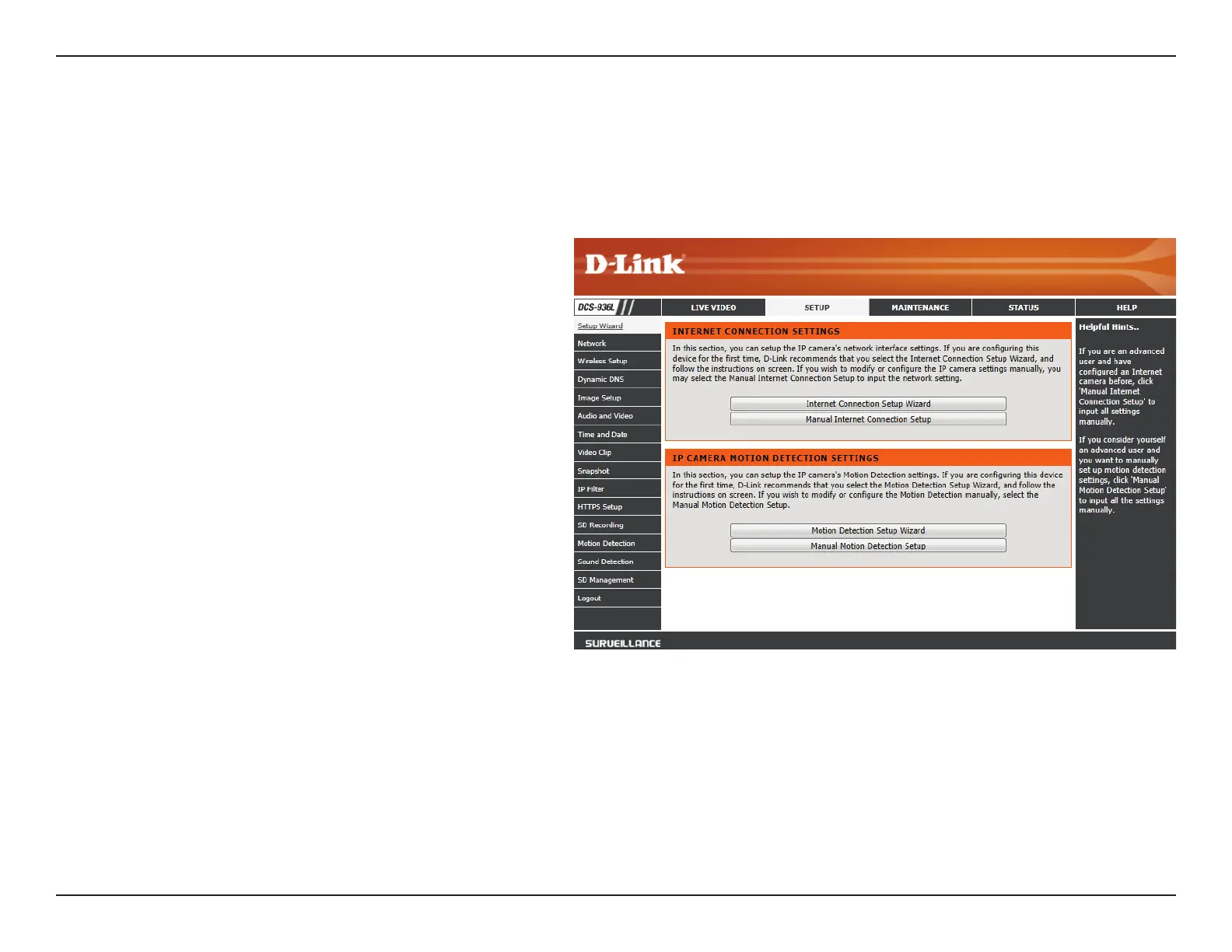

Section 3 - Conguration
Setup
Wizard
You may choose to congure your network by
using the Internet Connection Setup Wizard
that includes step-by-step instructions.
Please refer to Internet Connection Setup
Wizard on page 24 for more details.
If you would rather manually set up the
camera Internet connection, you can refer to
Network on page 31 which provides more
details on the information required.
You may choose to congure motion
detection by using the Motion Detection
Setup Wizard that includes step-by-step
instructions. Please refer to Motion Detection
Setup Wizard on page 27 for more details.
If you would rather manually set up the
camera’s motion detection features, you
can refer to Motion Detection on page
45 which provides more details on the
information required.
Internet
Connection
Setup Wizard:
Manual
Internet
Connection
Setup:
Motion
Detection
Setup Wizard:
Manual Motion
Detection
Setup:
This section allows you to begin setup wizards which will guide you through the process of getting your camera’s various functions congured. If
you comfortable with adjusting the settings manually, you may skip the wizards and adjust settings manually as needed.

D-Link DCS-936L Specifications

General

Total megapixels	1 MP
Maximum resolution	1280 x 720 pixels
Time stamp overlay	Yes
Supported video modes	720p
Image quality adjustment	Brightness, Colour depth, Contrast, Saturation, Sharpness
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	320 x 176, 640 x 352, 1280 x 720 (HD 720)
Sensor type	CMOS
Optical sensor size	1/4 \
Interface	Wi-Fi
Form factor	Cube
Mounting type	Ceiling/wall
Product color	Black
LED indicators	Power, WLAN
Type	IP security camera
Certification	CE, CE LVD, FCC B, ICES, C-Tick
Placement supported	Indoor
Connectivity technology	Wired
Ethernet LAN	No
Streaming method	Multicast
Supported network protocols	IPv4, ARP, TCP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, PPPoE, UPnP, RTP, RTSP, RTCP, HTTP, Bonjour
LED type	IR
Night vision distance	4.8 m
Minimum illumination	0 lx
Audio formats supported	ADPCM, PCM
Digital zoom	4 x
Fixed focal length	2.45 mm
Maximum aperture number	2.4
Compatible memory cards	MicroSD (TransFlash)
Password protection type	User
Mobile operating systems supported	Android, iOS
DC output current	1.2 A
DC output voltage	5
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 85 %
Number of cameras	1
Pallet width	1100 mm
Pallet length	1200 mm
Pallet height (air)	1994 mm
Pallet gross weight (air)	369950 g
Quantity per pallet (air)	825 pc(s)
Shipping (inner) case width	218 mm
Shipping (inner) case height	169 mm
Shipping (inner) case length	338 mm
Shipping (inner) case weight	2130 g
Shipping (inner) case net weight	1070 g
Number of cartons per pallet (air)	165 pc(s)
Harmonized System (HS) code	85258900
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	65.9 mm
Width	92.1 mm
Height	90.7 mm
Weight	140 g
Package depth	135 mm
Package width	63 mm
Package height	200 mm
Package weight	392.6 g
