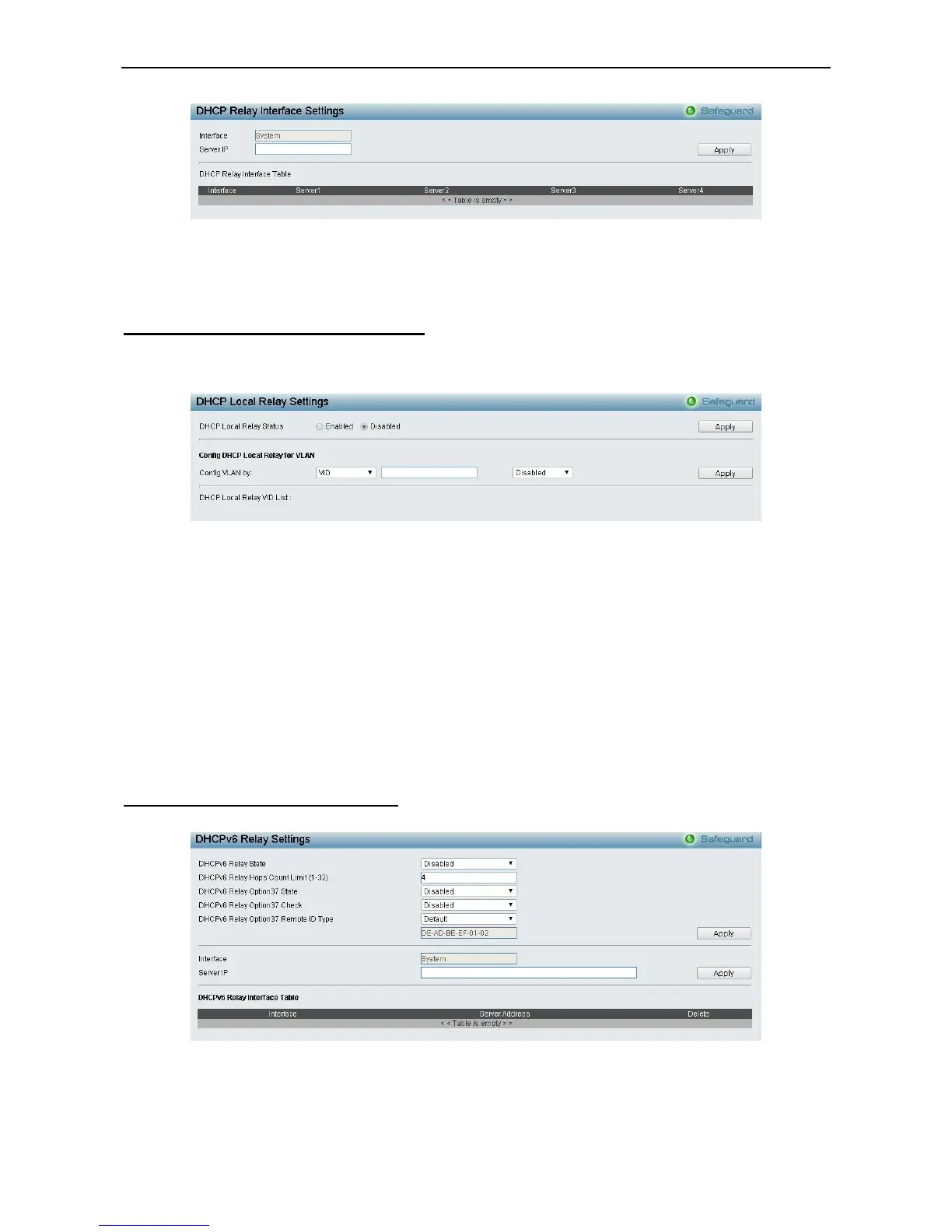

Figure 4.71 - Configuration > DHCP Relay > DHCP Relay Interface Settings
Interface: The IP interface on the Switch that will be connected directly to the server.
Server IP: Enter the IP address of the DHCP server. Up to four server IPs can be configured per IP Interface.
Configuration > DHCP Local Relay Settings
From this page you can configure DHCP Local Relay. DHCP broadcasts are trapped by the switch CPU, and
replacement broadcasts are forwarded with Option 82. Replies from the DHCP servers are trapped by the
switch CPU, the Option 82 is removed and the reply is sent to the DHCP Client.
Figure4.72 - Configuration > DHCP Local Relay Settings
DHCP Local Relay Status: Specifies whether DHCP Local Relay is enabled on the device.
Enabled – Enables DHCP Local Relay on the device.
Disabled – Disables DHCP Local Relay on the device. This is the default value.
Config VLAN by: Configure the VLAN by VID or VLAN Name of drop-down menu.
State: Specifies whether DHCP Local Relay is enabled on the VLAN.
Enabled – Enables DHCP Local Relay on the VLAN.
Disabled – Disables DHCP Local Relay on the VLAN.
DHCP Local Relay VID List: Displays the list of VLANs on which DHCP Local Relay has been defined.
Click Apply to implement changes made.
Configuration > DHCPv6 Relay Settings
The DHCPv6 Relay Settings page allows user to configure the DHCPv6 settings.
Figure4.73 - Configuration > DHCPv6 Relay Settings
DHCPv6 Relay Status: Specifies whether DHCPv6 Relay is enabled on the device.
Enabled – Enables DHCPv6 Relay on the device.
Disabled – Disables DHCPv6 Relay on the device. This is the default value.
